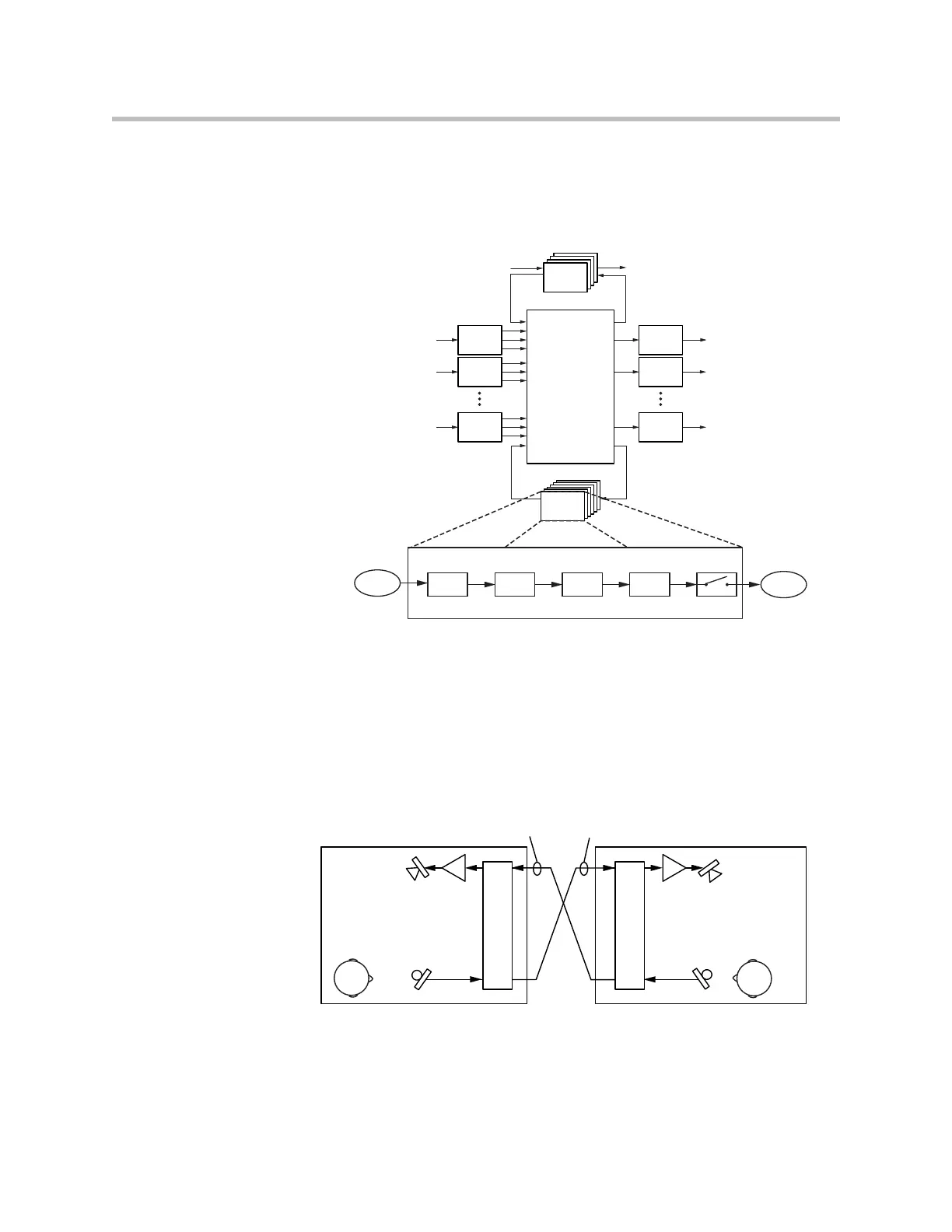

As shown in the following figure, each submix signal from the matrix can be
processed with dynamics processing, parametric equalization, a fader, and up
to 1000 milliseconds of delay. Each SoundStructure device has as many sub-
mixes as there are inputs.
C-Series Acoustic Echo Canceller References
In conferencing applications, an acoustic echo canceller removes the remote
site's audio that is played in the local room from being picked up by the local
microphones and sent back to the remote participants. The AEC
Local Room
in the
following figure removes the acoustic echo of the remote talker so it is not sent
back to the remote talker.
Acoustic echo cancellation processing is only required on the inputs that have
microphone audio connected that will “hear” both the local talkers’ speech
and the acoustic echo of the remote talkers’ speech.
1
2
N
1
2
N
Telco
Processing
Telco
Processing
Telco
Processing
Telco
Processing
Matrix
Processing
SubMix
Submix
Processsing
Output
Processing
Output
Processing
Output
Processing
Input
Processing
Input
Processing
Input
Processing
Submix Input
from Matrix
Submix output
to Matrix
Dynamics
Processing
Parametric
Equalization
Fader Delay
Mute
Submix Processing
Local Room
Remote Room
A
mp
A
mp
AEC
Remote Room
AEC
Local Room
AEC reference for remote roomAEC reference for local room
