QSC LA108 User Manual

13
QSC RapidDeploy
™
Rigging System

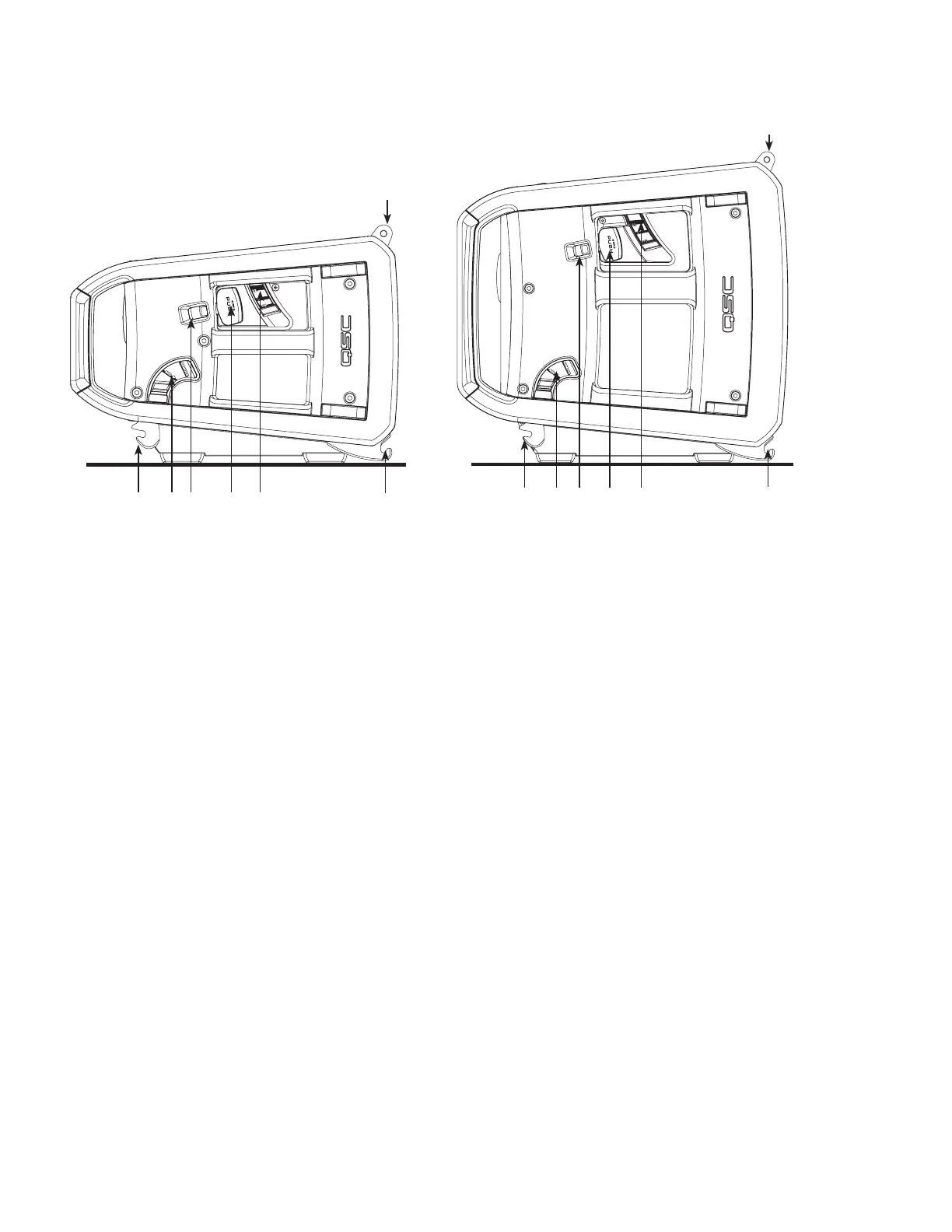

Loudspeaker Attachment Points
1. Front Strikes attach to Front Hooks of the loudspeaker or ground stack above it.
2. Front Hooks attach to Front Strikes of the loudspeaker or ground stack adapter below it.
3. Rear Hooks attach loudspeaker at the rear. They are the locking points once two or more enclosures are arrayed together or
ground stacked.
4. The Locking Lever has three positions:
• Up: Release loudspeaker from the array
• Middle: Prepare loudspeaker to be secured
• Down: Lock attached loudspeaker in place
Loudspeaker Angle Controls
5. The Angle Lever Reset will release a depressed Angle Lever without adjusting the Angle Bar.
6. The Angle Lever prepares the Angle Bar (7) to move to the next available angle. The Angle Lever must return to the full outward
position after angle adjustment. An internal pin locks the Angle Bar when the lever is in the full outward position. If necessary, move
the Angle Bar, and/or push the Angle Lever Reset (5) to set the Angle Bar position.
7. The Angle Bar Lift offers manual lifting of the Angle Bar and visual representation of the splay angle setting
(Up: 1.5°, Middle: 6°, Down: 12°). Note that the Angle Bar is raised in the LA108 and lowered in the LA112 in the images above.
—Figure3—
1
23 4 6 75
LA108
—Figure4—
1
2
3 4 5 6 7
LA112

QSC LA108 Specifications

General

Amplifier Power	N/A (passive)
Frequency Response	65 Hz – 20 kHz
Configuration	Passive
Enclosure Material	Birch plywood
Power Handling	1600 W (Peak)
Impedance	16 ohms
