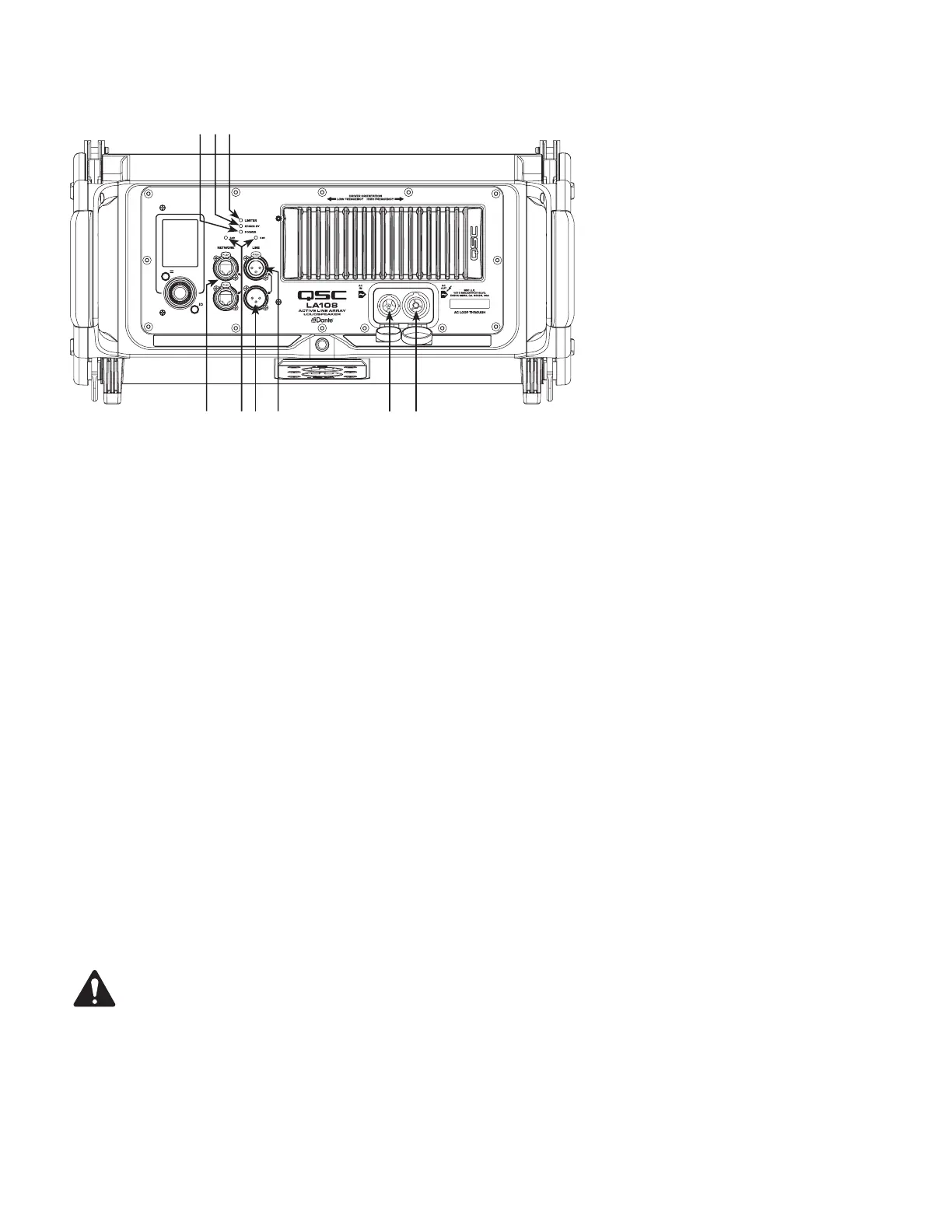

Rear Panel Connections
—Figure65—
987
261 3 54
1. Dual-switch EtherCON connections to QSC SysNav
™
and/or Dante
®
-enabled system
2. Parallel (Thru) balanced analog output connection of the balanced input
3. Balanced analog input connection for line level sources
4. PowerCON TRUE1 locking AC Power INLET
5. PowerCON TRUE1 locking AC Power OUTLET
6. Indicates that signal is present on the associated input
7. Indicates that the loudspeaker is powered on
8. Indicates Standby Mode
9. Indicates that the loudspeaker DSP is limiting
System Power
The LA108 and LA112 loudspeakers' electronic modules do not include a power switch. This is to prevent suspending an array with a
loudspeaker's power switch inadvertently bumped off, or left in the off position. To power a loudspeaker on/off, either switch the AC
supply at the plug source, or twist the AC POWER-IN connector clockwise or counter-clockwise to power each loudspeaker on/off
(ifAC power is connected).
For safety reasons, it is important to follow the proper power cable connection/disconnection sequence to power on or off
loudspeakers.
Proper power on/off sequencing can help to prevent undesirable sounds from being introduced into the loudspeaker system (pops,
clicks, thumps). Always follow the rule that loudspeakers are “last on, first off.”
WARNING!: The LA108 and LA112 loudspeakers employ a universal power supply, capable of operating the system
with input AC power voltages ranging from 100 – 240 VAC at 50 – 60 Hz. Make sure to only use the power cable that is
appropriate for the deployment location.

QSC LA108 Specifications

General

Amplifier Power	N/A (passive)
Frequency Response	65 Hz – 20 kHz
Configuration	Passive
Enclosure Material	Birch plywood
Power Handling	1600 W (Peak)
Impedance	16 ohms
