QSC LA108 User Manual

20
LA112 Loudspeaker
Two (2) LA112 loudspeakers can be safely pole-mounted using a QSC threaded subwoofer pole over:
a. one (1) LS118/KS118 subwoofer when the subwoofer is upright, or
b. two (2) LS118/KS212C when the subwoofers are rotated on their side.
In the above configurations, the subwoofer pole should be no longer than 66 cm (26 inches). The QSC SP-26 accessory (sold
separately) is suitable for this task.
If one (1) LA112 loudspeaker is pole-mounted using a QSC threaded subwoofer pole, then the subwoofer pole (QSC SP-36 accessory
sold separately) length can be safely increased to 91 cm (36 inches) in the configurations shown below.
WARNING!: Longer pole lengths should not be used unless the subwoofer is securely attached to the ground with
additional straps or hardware to prevent tipping hazard.

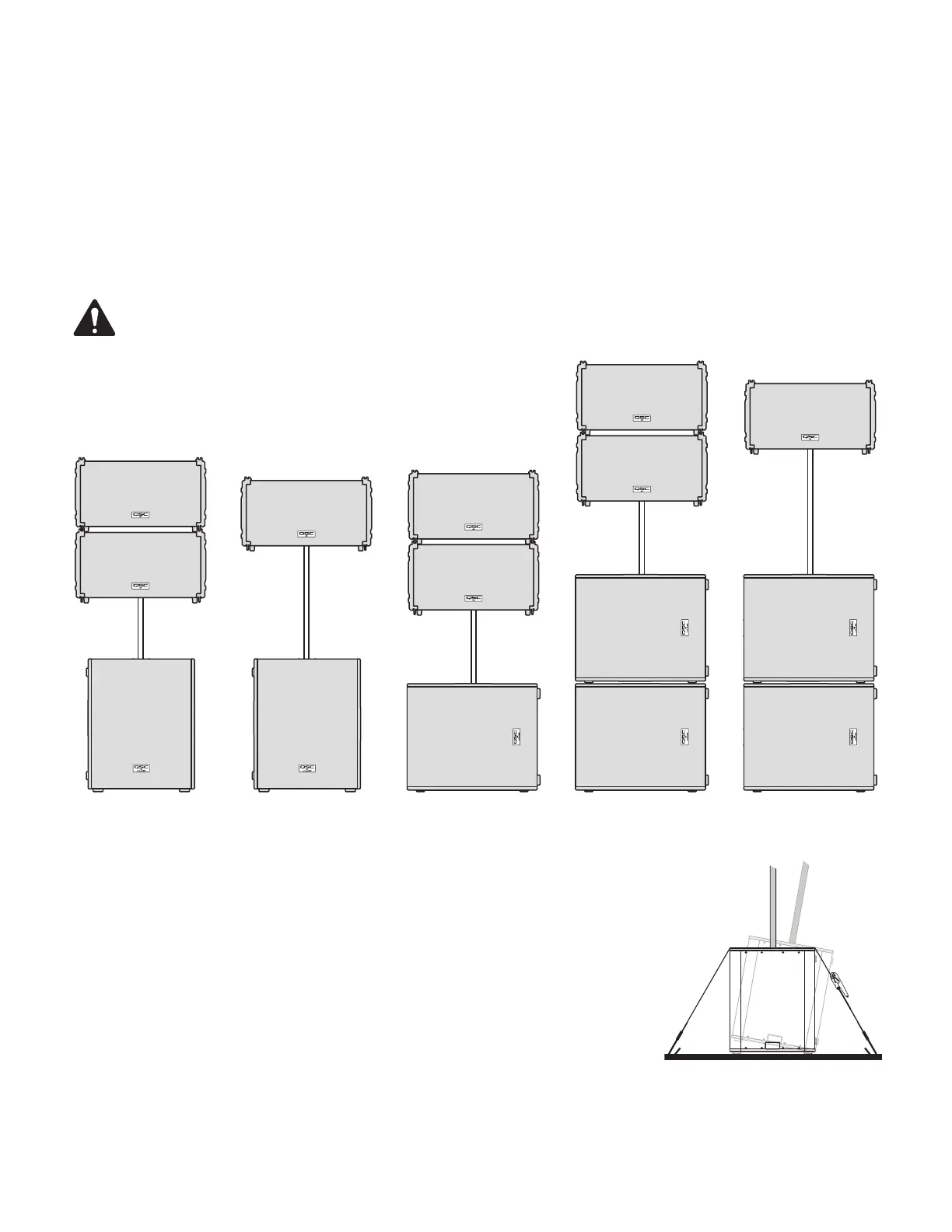

—Figure18—
SP36
SP36
SP26
SP26
SP26
NOTE: The above graphic illustrates the maximum safe deployment of each configuration given optimal environmental
factors.
WARNING!: Please take additional care to secure or stabilize your equipment in
case of uneven ground, vibrating surfaces, winds, or any other scenario that could
create a tipping hazard. (See —Figure19—)
—Figure19—

QSC LA108 Specifications

General

Amplifier Power	N/A (passive)
Frequency Response	65 Hz – 20 kHz
Configuration	Passive
Enclosure Material	Birch plywood
Power Handling	1600 W (Peak)
Impedance	16 ohms
