Pole Mounting a Loudspeaker over a Subwoofer(s)
To deploy a pole mount over a subwoofer(s) with a tilt of 0° or -7.5°, mount the
loudspeaker using the 35 mm pole socket labeled 0° or -7.5° on the bottom of the
loudspeaker.

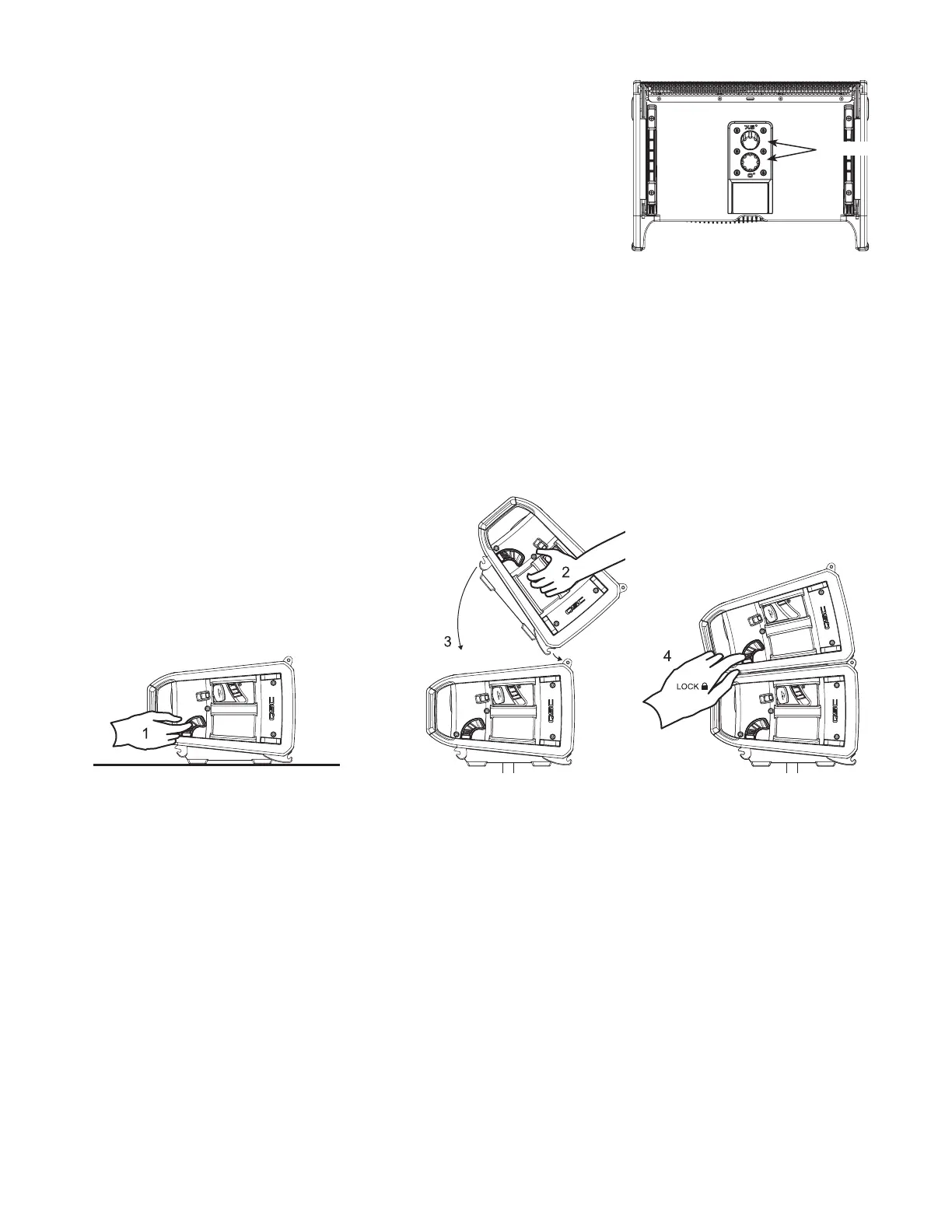

Stacking an Array on a Pole Mount over a Subwoofer(s)
1. After securing the first loudspeaker to the pole, set the Locking Levers on both sides of the new loudspeaker to the middle (ADD+)
position.
2. Hook both Front Strikes of the new loudspeaker onto the Front Hooks of the loudspeaker mounted to the pole.
3. Lower the back side of the loudspeaker until the new loudspeaker connects with the loudspeaker mounted to the pole, making a
click sound.
4. Push Locking Levers down (LOCK) to secure the new loudspeaker on both sides.
5. Repeat steps 1-4, until array is complete.
—Figure21—
—Figure20—
Pole Sockets

QSC LA108 Specifications

General

Amplifier Power	N/A (passive)
Frequency Response	65 Hz – 20 kHz
Configuration	Passive
Enclosure Material	Birch plywood
Power Handling	1600 W (Peak)
Impedance	16 ohms
