Splay Angle Adjustment on a Pole Mount over a Subwoofer(s)

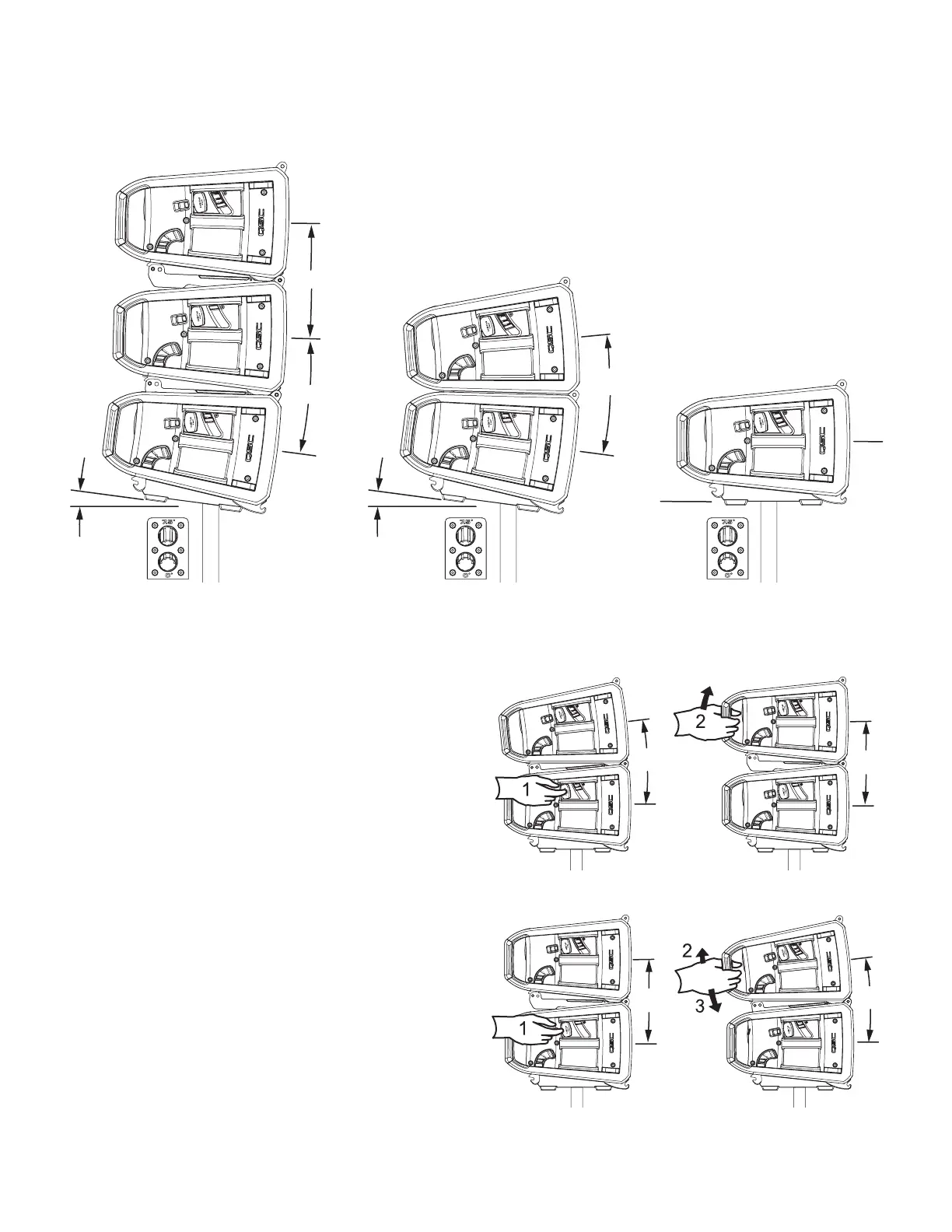

Along with the 0° and -7.5° angle options on a pole mount, splay angle of individual loudspeakers can be adjusted further
to1.5°,6°, and 12°.
0°
7.5°
7
.5°
12°
1.5°
6°
—Figure22—
NOTE: See the section on “Understanding Splay Angles” for further details.
Decreasing Angle
1. Push Angle Lever on both sides all the way in, until they make
a click sound and stay depressed.
2. Lift loudspeaker up into the next angle position, until it makes a
click sound.
Increasing Angle
1. Push Angle Lever on both sides all the way in, until they make
a click sound and stay depressed.
2. Slightly lift loudspeaker weight to release internal pin.
3. Lower loudspeaker into the next angle position, until it makes a
click sound.
1.5°
6°
—Figure23—
1.5°
6°
—Figure24—

QSC LA108 Specifications

General

Amplifier Power	N/A (passive)
Frequency Response	65 Hz – 20 kHz
Configuration	Passive
Enclosure Material	Birch plywood
Power Handling	1600 W (Peak)
Impedance	16 ohms
