QSC LA108 User Manual

33

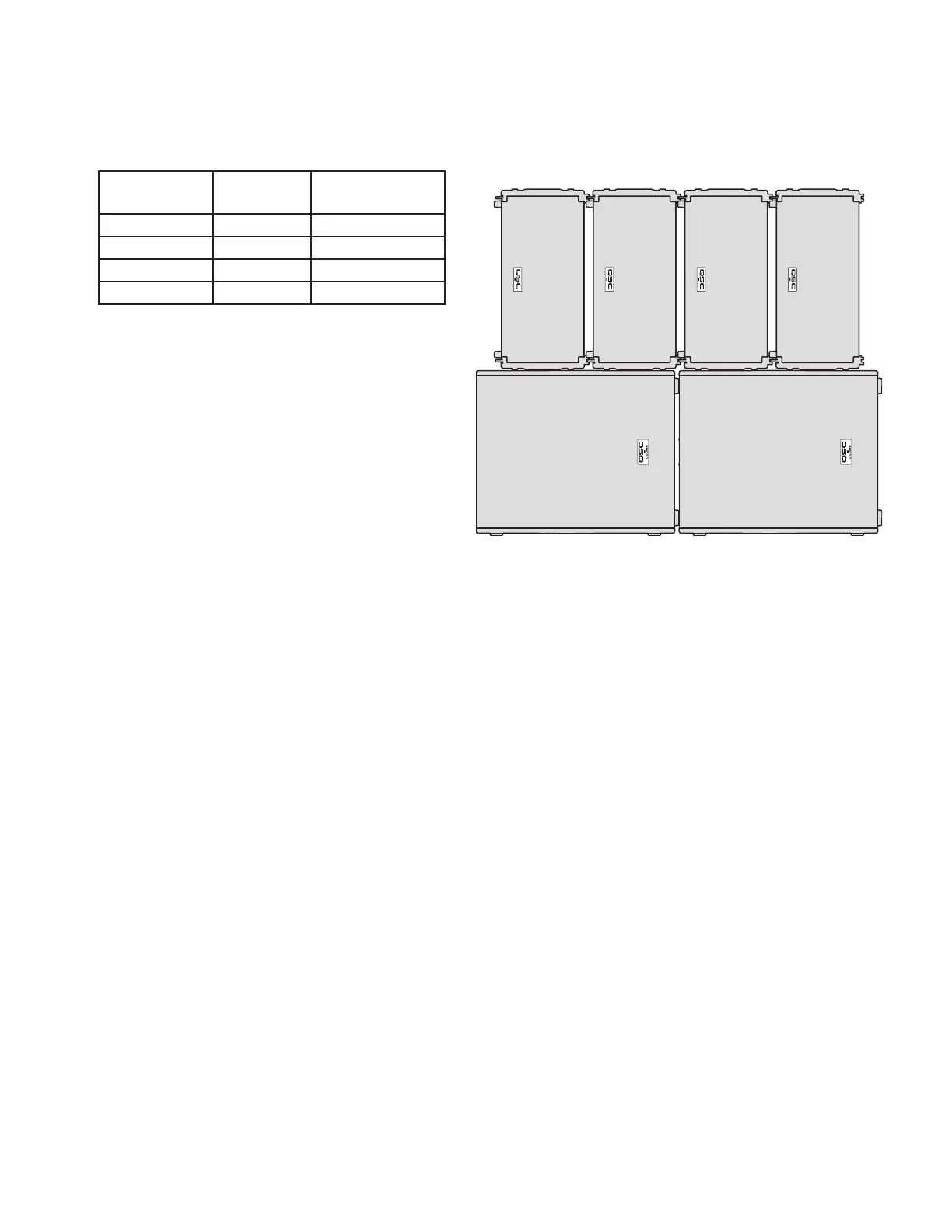

Splay Angle Adjustment for Stacked Horizontal Array
1. Push Angle Levers on the high frequency side of the loudspeakers all the way in, until they make a click sound and stay depressed.
2. Array can be extended or contracted, depending on coverage needs.
Number of
Boxes
Splay Angles Horizontal
Coverage
1 n/a 15 degrees
2 12 27 degrees
3 12 / 12 39 degrees
4 12/12/12 51 degrees
Detaching Loudspeakers from a Stacked Horizontal Array
1. Disengage the rigging mechanisms on the high frequency side of each loudspeaker in the array.
2. Remove loudspeakers one at a time to ensure that no potential damage to the rigging occurs.
—Figure51—

QSC LA108 Specifications

General

Amplifier Power	N/A (passive)
Frequency Response	65 Hz – 20 kHz
Configuration	Passive
Enclosure Material	Birch plywood
Power Handling	1600 W (Peak)
Impedance	16 ohms
