QSC LA108 User Manual

37

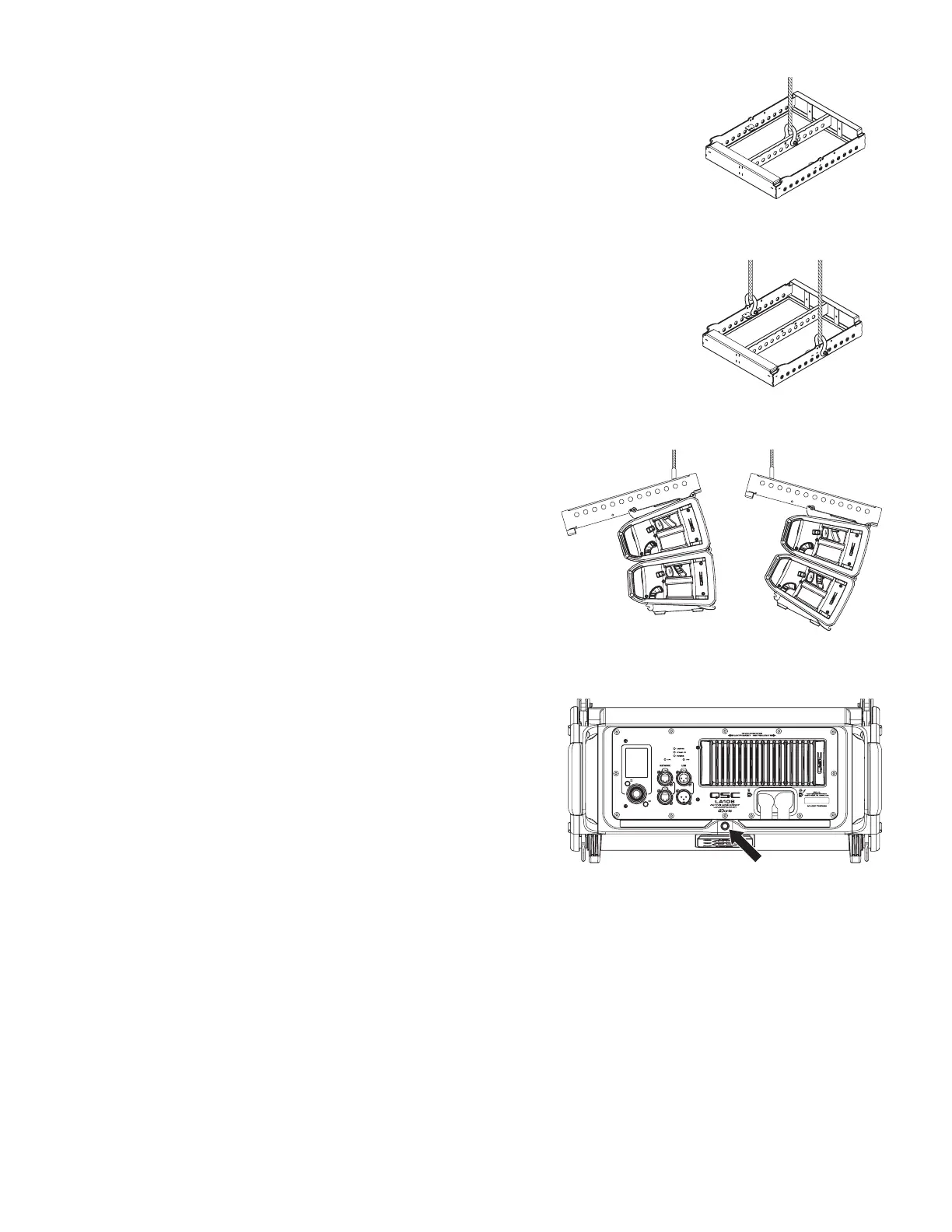

Pick-Point Deployment
Single Pick-Point Deployment
For single pick-point deployments, a 16 mm (5/8 in) shackle (not included) can be attached to the
center rail of the Array Frame at the center-of-gravity (CG) point for the desired angle.
Bridle Deployment
For a bridle deployment with two pick-points, two 16 mm (5/8 in) shackles (not included) can be
attached to the two outer rails of the Array Frame at the CG point for the desired angle.
NOTE: Use EASE Focus 3 (available online) to locate the CG point and desired
vertical angle for specific deployments.
Adjusting the Tilt Angle of the Array on a Pick-Point Deployment
The tilt angle of the array can be adjusted for single pick-point and bridle
deployments by moving the shackle(s) forward or backward on the
ArrayFrame.
Optional Eyebolt
When a downtilt outside of the CG of the Array Frame is needed, an M10
Eyebolt can be used on the rear of the lowest loudspeaker of the array to
provide another pick-point for further support to angle the system.
WARNING!: Do not exceed the Working Load Limits of the M10
Pullback Point as stated in "Maximum Suspended Load" on page
7.
—Figure61—
—Figure62—
—Figure63—
—Figure64—

QSC LA108 Specifications

General

Amplifier Power	N/A (passive)
Frequency Response	65 Hz – 20 kHz
Configuration	Passive
Enclosure Material	Birch plywood
Power Handling	1600 W (Peak)
Impedance	16 ohms
