QSC LA108 User Manual

23
Stacking over a Subwoofer(s)
LA108/LA112 active line array loudspeakers offer the ability to safely stack an array over an LS118/KS118 subwoofer(s) unit using the
appropriate Array Frame and Sub Stack Adapter Kit (not included, sold separately).
WARNING!: When deploying loudspeakers on subwoofers, additional attention should be given to account for
environmental conditions such as level surfaces, vibrations, wind, etc. to deploy the loudspeakers in a stable and safe
manner. Use additional measures to secure the subwoofer (not included) when necessary.

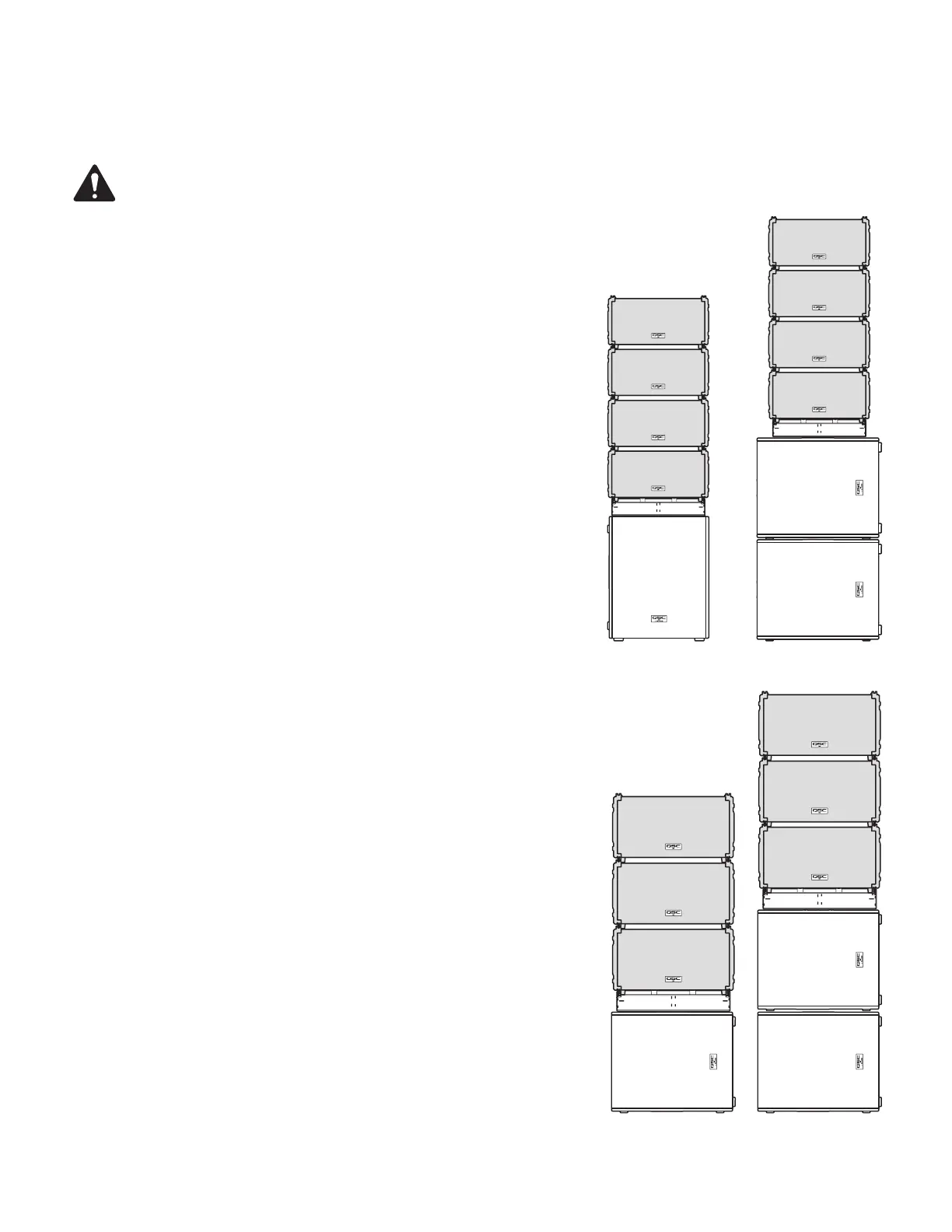

LA108 Loudspeaker
An array of up to four (4) LA108 loudspeakers can be stacked over:
a. One (1) LS118/KS118 subwoofer when the subwoofer is upright, or
b. Two (2) LS118/KS212C subwoofers when rotated on their side.
NOTE: For this ground-stack deployment, the LA108-AF (Array Frame)
and the LA108-KIT-SA (Stack Adapter Kit) accessories are needed (not
included, sold separately). These combined accessories bolt onto the
M20 thread on top of the subwoofer to secure the array. For more details
concerning the assembly of these two accessories, please refer to the
individual accessories' user manuals.
LA112 Loudspeaker
An array of up to three (3) LA112 loudspeakers can be stacked over one (1) or two (2)
LS118/KS212C when the subwoofers are rotated on their side.
NOTE: For this ground-stack deployment, the LA112-AF (Array Frame)
and the LA112-KIT-SA (Stack Adapter Kit) accessories are needed (not
included, sold separately). These combined accessories bolt onto the
M20 thread on top of the subwoofer to secure the array. For more details
concerning the assembly of these two accessories, please refer to the
individual accessories' user manuals.
—Figure25—
—Figure26—

QSC LA108 Specifications

General

Amplifier Power	N/A (passive)
Frequency Response	65 Hz – 20 kHz
Configuration	Passive
Enclosure Material	Birch plywood
Power Handling	1600 W (Peak)
Impedance	16 ohms
