Decreasing Angle

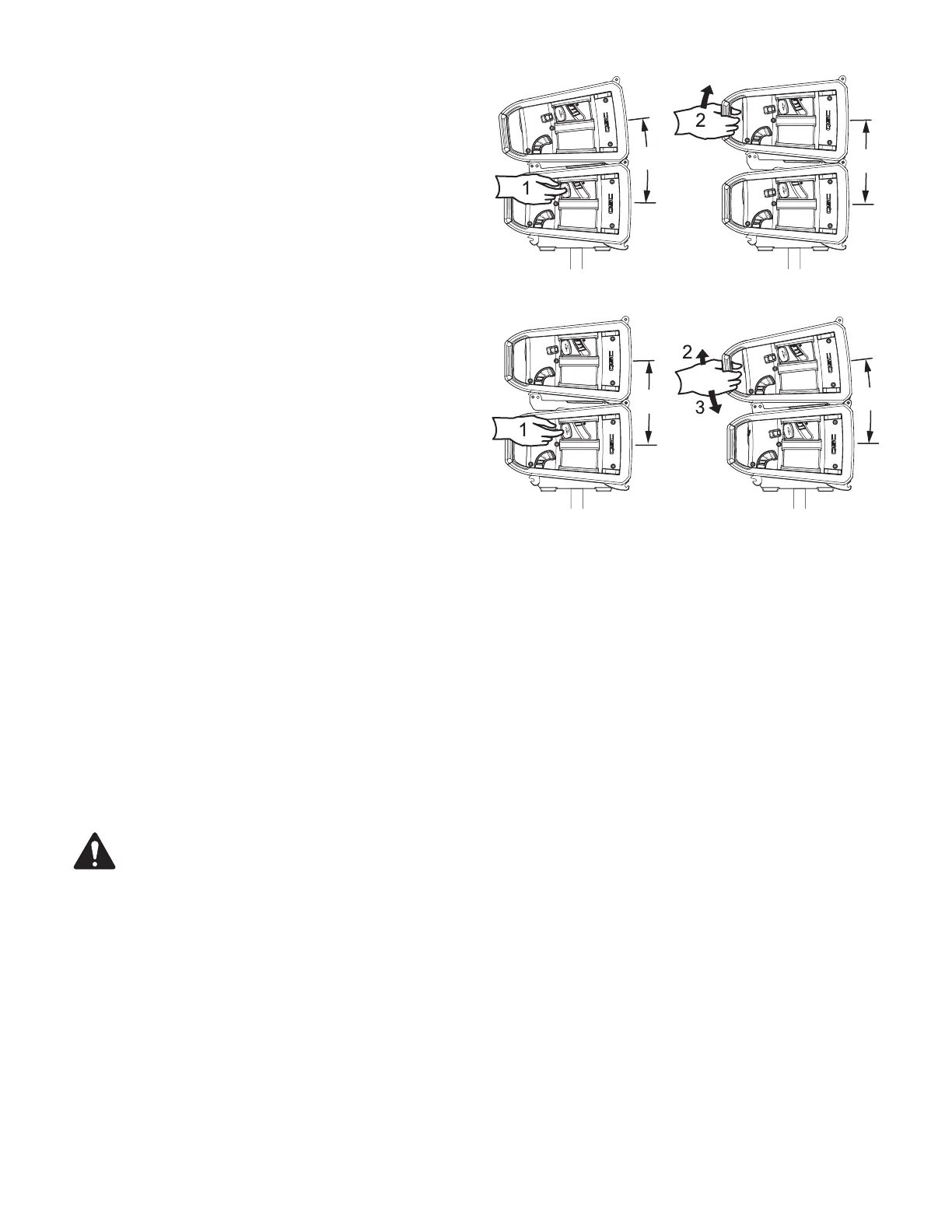

1. Push Angle Lever on both sides all the way in, until they make
a click sound and stay depressed.
2. Lift loudspeaker up into the next angle position, until it makes a
click sound.
Increasing Angle
1. Push Angle Lever on both sides all the way in, until they make
a click sound and stay depressed.
2. Slightly lift loudspeaker weight to release internal pin.
3. Lower loudspeaker into the next angle position, until it makes a
click sound.
Pole Mounted Over a Subwoofer(s)
LA108 Loudspeaker
Three (3) LA108 loudspeakers can be safely pole-mounted using a QSC threaded subwoofer pole over:
a. one (1) LS118/KS118 subwoofer when the subwoofer is upright, or
b. two (2) LS118/KS212C when the subwoofers are rotated on their side.
In the above configurations, the subwoofer pole should be no longer than 66 cm (26 inches). The QSC SP-26 accessory (sold
separately) is suitable for this task.
If two (2) LA108 loudspeakers are pole-mounted using a QSC threaded subwoofer pole (QSC SP-36 accessory sold separately), then
the subwoofer pole length can be safely increased to 91 cm (36 inches) in the configurations in on the next page.
WARNING!: Longer pole lengths should not be used, unless the subwoofer is securely attached to the ground with
additional straps or hardware (not included) to prevent a tipping hazard.
6°
—Figure14—
1.5°
—Figure15—
To Next Page
