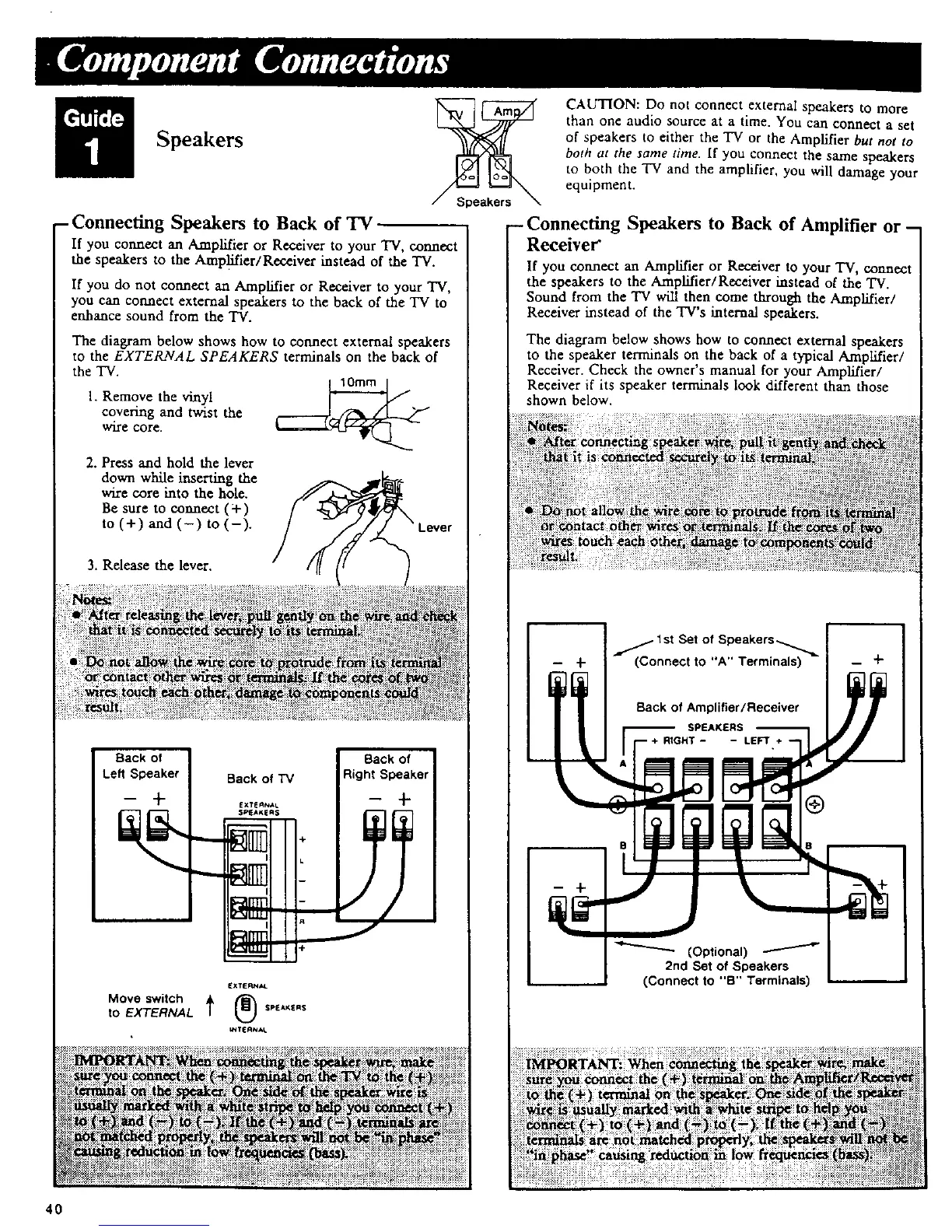

Speakers
-Connecting Speakers to Back of TV
If you connect an Amplifier or Receiver to your "IV, connect
the speakers to the Amplifier/Receiver instead of the TV.
If you do not connect an Amplifier or Receiver to your 'IV,
you can connect external speakers to the back of the TV to
enhance sound from the TV.
The diagram below shows how to connect external speakers
to the EXTERNAL SPEAKERS terminals on the back of
the "IV.
I. Remove the vinyl
covering and twist the
wire core.
2. Press and hold the lever
down while inserting the
wire core into the hole.
Be sure to connect (+)
to (+) and (-) to (-).
Lever
3. Release the lever.
I
I
I
EXTERNAL
Moves*ifc"t ®
tOEXTERNAL S_A_RS
_NTERNAL
CAUTION: Do not connect external speakers to more
than one audio source at a time. You can connect a set
of speakers to either the "IV or the Amphfier but not to
both at the same time. If you connect the same speakers
to both the TV and the amplifier, you will damage your
equipment.
-- Connecting Speakers to Back of Amplifier or -
Receiver"
If you connect an Amplifier or Receiver to your TV, connect
the speakers to the Amplifier/Receiver instead of the TV.
Sound from the TV will then come through the Amplifier/
Receiver instead of the TV's internal speakers.
The diagram below shows how to connect external speakers
to the speaker terminals on the back of a typical Amplifier/
Receiver. Check the owner's manual for your Amplifier/
Receiver if its speaker terminals look different than those
shown below.
1st Set of Speakers_
-- + (Connect to "A" Terminals) -- +
Back of Amplifier/Receiver
-- SPEAKERS
RIGHT- - LEFT
@
(Optional)
2nd Set of Speakers
(Connect to "B" Terminals)
40
