8 Chapter 1
Connections & Setup
Need Some Help?
If you prefer, we can
provide you with the
name of an Authorized
Service Representative
who will visit your home
for a fee to install your
electronic entertainment
system and to instruct you
in its operation. For
details about this service,
call 1-888-206-3359.

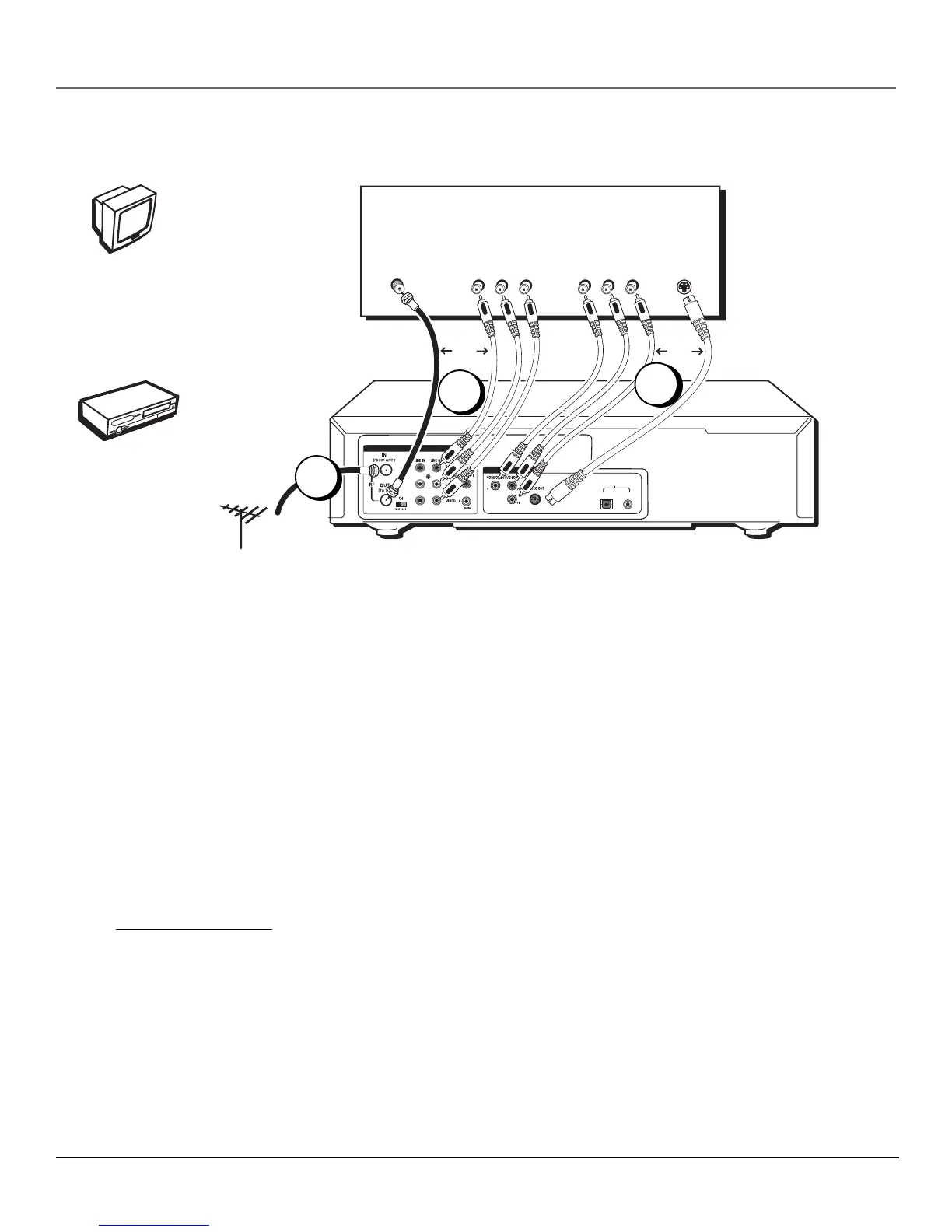

TV + DVD/VCR
1. Connect the antenna/cable feed to the DVD/VCR.
Connect the RF coaxial cable/antenna feed (not included) to the IN (FROM
ANT) jack on your DVD/VCR.
2. Connect the DVD/VCR to the TV
You can connect the DVD/VCR player to the TV using either RF coaxial
cable, or for better picture and stereo-quality sound you can use A/V
cables. You do not need to use both connections.
Using RF coaxial cable:
Connect one end of an RF coaxial cable (not included) to the DVD/VCR
OUT (TO TV) jack, and the other end to the TV’s antenna input jack.
Note: If you only use a coaxial cable (and no audio/video cables), you must
move the CH 3/4 switch on the back of the DVD/VCR to the channel that
does not receive a broadcast station in your area. This will be the channel
that the TV must be tuned to in order to see the DVD/VCR’s picture (viewing
channel).
TV
VIDEOAUDIO COMPONENT VIDEO
R L Y Pr Pb
S-VIDEO IN
DVD/VCR PLAYER
TV (BACK PANEL)
CABLE OR
OFF-AIR
SIGNAL
DVD & VCR
DVD Only
COAXIAL
DIGITAL AUDIO OUT
OPTICAL
ANT IN
OR
OR
1
2
Note: Your television back panel may not look
exactly like the model shown here.
3
DVD/VCR
