12 Chapter 1
Connections & Setup
VIDEOAUDIO COMPONENT VIDEO
R L Y Pr Pb
S-VIDEO IN
ANT. IN
OUT TO TV
SAT. IN
DVD/VCR PLAYER
TV (BACK PANEL)
CABLE OR
OFF-AIR
SIGNAL
SATELLITE
SIGNAL
SATELLITE RECEIVER
DVD & VCR
DVD Only
COAXIAL
DIGITAL AUDIO OUT
OPTICAL
ANT IN
OR
OR

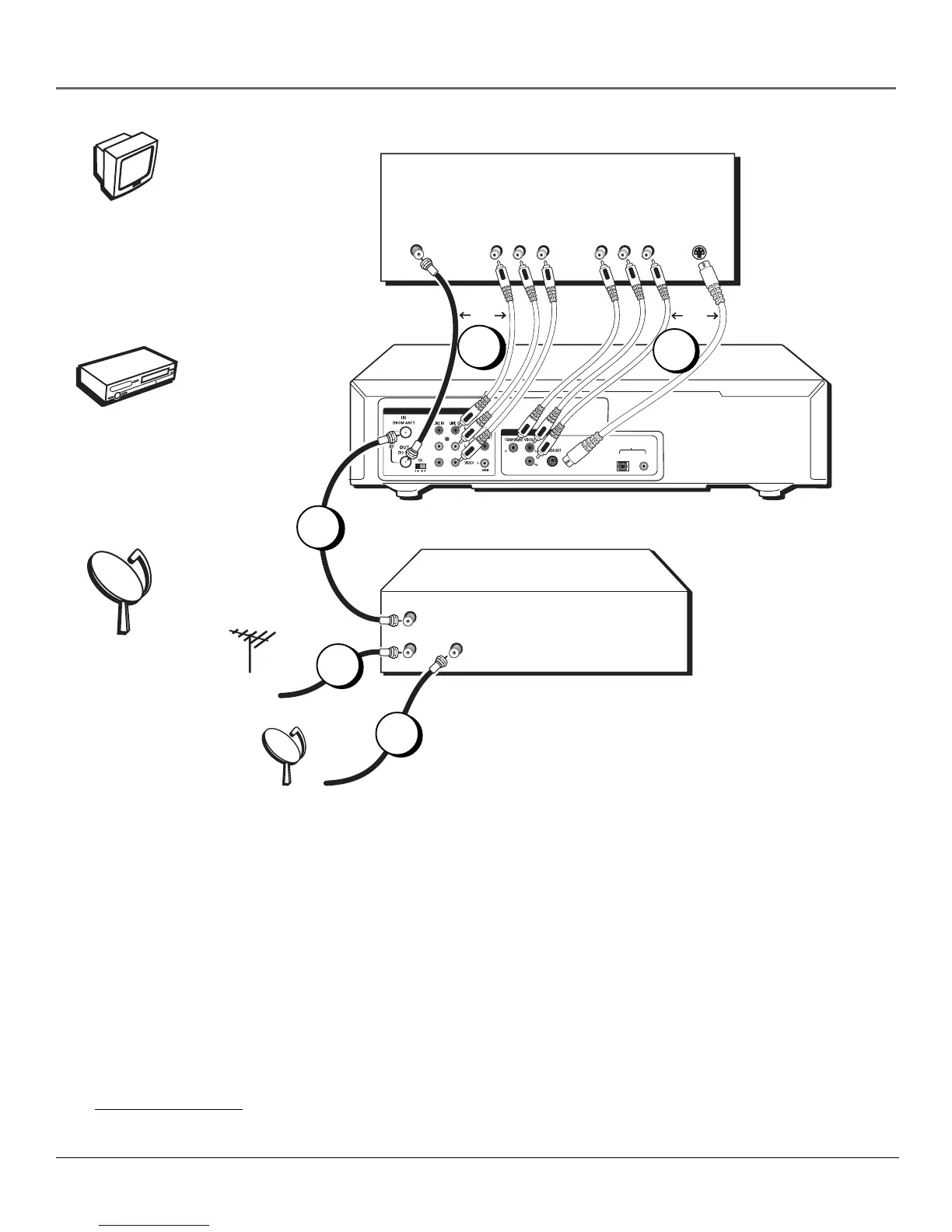

TV + DVD/VCR + Satellite Receiver
1. Connect the antenna/cable feed to the satellite receiver.
Connect the RF coaxial cable/antenna feed (not included) to the off-air
antenna input jack on your satellite receiver.
2. Connect the satellite antenna feed to the satellite receiver.
Connect the RF coaxial satellite antenna feed (not included) to the satellite
antenna input jack on your satellite receiver.
Satellite
TV
DVD/VCR
Note: Your TV and cable box back panels may
not look exactly like the models shown here.
3
1
2
5
Need Some Help?
If you prefer, we can
provide you with the
name of an Authorized
Service Representative
who will visit your home
for a fee to install your
electronic entertainment
system and to instruct
you in its operation. For
details about this service,
call 1-888-206-3359.
4
To Next Page
