1. Guide to the Printer

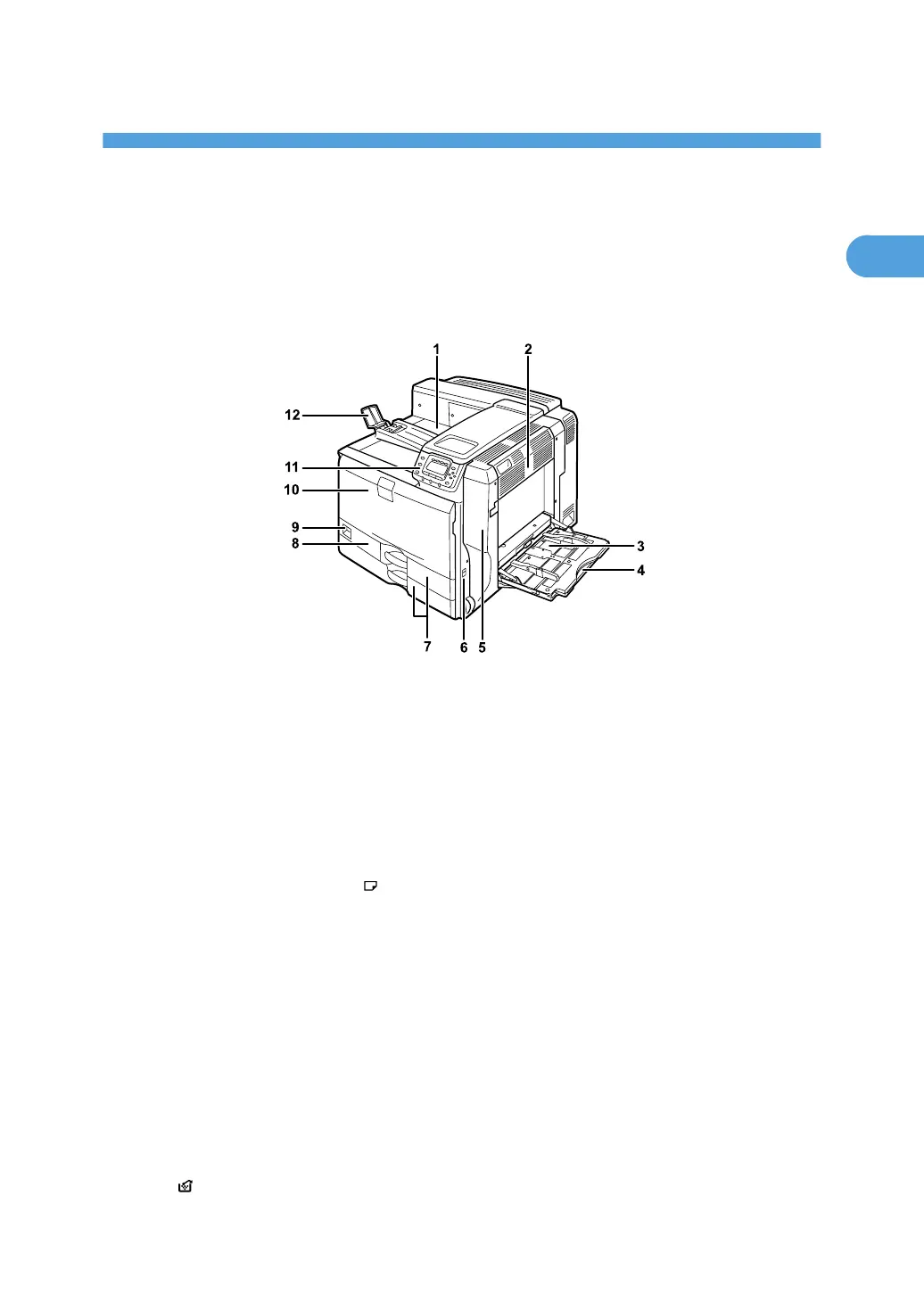

Exterior: Front View
This section explains names and functions of the parts on the front and right side of the printer.
1. Standard Output Tray
Printed pages are output here.
2. Upper Right Cover
Open this cover to remove jammed paper.
3. Bypass Tray
Up to 100 sheets of plain paper can be loaded.
4. Bypass Tray Extension
When loading paper larger than A4 , pull out the bypass tray extension. For details about the sizes and types
of paper that can be used, see p.81 "Supported Paper for Each Tray".
5. Right Cover
Open this cover to replace the fusing unit and transfer roller, or to remove jammed paper.
6. Handle
Pull out this handle when lifting the printer.
7. Tray 1, Tray 2 in each tray.
Up to 550 sheets of paper can be loaded in each tray, when using plain paper.
8. Left Front Cover
Open this cover when replacing the waste toner bottle. The waste toner bottle collects toner that is left over during
printing.
If the " The Used Toner Bottle is full." message appears on the display, replace the waste toner bottle.
