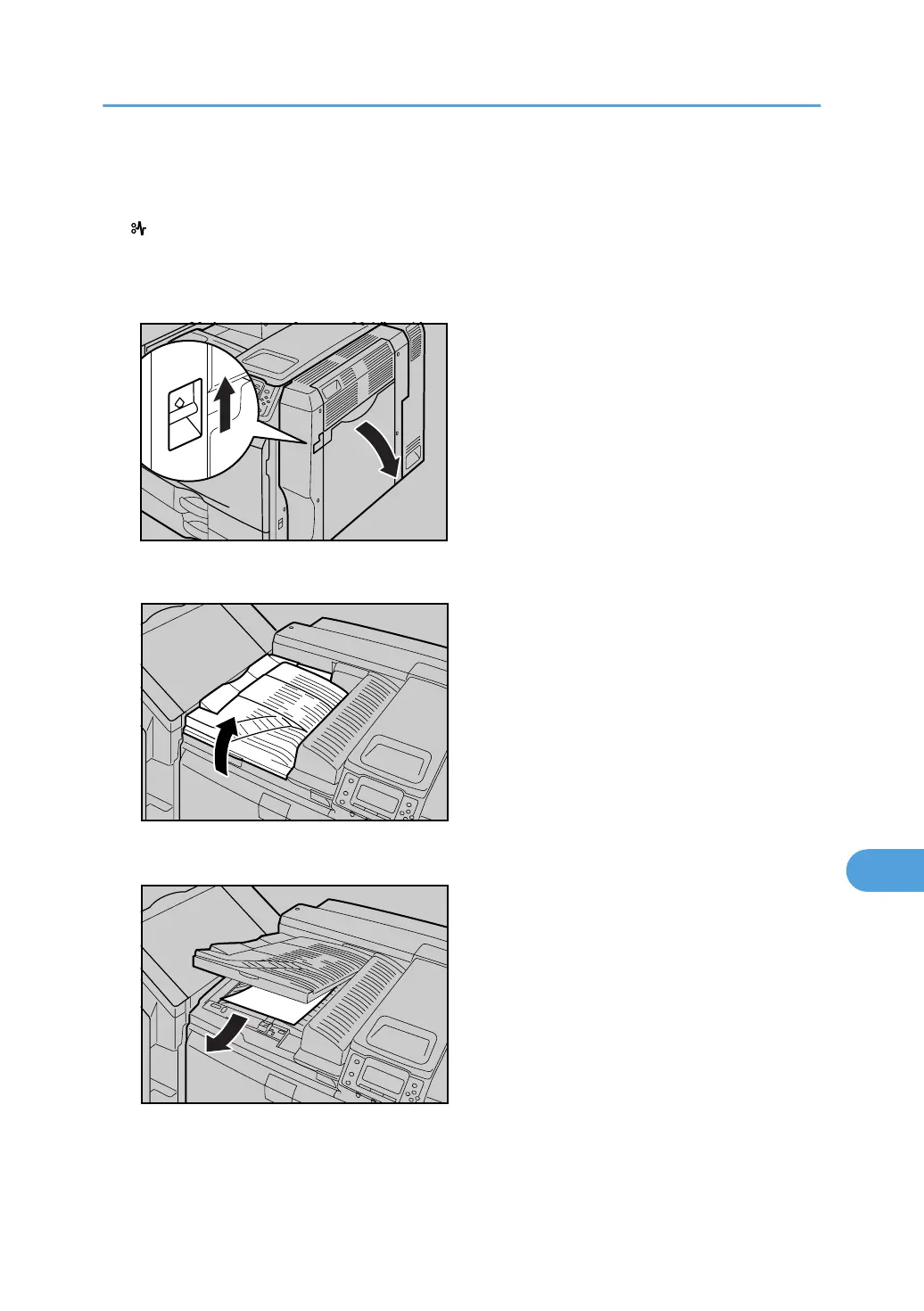

Paper Misfeed Message (D)
The
D
"Read
instructions
in
Front
Cover
to
remove."
error
message
appears
when
a
paper
misfeed
occurs
while paper is being fed.
1.
Push up the lever on the right side, and open the printer's right cover carefully.
ATU098S
2.
Open the left cover of the bridge unit.
ASZ179S
3.
Remove the paper.
ASZ180S
Paper Misfeed Message (D)
