Ricoh Aficio SP C811DN Hardware Guide

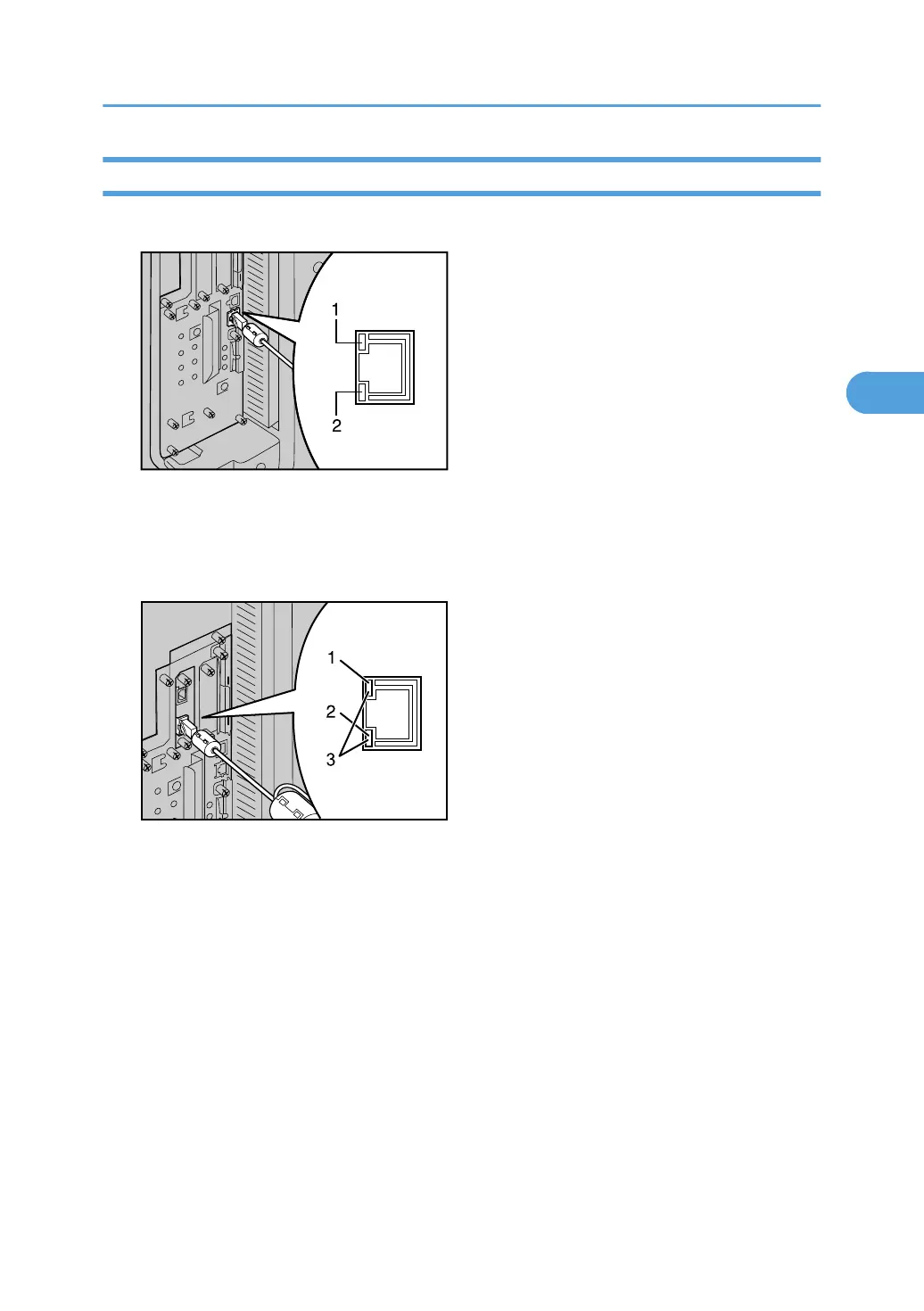

Reading the LED Lamps
Standard Ethernet port
ATU034S
1. Green: turns on when the printer is properly connected to the network.
2. Yellow: turns on when 100BASE-TX is in use. It turns off when 10BASE-T is in use.
Optional Gigabit Ethernet board
ATU035S
1. Yellow: turns on when 100BASE-TX is in use.
2. Green: turns on when 10BASE-T is in use.
3. Both the green and yellow lamps are lit when 1000BASE-T is in use.
Ethernet Cable Connection
61
3
