7. Attach the bridge unit
To use the booklet finisher or 2 tray finisher, remove the output tray and attach the bridge unit.
To attach this option, contact your sales or service representative.
8. Attach the booklet finisher or 2 tray finisher
Attach the bridge unit first, then attach this option on the left side of the printer. To attach this option,
the 1000-sheet paper feed unit or 2000-sheet paper feed unit must be attached already.
To attach this option, contact your sales or service representative.
9. Attach the punch unit to the finisher
Attach this option to add punch capability to the finisher.
To attach this option, contact your sales or service representative.
Installing Options

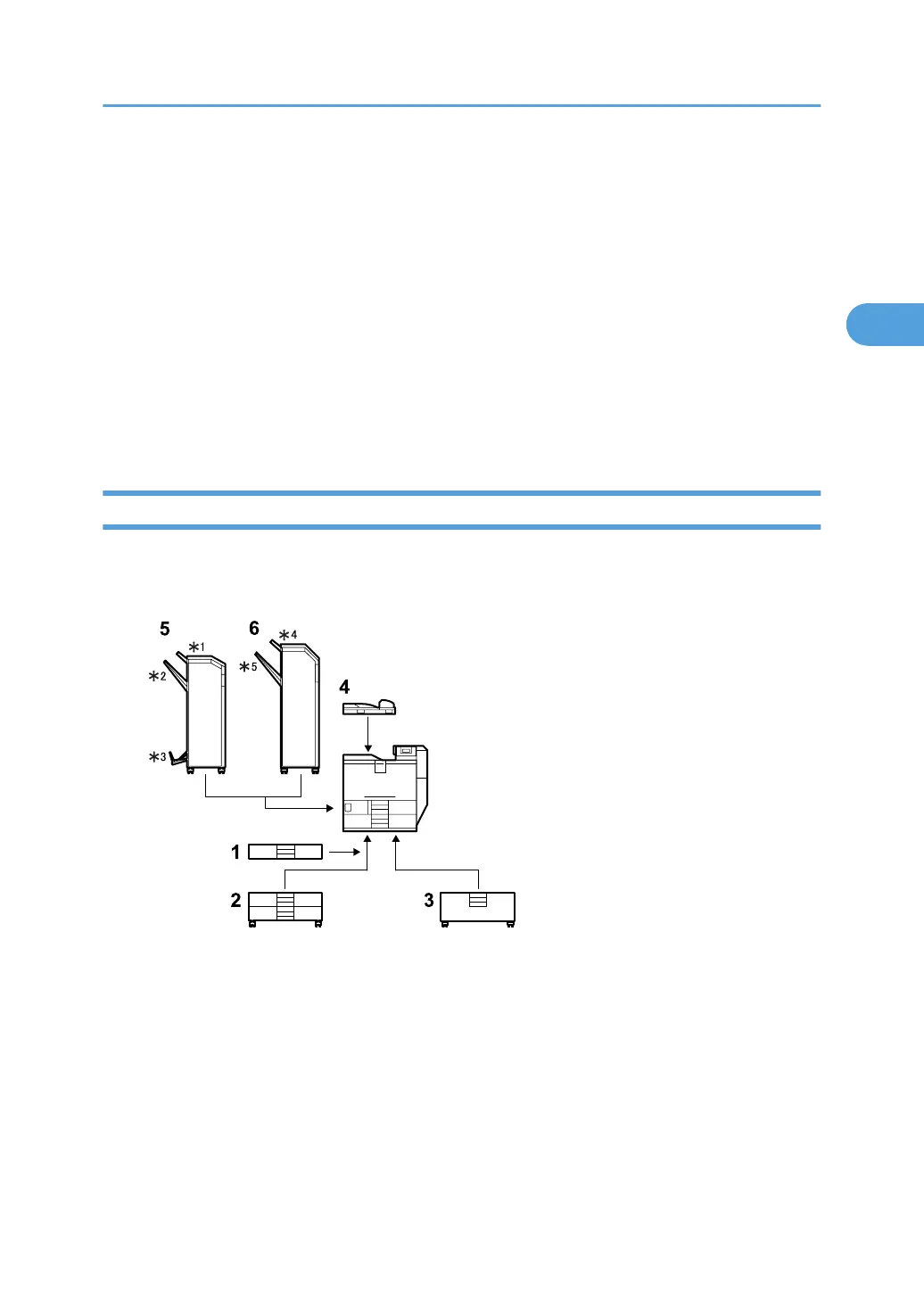

Install options in the positions shown below.
External options
1. 500-sheet paper feed unit
Attach to the underside of the printer. Up to 550 sheets of paper can be loaded, when using
plain paper. The 500-sheet paper feed unit will be identified as "Tray 3".
See p.28 "Attaching the 500-sheet Paper Feed Unit to the 1000-sheet Paper Feed Unit".
2. 1000-sheet paper feed unit
Attach to the underside of the printer, or of the 500-sheet paper feed unit. Up to 1100 sheets
(550 sheets per tray) of paper can be loaded, when using plain paper. Depending on where it
is attached, the trays of the 1000-sheet paper feed unit will be identified as follows:
Available Options
23
