Exterior Covers (SP 5300/5310)
SM 4-67 D255/D256/M281/M282
and Adjustment

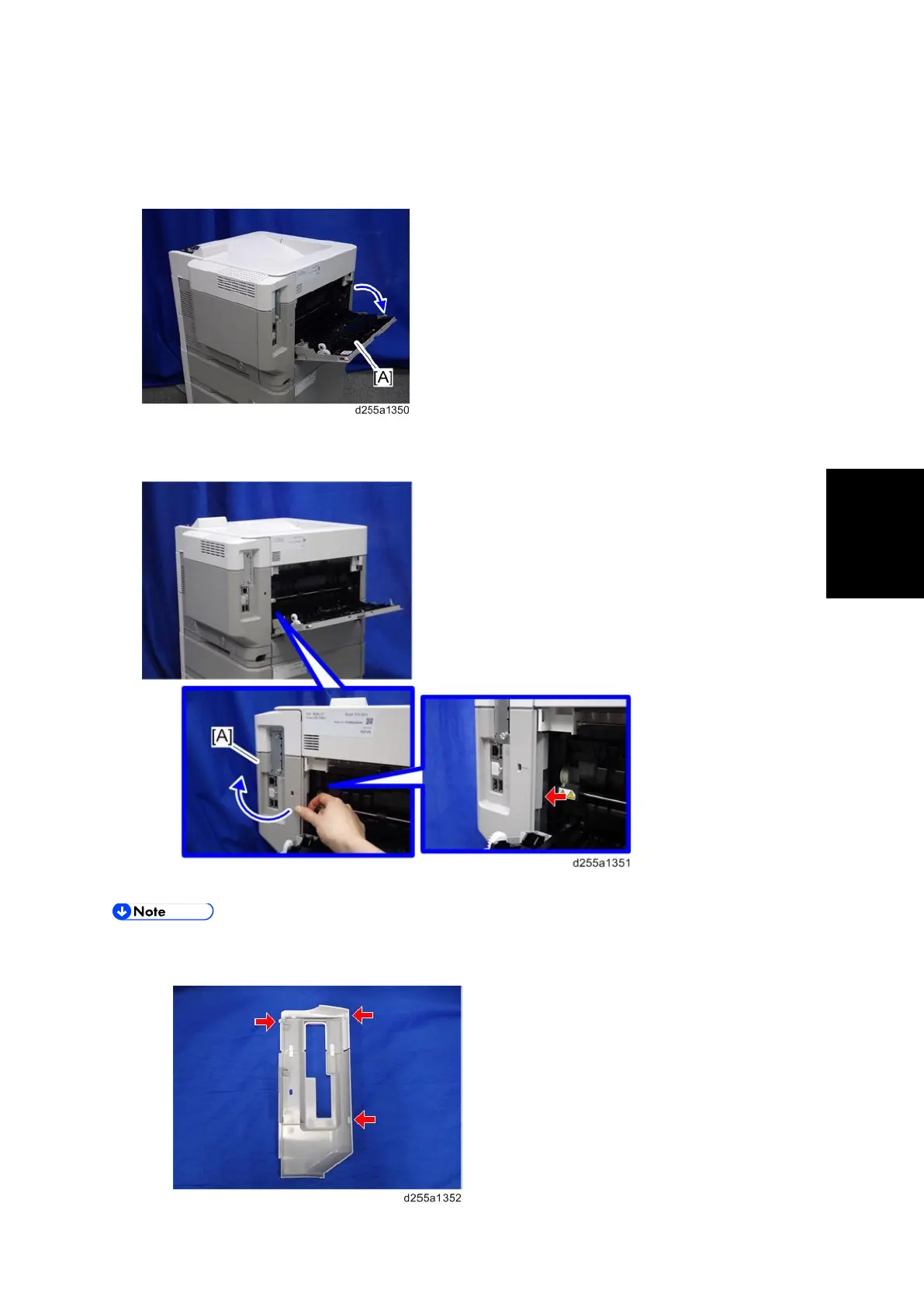

4.7.10 CONTROLLER COVER
1. Open the rear upper cover [A].
2. Release the hook by opening the right side of the cover, and then remove the cover [A]
by rotating it in the direction of the blue arrow.
 Be careful not to damage the hooks on the inside of the controller cover when you
remove or install the controller cover.
To Next Page
