Electrical Components
SM 4-129 D255/D256/M281/M282
and Adjustment

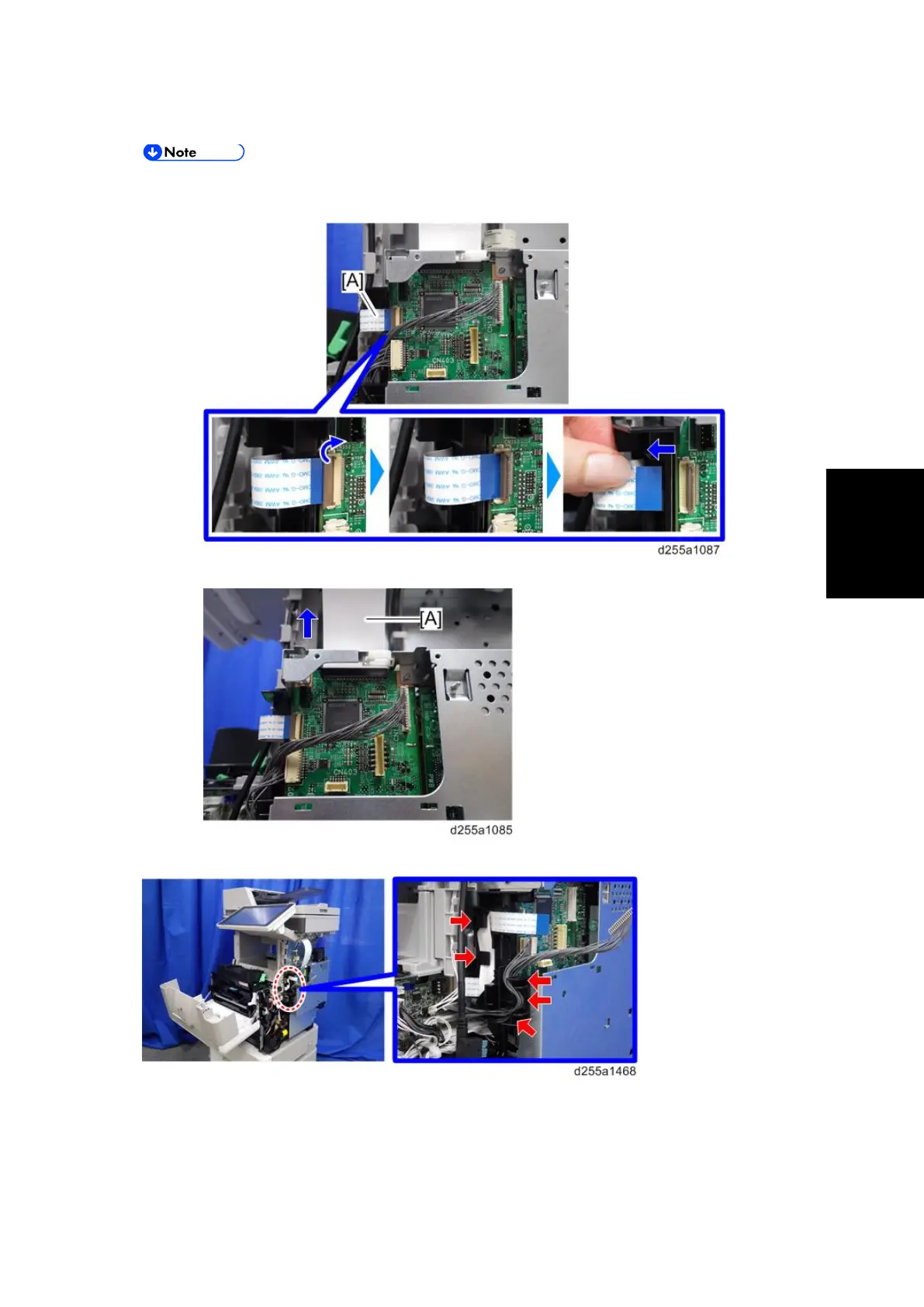

 Make sure to open the flap before disconnecting the flat cable [A], as shown in the
following pictures. Otherwise, the connector may be damaged.
 When disconnecting the flat cable [A], pull it out in the direction of the arrow.
5. Release the flat cable and harness from the harness guides.
