ARDF (MP 501/601 Only)
SM 4-161 D255/D256/M281/M282
Replacement
and Adjustment
4.25 ARDF (MP 501/601 ONLY)
4.25.1 ARDF UNIT

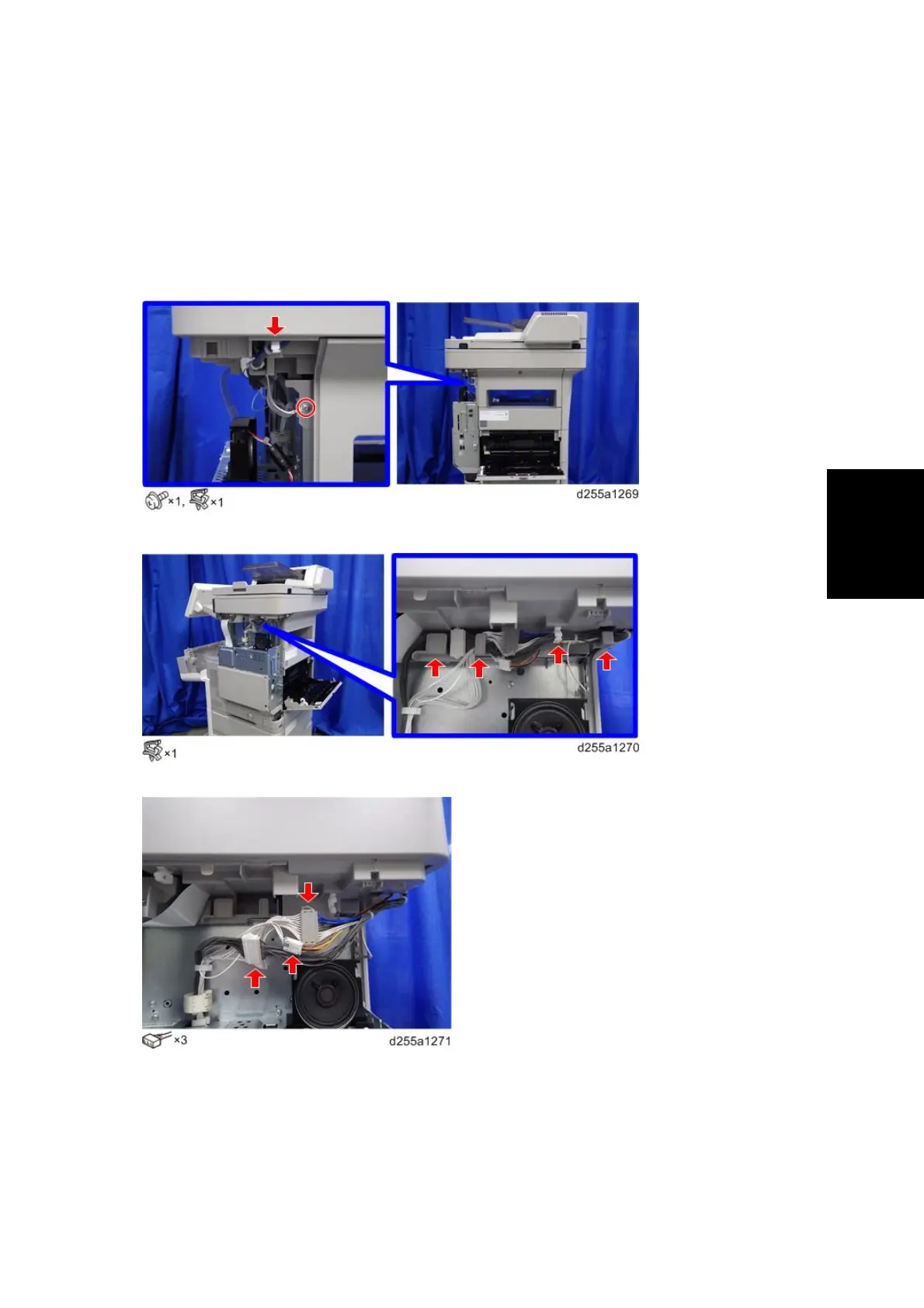

1. Remove the right upper cover. (page 4-20)
2. Remove the ground screw and release the clamp from the rear side of the machine.
3. Release the harness from the harness guides and clamp.
4. Disconnect the three connectors.
