IC Card Reader (External Option)
109

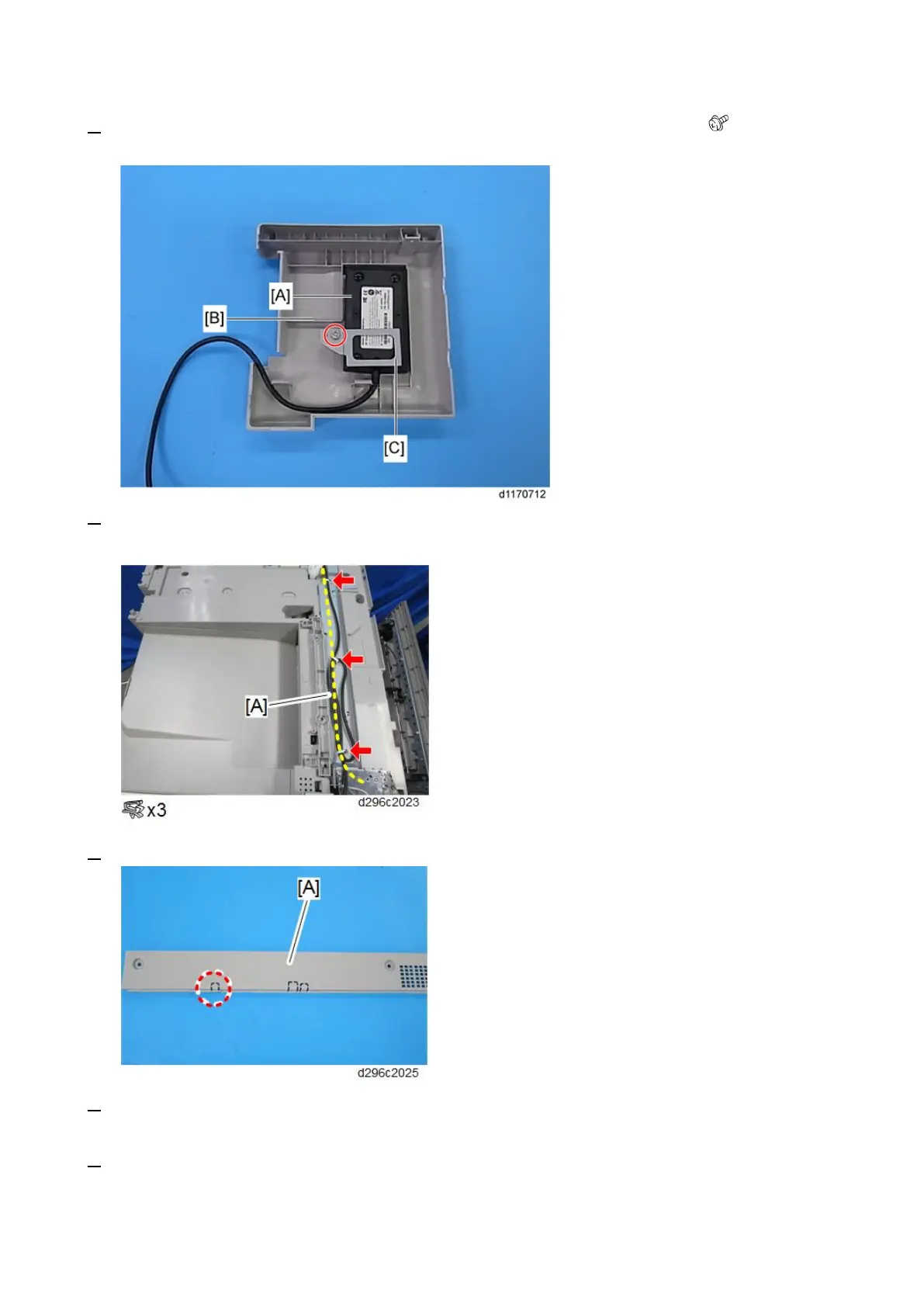

2. Attach the IC card reader [A] to the rear of the front right cover [B] with the bracket [C]. ( × 1 included
in this kit)
3. Route the USB cable [A] from the IC card reader as shown below, and then pull out the USB cable from
the rear of the machine.
4. Cut out the hole for the USB cable to pass through the scanner rear cover [A].
5. Pass the USB cable from the IC card reader through the hole in the scanner rear cover, and then reassemble
the machine.
6. Do the following steps:
• Attach the clamps [A] to prevent the cable from sagging.
To Next Page
