269

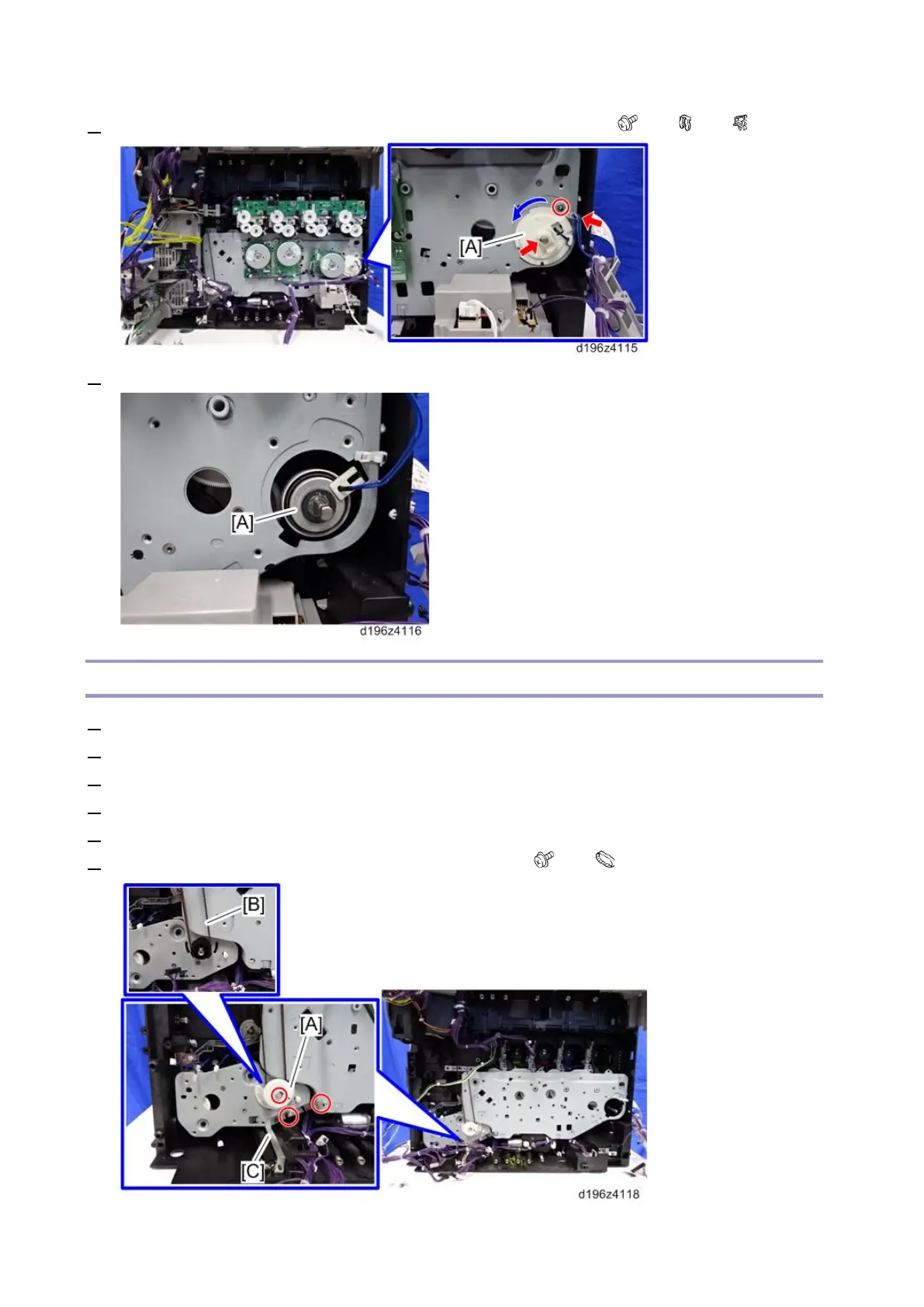

2. Remove the development clutch cover [A] by rotating it counterclockwise. ( × 1, × 1, × 1)
3. Remove the development clutch [A].
Drive Unit
1. Remove the toner transport section. (Toner Transport Section)
2. Remove the development motor (CMY). (Development Motor (CMY))
3. Remove the drum motor (CMY). (Drum Motor (CMY))
4. Remove the drum motor (K). (Drum Motor (K))
5. Remove the development clutch (K). (Development Clutch (K))
6. Remove the gear cover [A], belt [B], and grounding plate [C]. ( × 3, × 1)
