1.Replacement and Adjustment
20

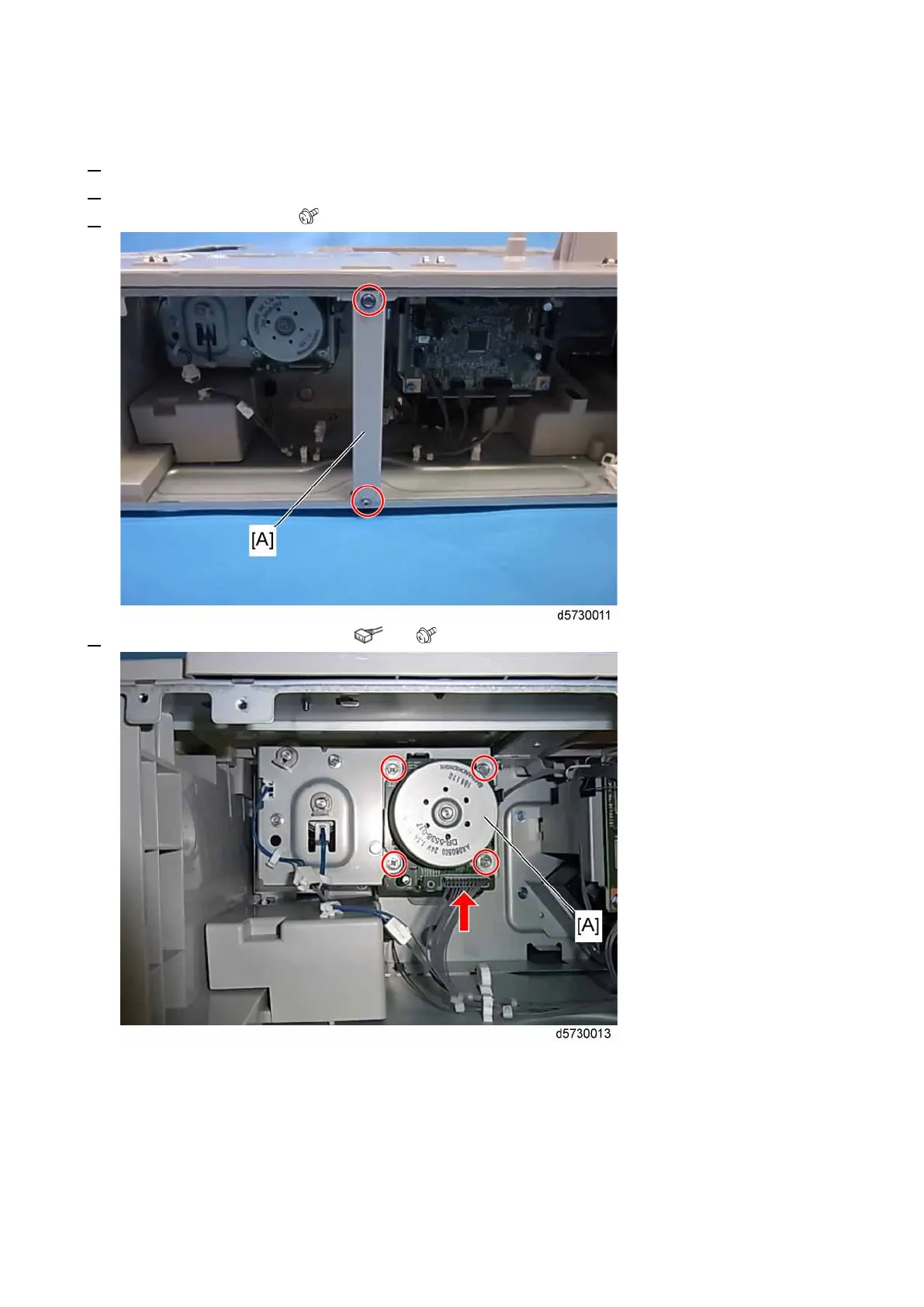

Paper Feed Motor
1. Pull out the paper tray.
2. Remove the rear cover. (Rear Cover)
3. Remove the rear stay [A]. ( × 2)
4. Remove the paper feed motor [A]. ( × 1, × 4)
