3.SP Mode Tables
371

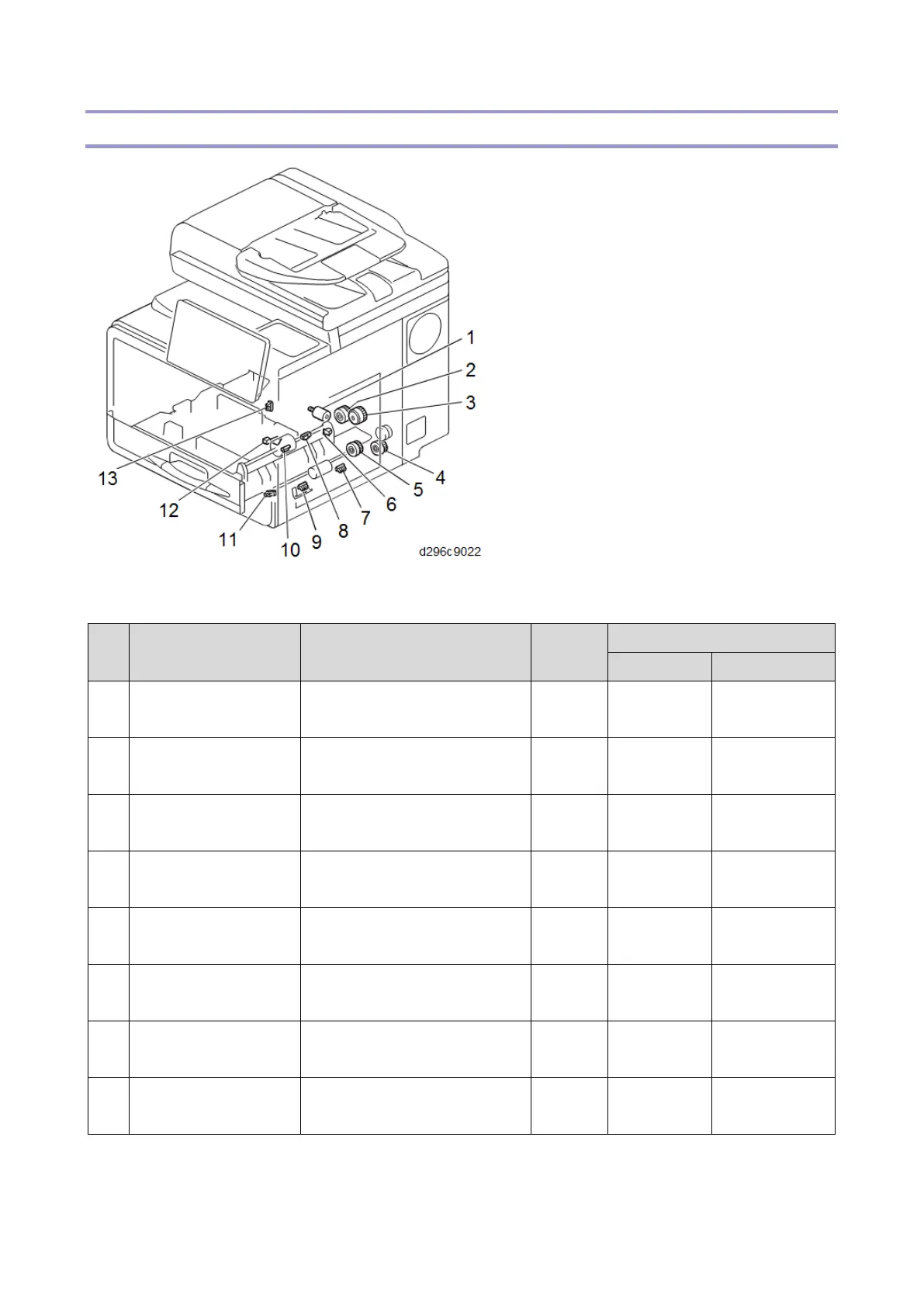

Paper Feed
Input Check
No. Part Name SP Name SP No. Reading
0 1
6 Scanner HP sensor Tray Set Detection 5-803-
054
Set Not set
7 Bypass paper end
sensor
Bypass Paper End Detection
Sensor
5-803-
003
Paper
detected
Paper not
detected
8 Registration sensor Registration Sensor 5-803-
001
Paper
detected
Paper not
detected
9 Bypass paper width
sensor
Bypass Paper Width Detection
Sensor
5-803-
004
Paper
detected
Paper not
detected
10 Paper feed sensor Tray Exit Sensor 5-803-
011
Paper
detected
Paper not
detected
11 Bypass lift sensor By-pass Lift Position Sensor 5-803-
010
Down Up
12 Tray paper end sensor Tray Paper End Detection
Sensor
5-803-
002
Paper
detected
Paper not
detected
13 Tray lift sensor Tray Lift Sensor 5-803-
053
Down Up
