ADF
211

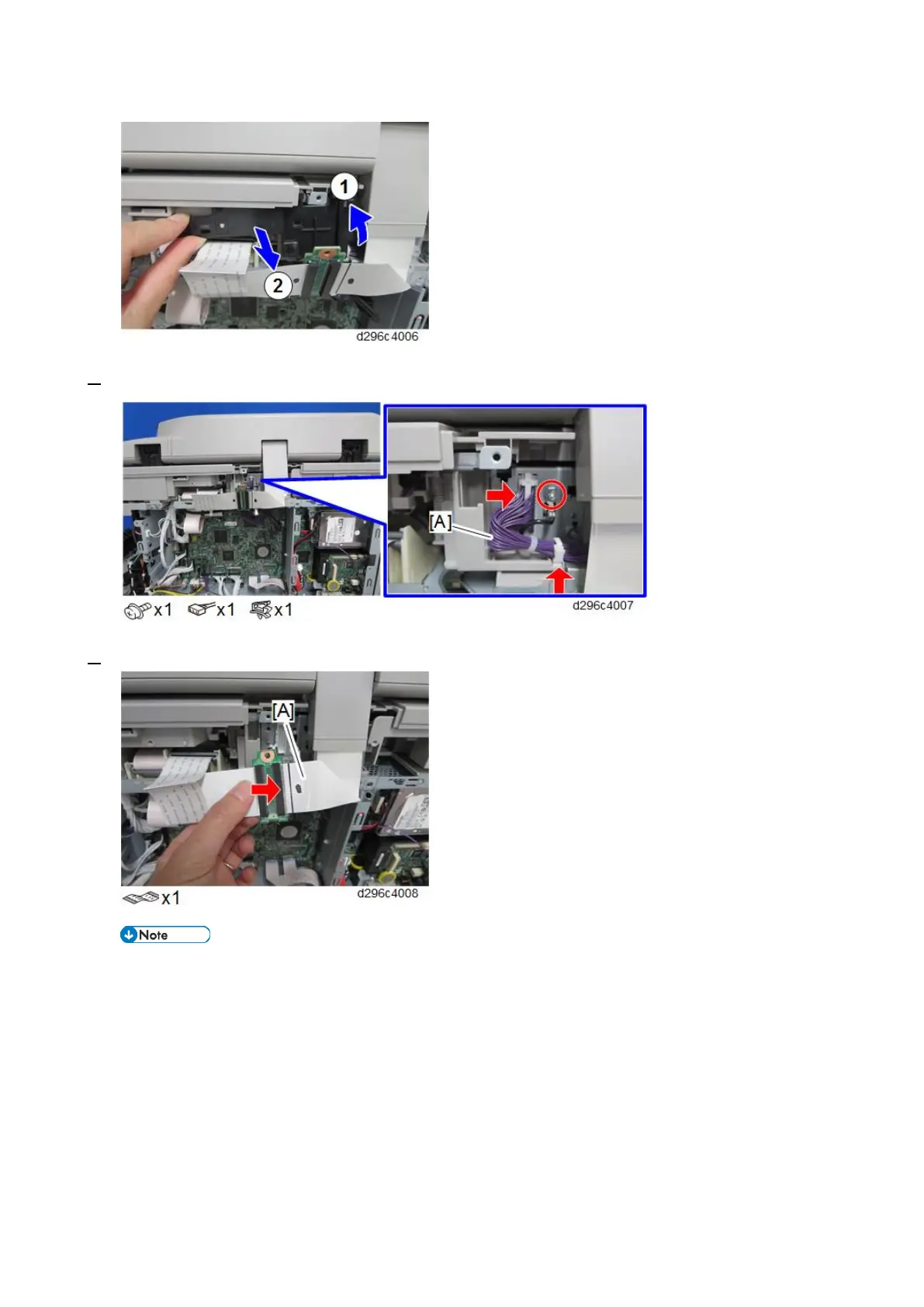

5. Disconnect the harness [A] from the ADF.
6. Disconnect the FFC [A] from the relay board.
Disconnect the FFC for the relay board by pulling it out straight, because it does not have a lock
mechanism.
When reassembling, the FFC must be connected straight.
