ADF
223

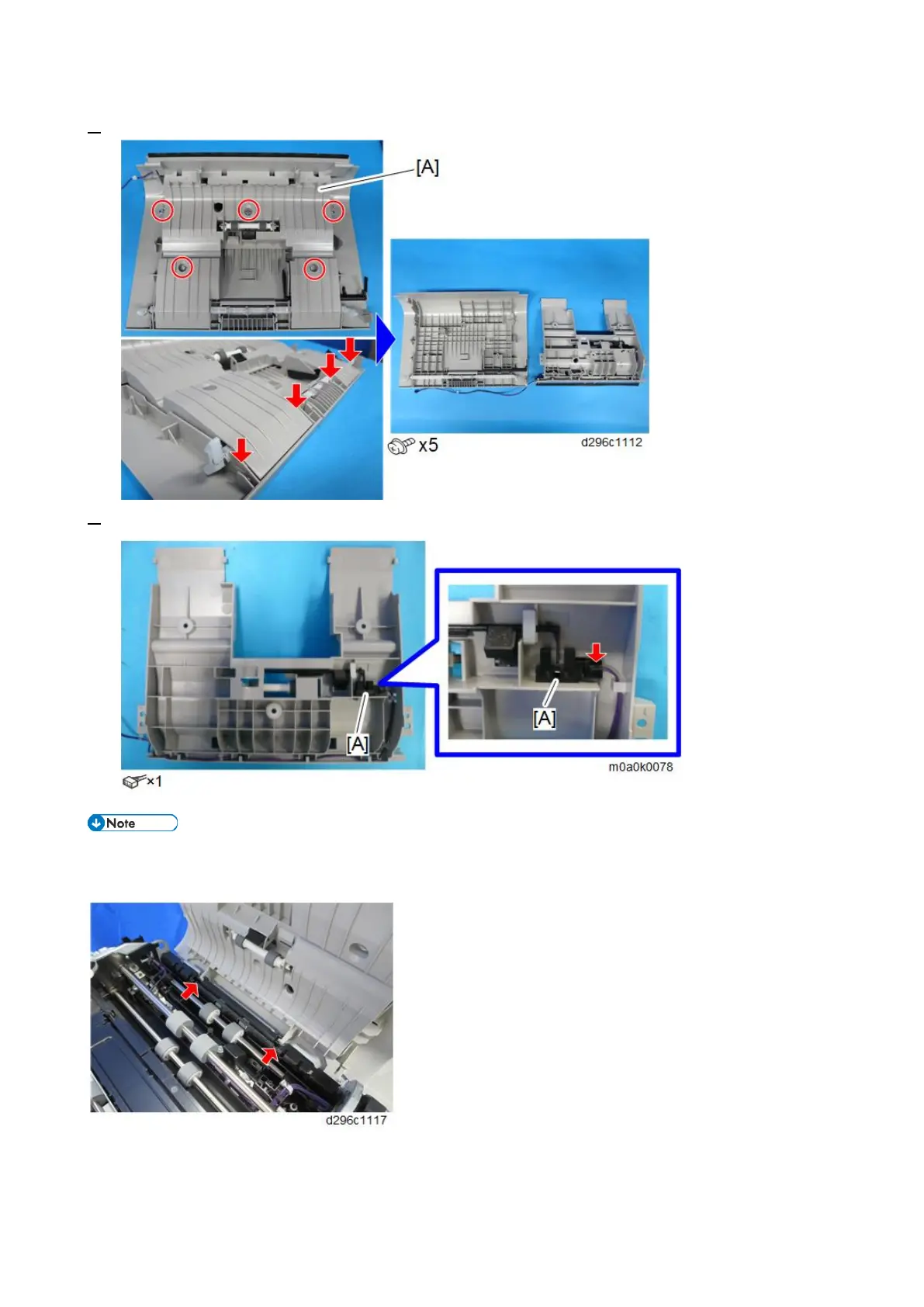

5. Remove the five screws and release the four tabs, and then remove the inner cover [A].
6. Remove the ADF feed sensor [A].
• When reattaching the ADF top cover, make sure it is set correctly so that the two tabs fit into the
holes.
