Electrical Components
339
Power Pack (Transfer)
1. Remove the PSU with the bracket. (PSU (AC), PSU (DC))

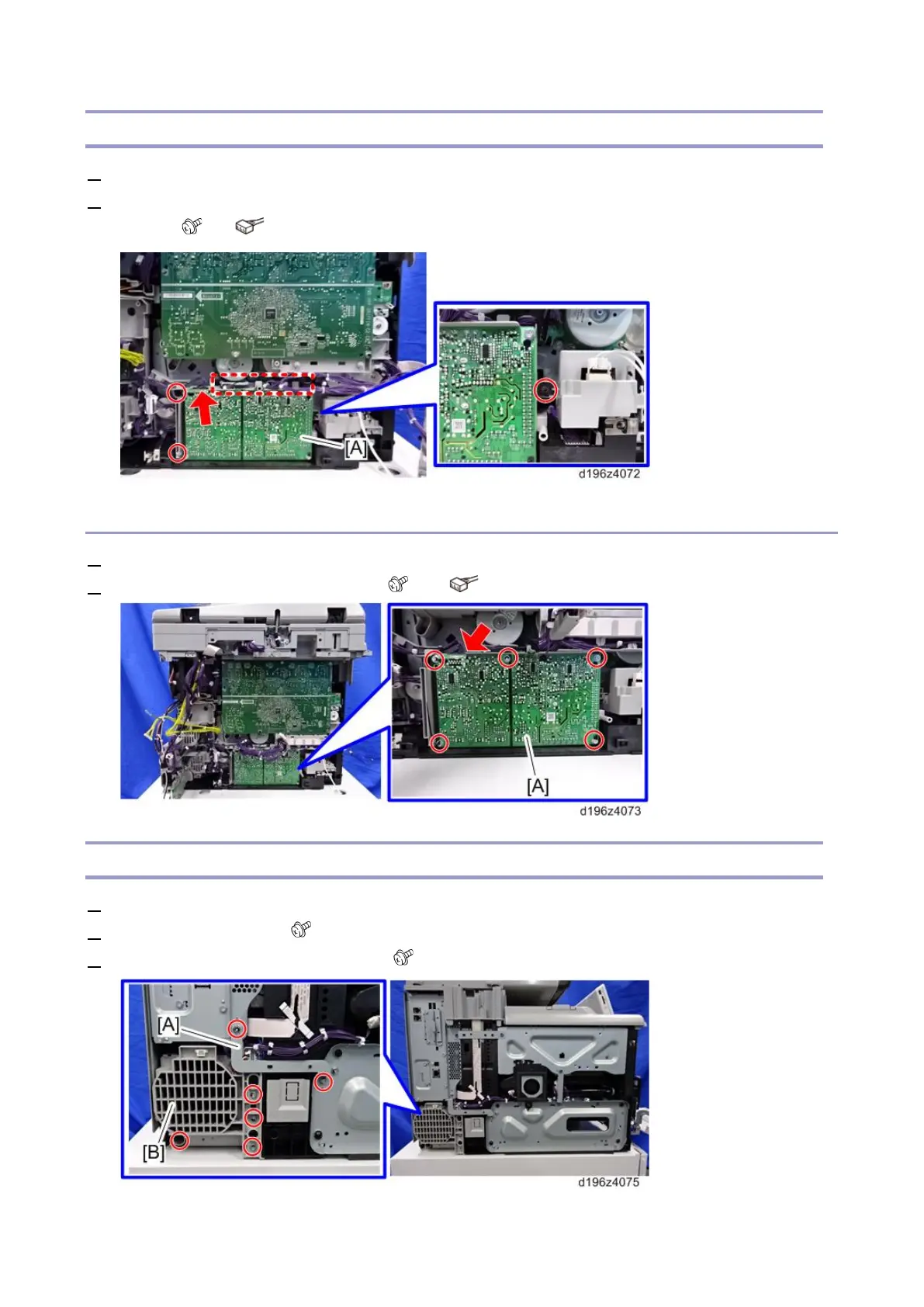

2. Disconnect the harness attached to the power pack’s bracket, and then remove the power pack [A] with the
bracket. ( × 3, × 1)
Removing the Power Pack (Transfer) Alone
1. Remove the PSU with the bracket. (PSU (AC), PSU (DC))
2. Remove the power pack (Transfer) [A]. ( × 5, × 1)
PSU Fan
1. Remove the left cover. (Left Cover)
2. Remove the bracket [A]. ( × 2)
3. Remove the screws of the fan cover [B]. ( × 4)
To Next Page
