between two neighboring rising edges), and the idle time should be within the range

between P and M (P < Idle Time < M). Wherein, M is the time between the first rising

edge and its previous rising edge; P is the maximum time between the rising edges

that participate in counting.

Edge Type=

Edge Num=2

P<Idle Time<M

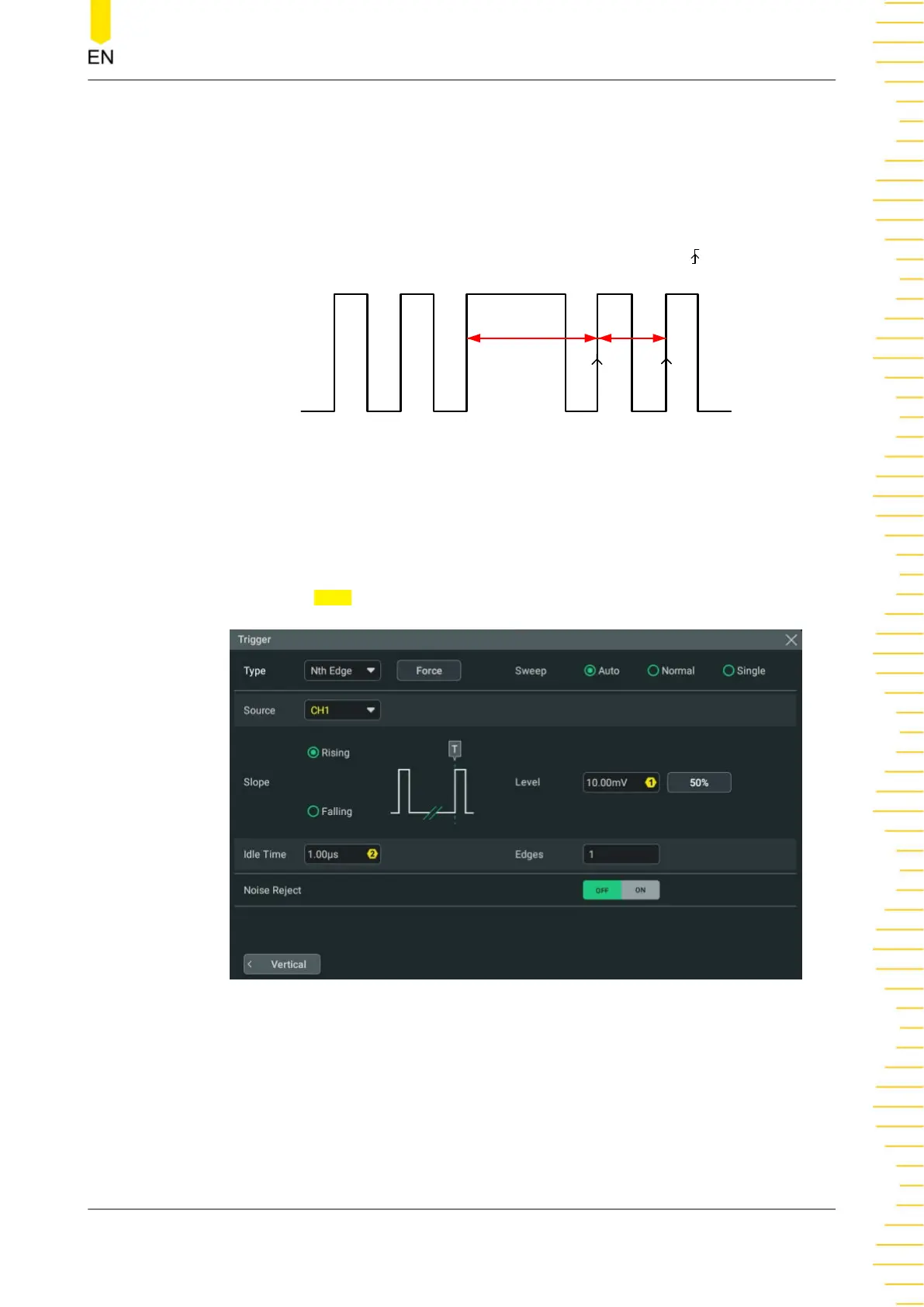

Figure 8.22 Nth Edge Trigger

Trigger Type

Click or tap the

Type drop-down button to select "Nth Edge".

Figure 8.23 Nth Edge Trigger Setting Menu

After a trigger type is selected, the current trigger setting information (including

trigger type, trigger source, and trigger level) is displayed in the trigger information

label at the top of the screen, as shown in the figure below. The information will

change based on the trigger settings.
