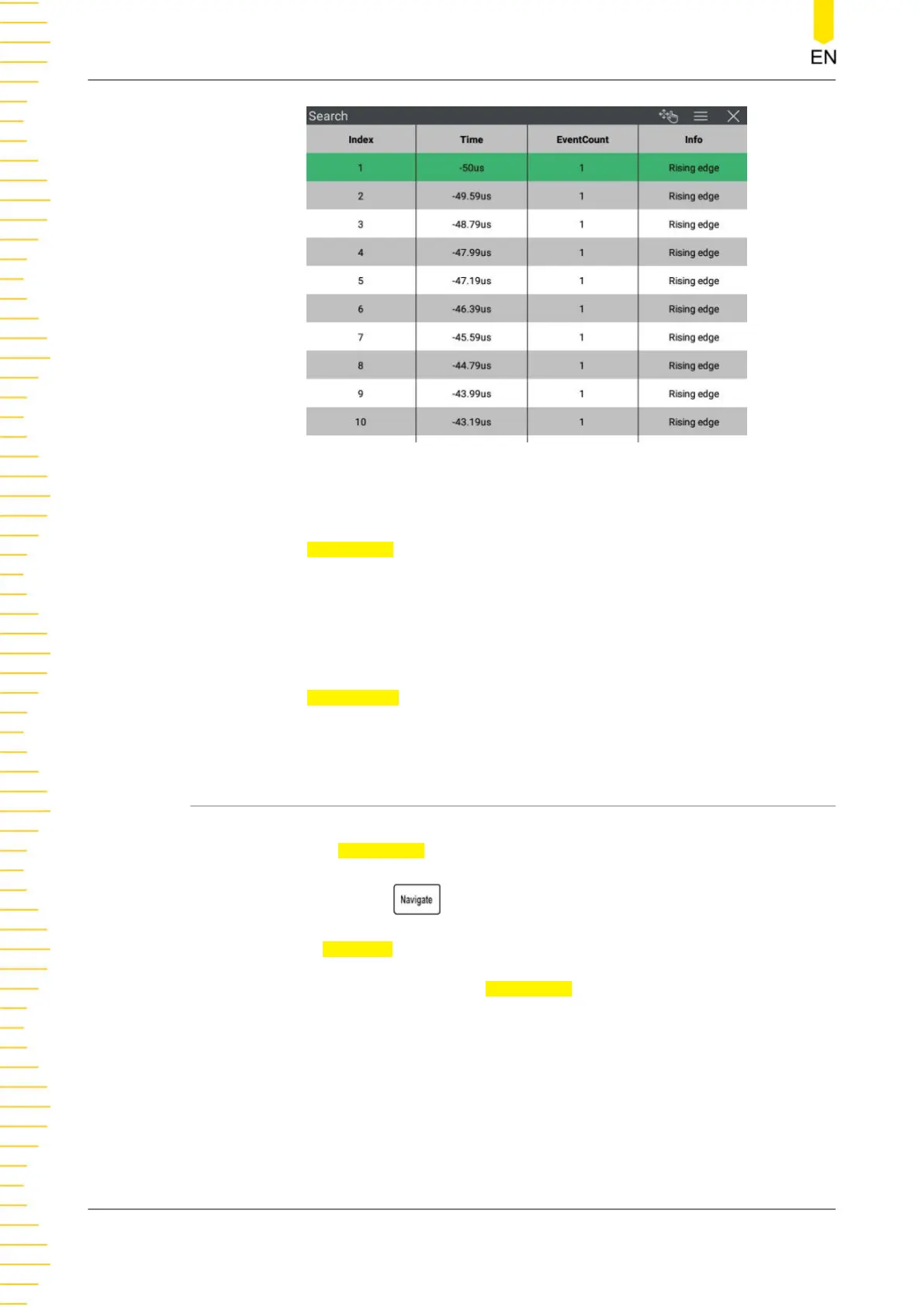

Figure 18.2 MarkTable Display

5. Navigation

Click or tap

Navigation to access the navigation menu. You can use the "Search

Event" mode in

Navigation

to navigate through the search events.

6. Save search events

You can save the event data to the instrument’s internal memory or an external

USB storage device in format of "*.csv".

Click or tap

Save events to access the "Save" menu. For details, please refer to

Save a File

18.2 Navigation

The Navigation function allows you to navigate time, search events, and segments.

You can assess the

Navigation menu in the following ways.

• Press the front-panel

key to access the menu.

• Click or tap Navigate on the toolbar at the upper-right of the interface.

• In the "Search" menu, click or tap Navigation to access the menu.

Search and Navigation

DHO800 User Guide

194
