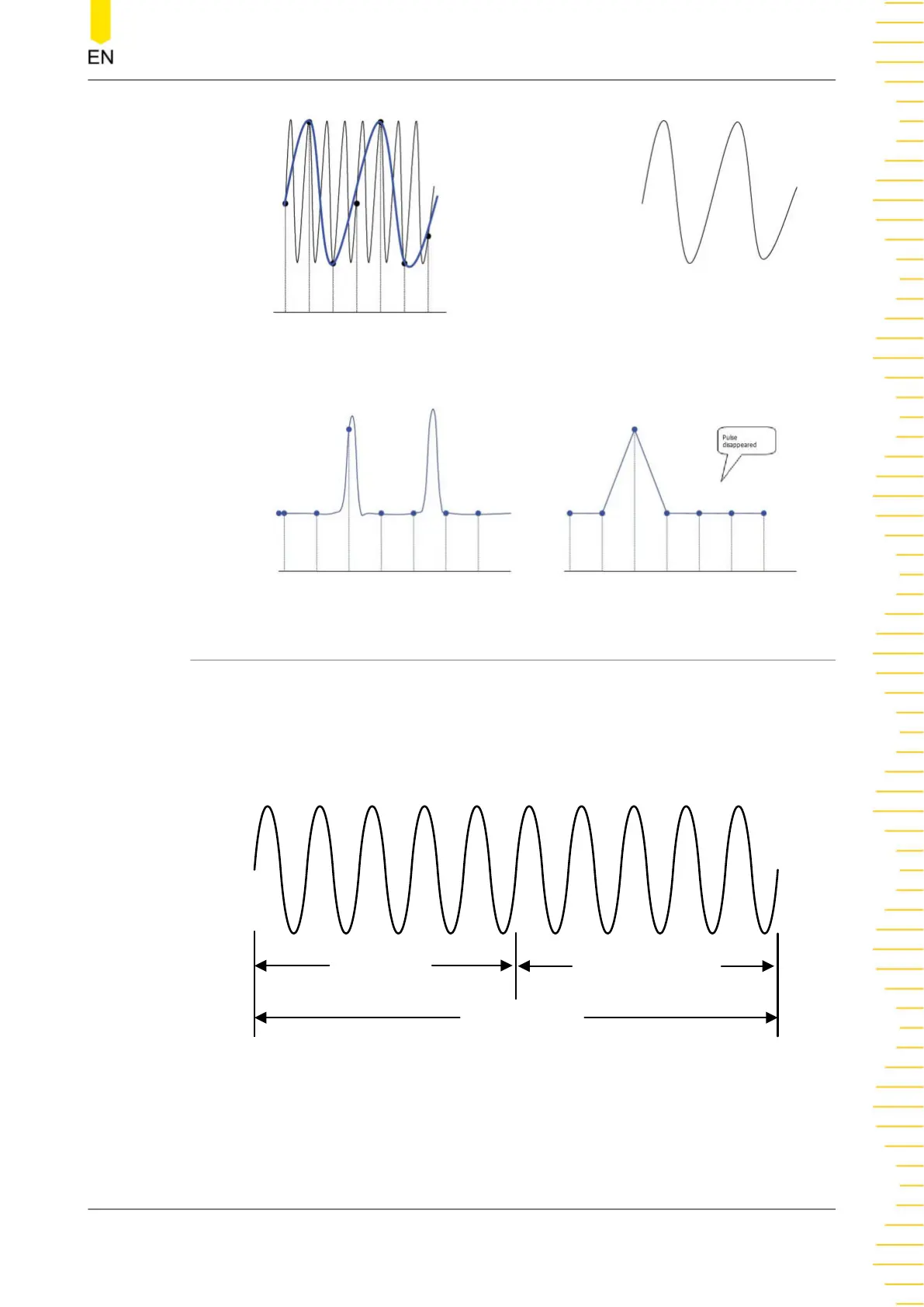

• Waveform Leakage: If the sample rate is too low, the waveform reconstructed

from the sample data does not represent the original signal correctly.

7.4 Memory Depth

Memory depth refers to the number of points that the oscilloscope can store in a

single trigger acquisition. It reflects the storage capability of the acquisition memory.

DHO800 series oscilloscope provides up to 25 Mpts memory depth (standard).

Pre-Sample Delayed Sample

Memory Depth

Trigger Point

Figure 7.3 Memory Depth

The following formula shows the relations among memory depth, sample rate, and

horizontal time base:

Acquisition System
