8.7.6 Duration Trigger

In duration trigger, the oscilloscope identifies a trigger condition by searching for the

duration of a specified pattern. This pattern is a logical "AND" combination of the

channels. Each channel can be set to 1 (high), 0 (low), or X (don't care). The

instrument triggers when the duration (∆T) of this pattern meets the preset time, as

shown in the figure below.

CH1

CH2

CH3

CH4

∆T ∆T

Pattern:HLHL

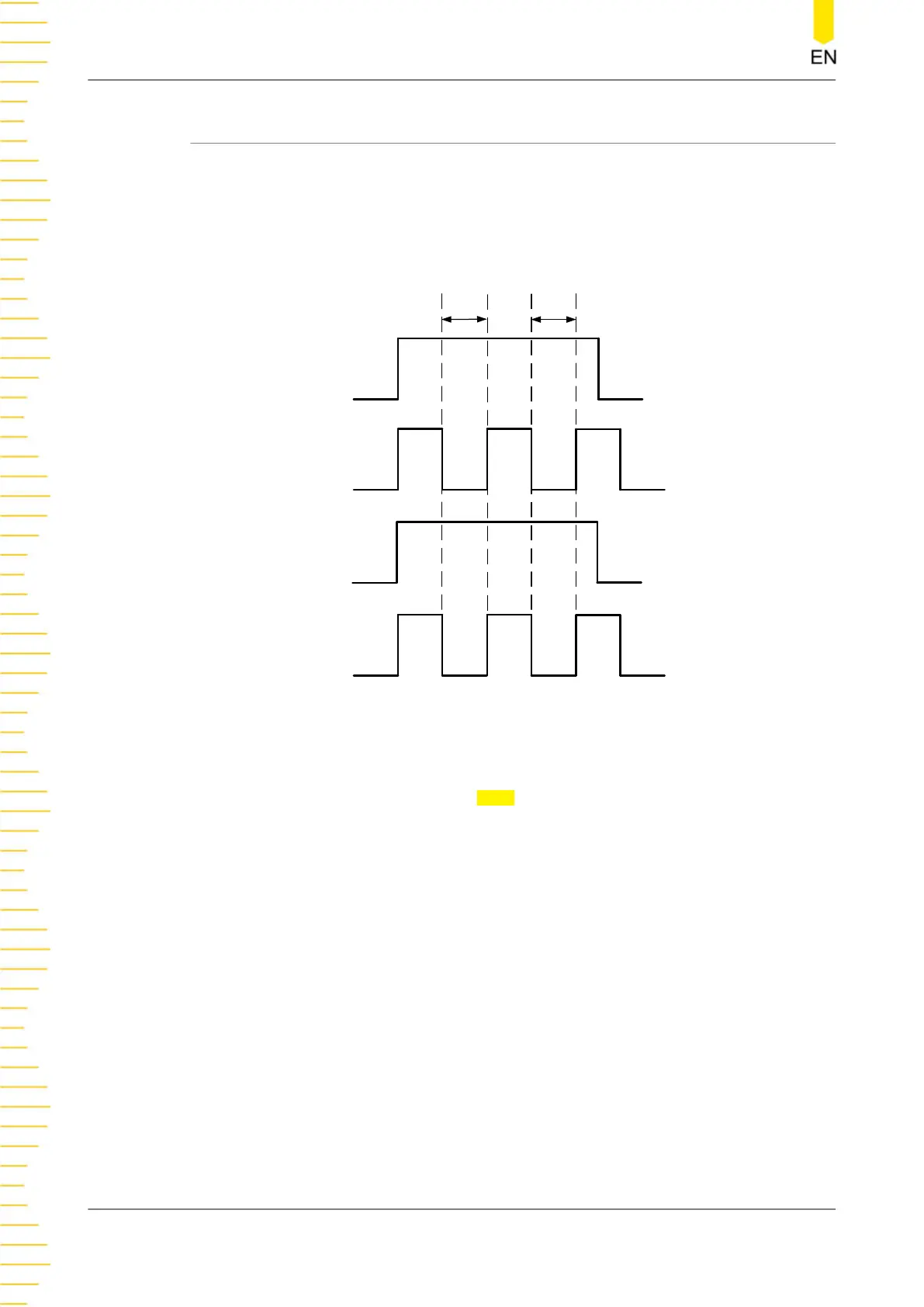

Figure 8.11 Duration Trigger

Trigger Type

Click or tap the drop-down button of

Type to select "Duration".

Triggering the Oscilloscope

DHO800 User Guide
