Rigol DHO800 Series User Manual

• Period: defined as the time between the middle threshold points of two
consecutive, like-polarity edges.
• Frequency: defined as the reciprocal of period.
• Rise Time: indicates the time for the signal amplitude to rise from the threshold
lower limit to the threshold upper limit.
• Fall Time: indicates the time for the signal amplitude to rise from the threshold
upper limit to the threshold lower limit.
• +Width: indicates the time between the threshold middle value of a rising edge
to the threshold middle value of the next falling edge.
• -Width: indicates the time between the threshold middle value of a falling edge
to the threshold middle value of the next rising edge.
• +Duty: indicates the ratio of the positive pulse width to the period.
• -Duty: indicates the ratio of the negative pulse width to the period.
• Tvmax: indicates the time that corresponds to the maximum value of the
waveform (Vmax).
• Tvmin: indicates the time that corresponds to the minimum value of the
waveform (Vmin).
The default values for threshold upper limit, threshold middle value, and threshold
lower limit are 90%, 50%, and 10%, respectively.
10.2.1.2 Count Values
The default values for threshold upper limit and threshold lower limit are 90% and
10%, respectively.

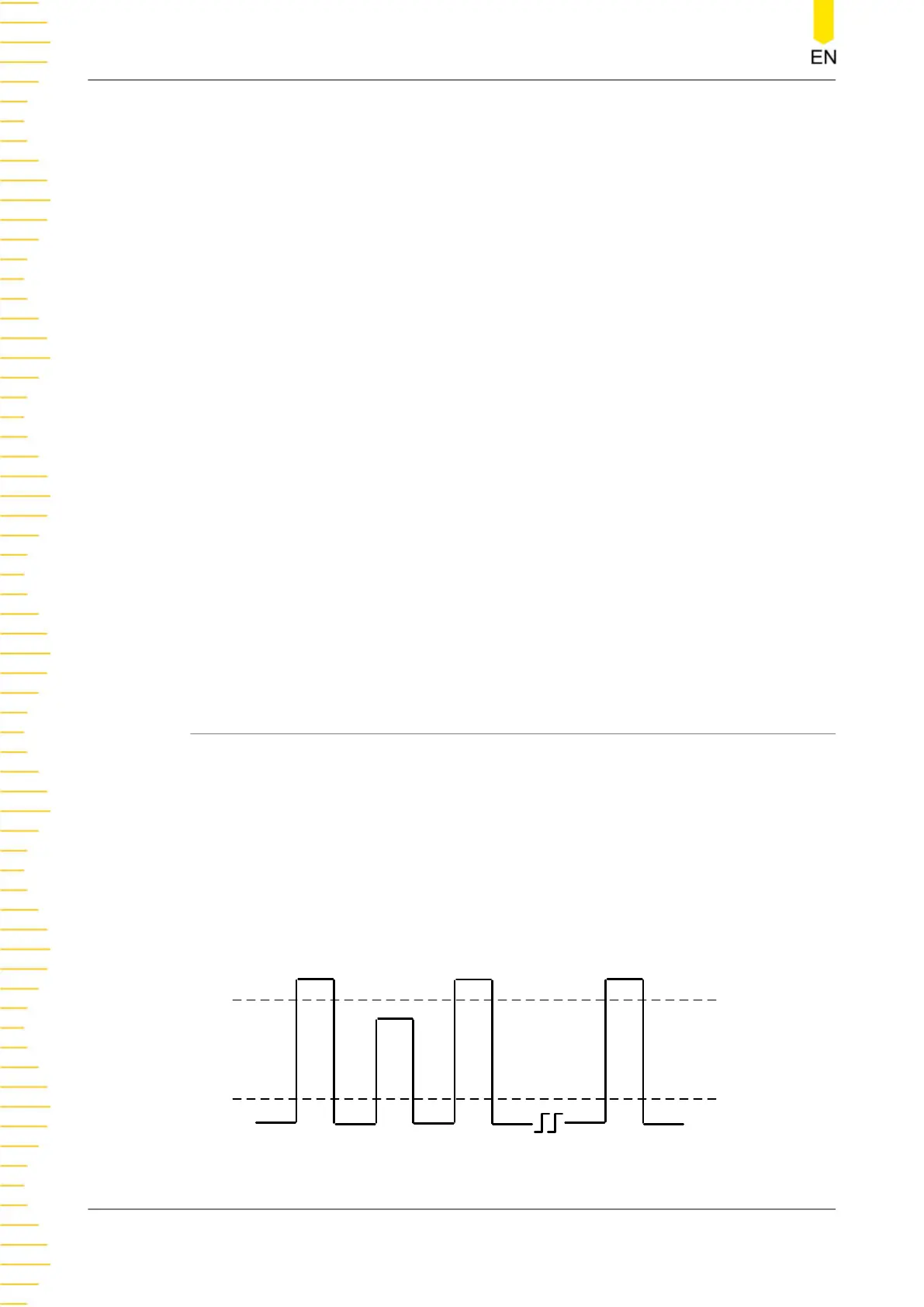

Positive Pulse Count
It is specified as the number of positive pulses that rise from under the threshold
lower limit to above the threshold upper limit.
Positive Pulse Count = n
1 n2
Threshold
Upper Limit
Threshold
Lower Limit
Measurements
DHO800 User Guide
128
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
