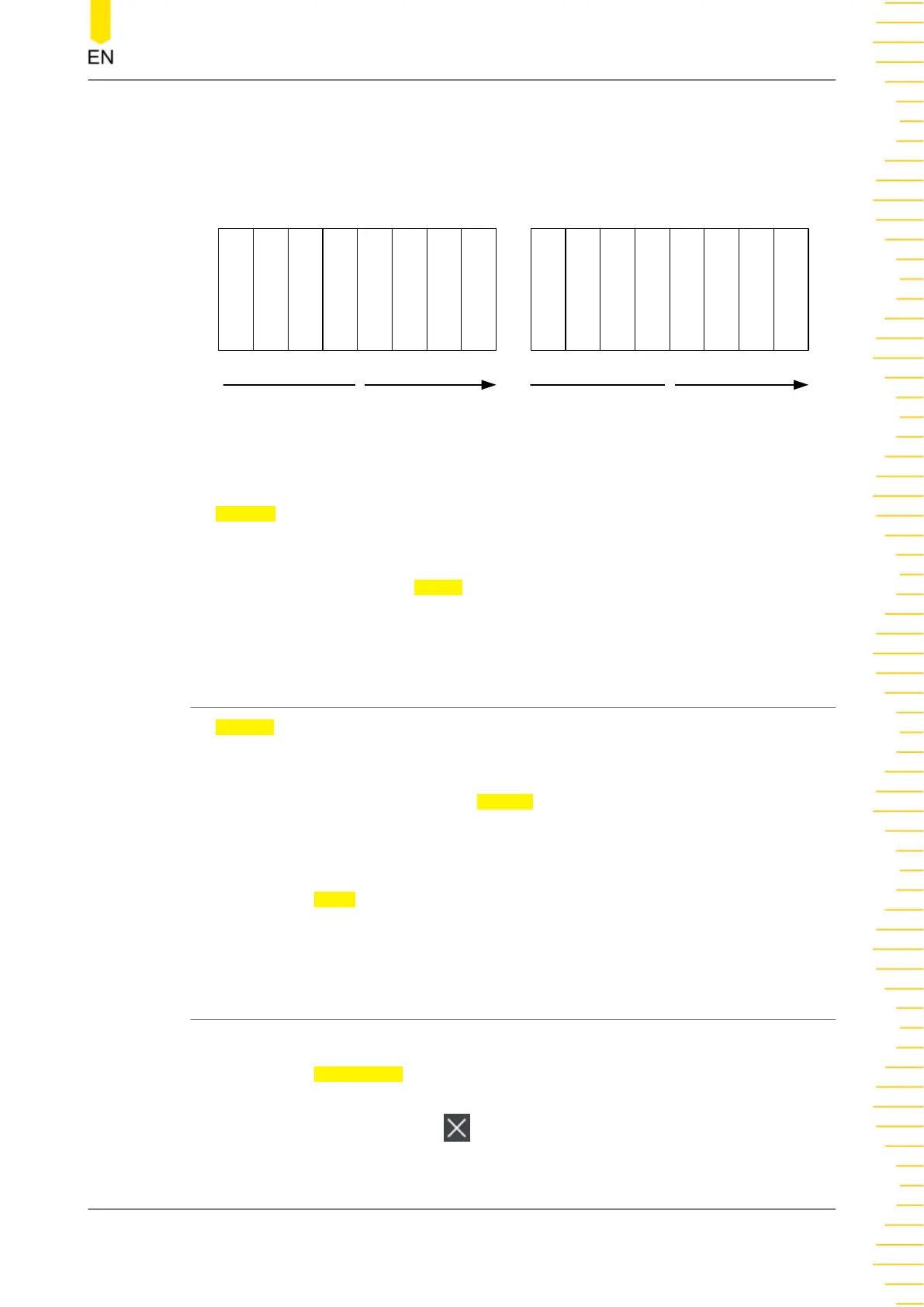

Rigol DHO800 Series User Manual

• LSB: indicates Least Significant Bit transmission sequence, i.e. the lowest bit of
the data is transmitted first.
• MSB: indicates Most Significant Bit transmission sequence, i.e. the highest bit of
the data is transmitted first.
bit0 bit1 bit2 bit3 bit4 bit5 bit6 bit7 bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
t
t
LSB MSB
Polarity
In
Polarity, select "Positive" or "Negative" as the data polarity.
Width Setting
Click or tap the input field of
Width, and then use the pop-up numeric keypad to set
the length of the data. You can also use the corresponding multipurpose knob to set
the value. The setting range is from 4 to 32. By default, it is 8.
15.4.3 Display-related Settings
In Decode menu, set the following display-related parameters.
Set the Display Format
Click or tap the drop-down button of
Format to select the display format of the bus
data and event table. The available options include "Hex", "Dec", "Bin", and "ASCII".
Set the Label Display
Click or tap the
Label on/off switch to enable or disable the label display of the
decoding bus. When enabled, the bus label will be displayed at the upper-left side of
the bus (when the bus display is enabled). The label shows the current bus type.
15.4.4 Event Table
Open or Close the Event Table
Click or tap the
Event Table on/off switch to enable or disable the display of the
event table. When enabled, the event table is displayed as shown in the figure below.
You can also click or tap the icon
at the upper-right corner of the table to close
the event table.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO800 User Guide
183
