4.4.2 Rear Panel Overview
3
2
4
6
5
1
7
8

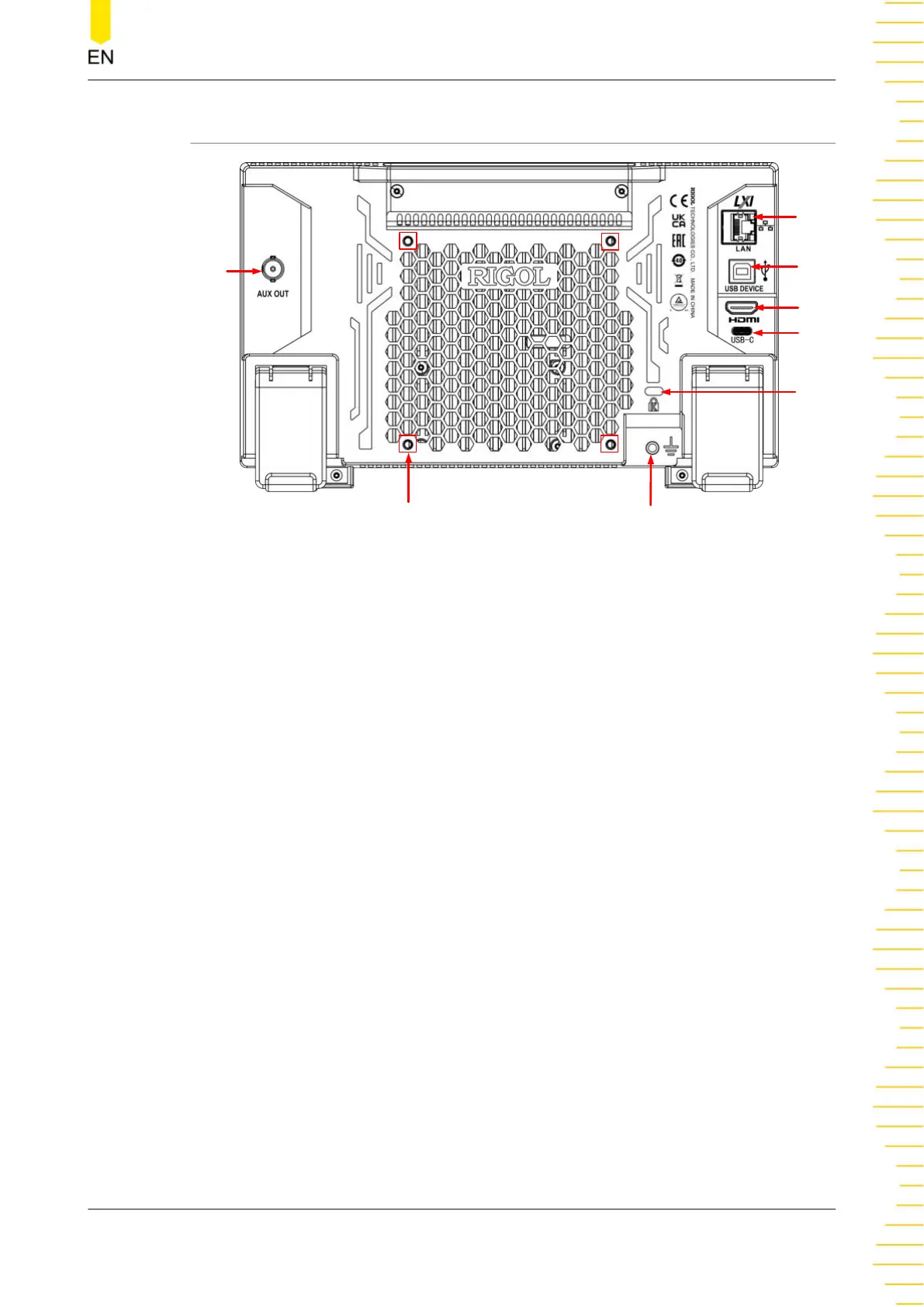

Figure 4.11 Rear Panel
1. AUX OUT
- Trigger output:
After the AUX output is set to "TrigOut", the oscilloscope generates a trigger
and outputs a signal that can reflect the current capture rate of the oscilloscope
via this interface. Connect the signal to a waveform display device and measure
the frequency of the signal. The measurement result is the same as the current
capture rate.
- Pass/Fail:
After the AUX output is set to "PassFail", in the pass/fail test, the instrument will
output a pulse via the [AUX OUT] connector when a passed or failed waveform
is detected during the pass/fail test.
2. LAN
Connect the instrument to network via this interface. The instrument conforms to
the standards specified in LXI Device Specification 2011. Its test system can be
built quickly. Then you can control the instrument through using Web Control to
send the SCPI commands. When update is available, you can perform online
upgrading for the system software of the instrument via the LAN interface.
3. USB DEVICE
Connect the instrument to the PC via this interface. Then you can use the PC
software to send the SCPI commands or use the user-defined programming to
control the instrument.
Quick Start
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO800 User Guide
23
