4 Components cobas b 221 system
Measuring chamber cartridge
Measuring chamber cartridge
Replacing the measuring chamber cartridge
1 Remove the top cover.
2 Disconnect all tubes on the measuring chamber cartridge (see below, D).
Activate the function program h [System] > [Utilities] > [Maintenance] >
[Change MC cartridge] to position all valve actuators correctly.
A Five crews holding the measure chamber
cartridge
B MSS output pump
C Main pump
D Tube s
E Chamber outlet tube of the ISE measuring
chamber
F Chamber outlet tube of the BG measuring
chamber

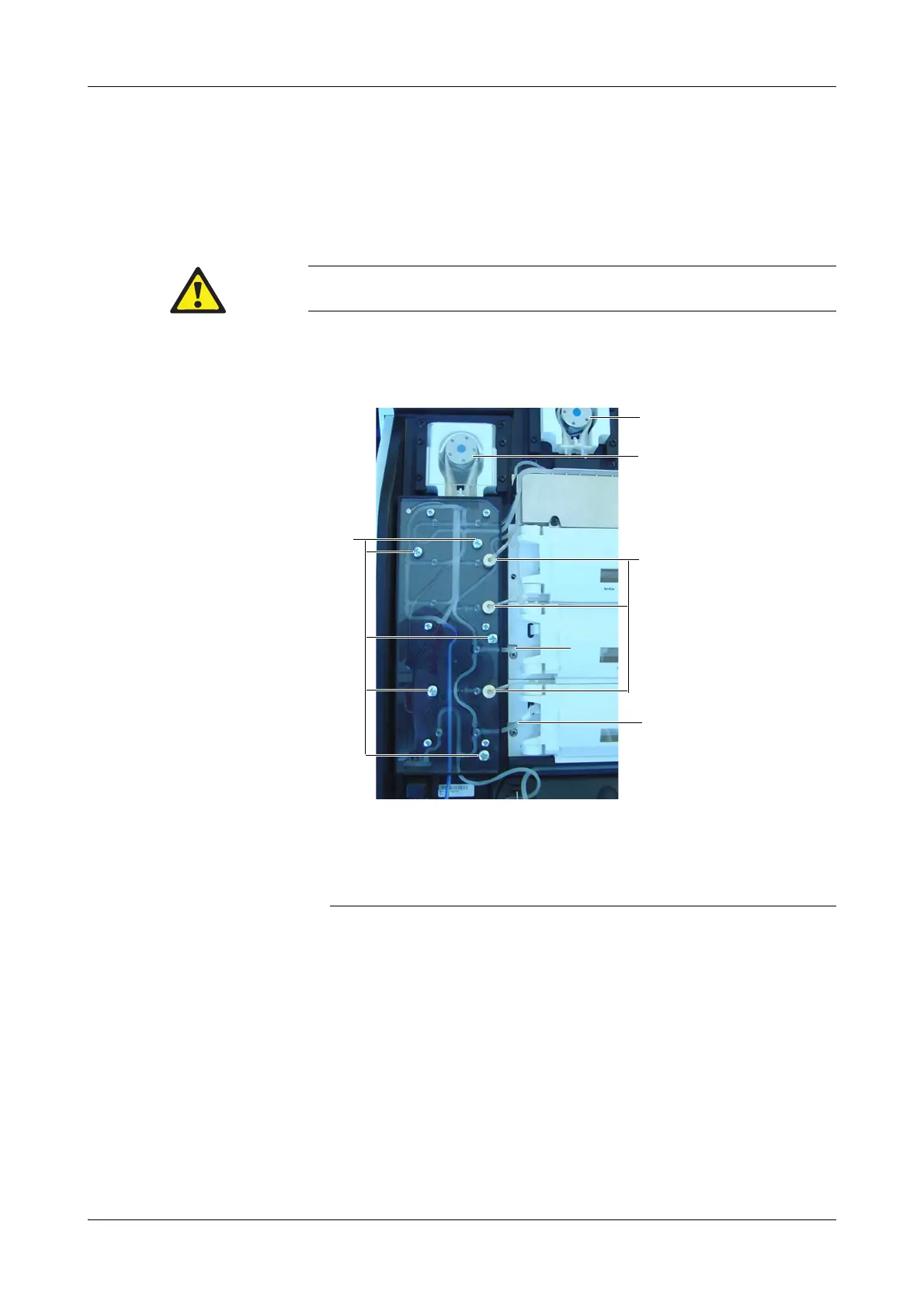

Figure B-29 Measuring chamber cartridge - 1
B
A
C
D
E
F
