4 Components cobas b 221 system
T&D system (Turn & Dock)
Replacing the plug control
1 Disassemble T&D module.
e For instructions, see Replacing the T&D module on page B-21.
2 Remove T&D disk.
e For instructions, see Replacing the T&D disk on page B-26.
3 Rotate needle to the right with the needle holder and remove it.
4 Unplug the SCD (Sample Container Detection) cable on the actuator board and
slide it out of the holder.
Various components of the cobas b 221 system, such as T&D module, tubes, waste bottle, waste
separator etc., contain liquid biological residues after use that may cause infection.
Handle these components with care and avoid skin contact. To avoid direct contact with biological
materials, always wear appropriate protective equipment such as lab clothing, protective gloves,
safety glasses and, if necessary, a face mask. Additionally a face shield must be worn if there is a
potential of a splashback. Appropriate disinfection and sterilization procedures must be followed.
Always wear gloves when working with the instrument! The tubes may drip a little after being
disconnected. Remove excess fluids with a clean, absorbent cloth.

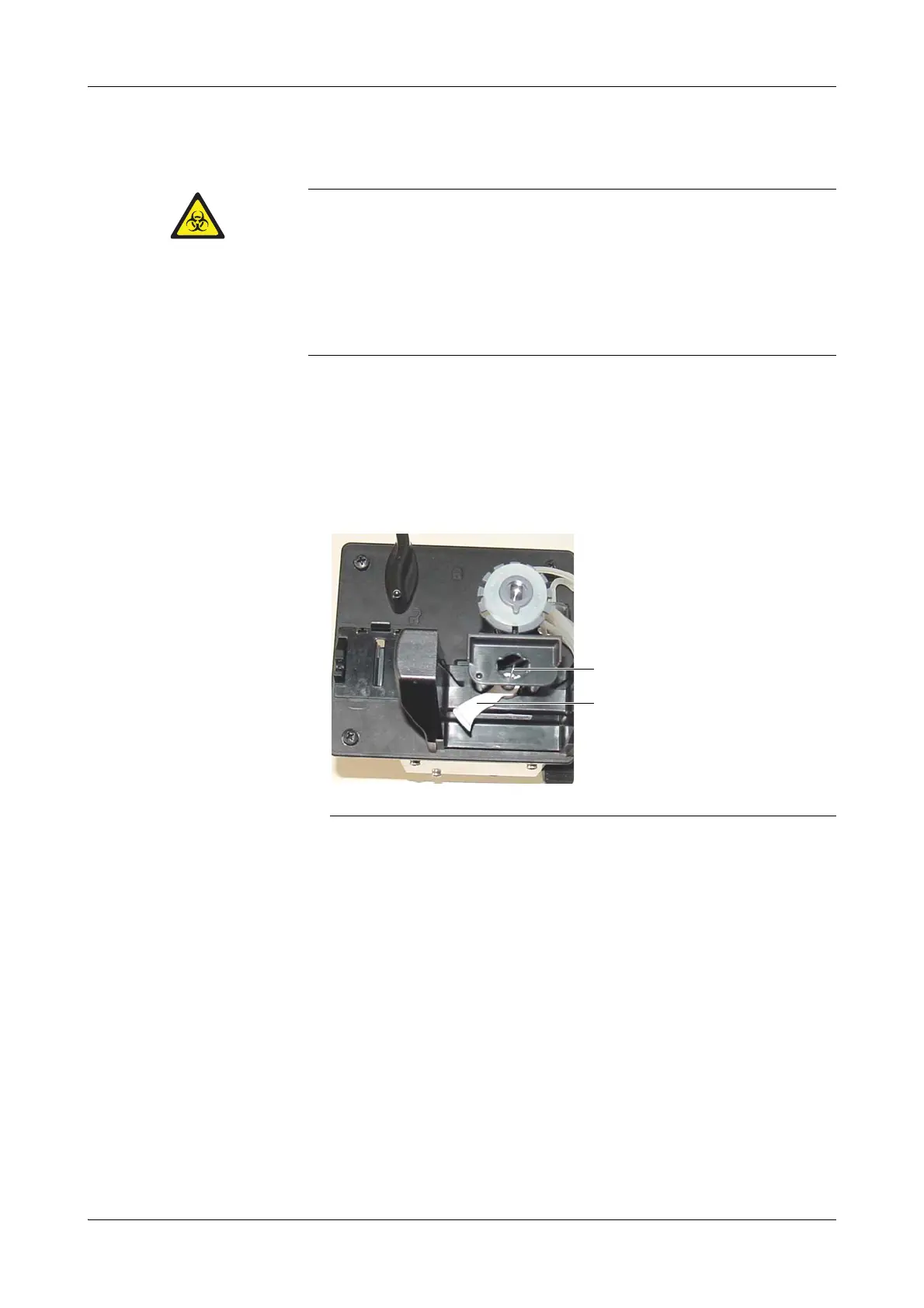

A Needle B Needle holder
Figure B-12 Needle
A
B
