cobas b 221 system 2 Fluid actions

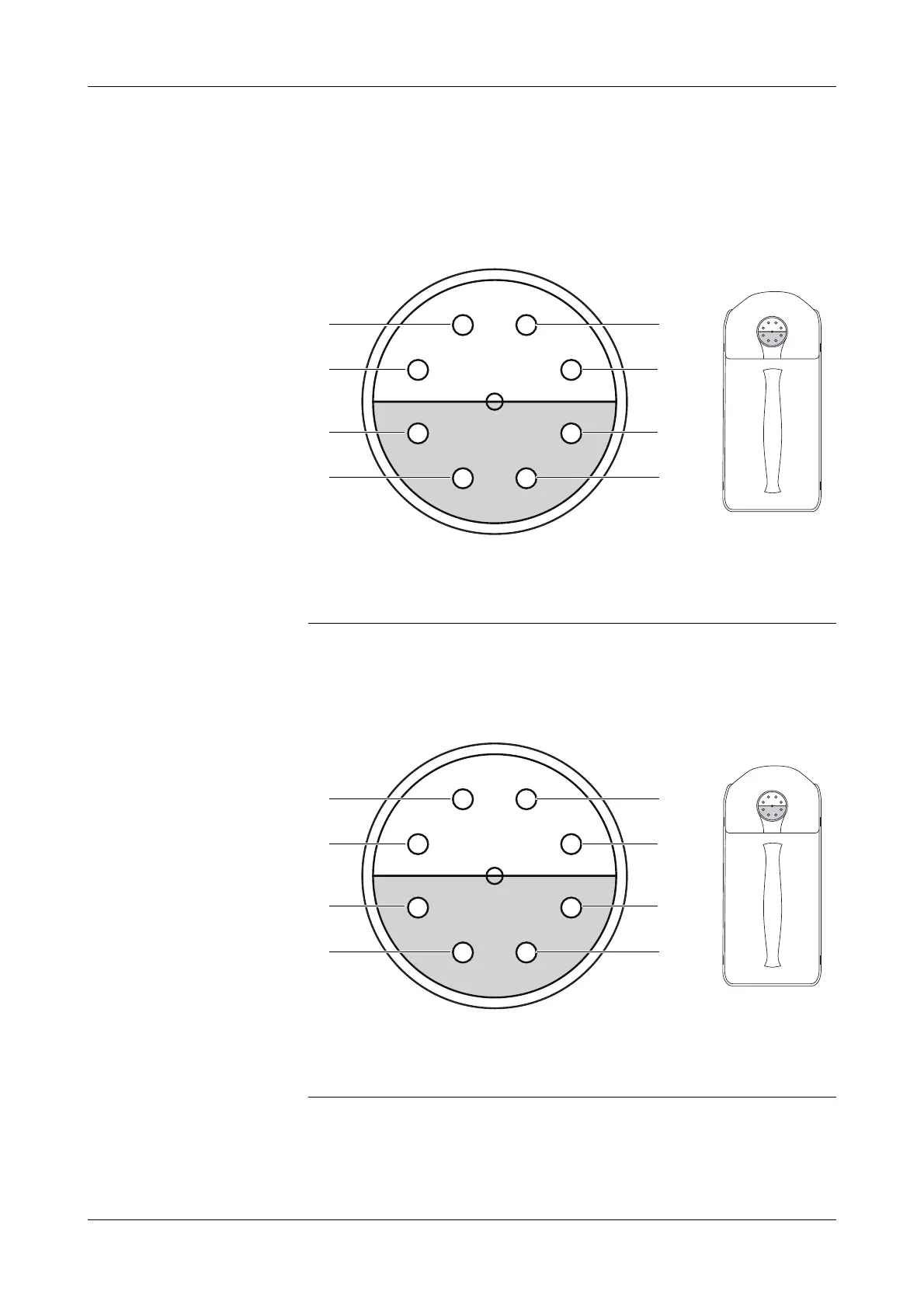

Pin assignment of S2 and S3 Fluid Packs
Pin assignment of S2 and S3 Fluid Packs
S2 Fluid Pack
S3 Fluid Pack A (cobas b 221<5/6> systems only)
A O
2
zero point solution
B CAL B (calibration solution)
C CAL A (calibration solution)
D empty
E ISE reference solution
F BG reference solution
G Na conditioning solution
H Cleaning solution
Figure A-7 Pin assignment of S2 Fluid Pack
C
D
F
E
B
A
G
H
A CAL 2 (calibration solution 2)
B MSS standby solution
C CAL 1 (calibration solution 1)
D empty
E empty
F MSS reference solution
G CAL 4 (calibration solution 4)
H CAL 3 (calibration solution 3)
Figure A-8 Pin assignment of S3 Fluid Pack A
C
D
F
E
B
A
G
H
