4 Components cobas b 221 system
T&D system (Turn & Dock)
Replacing the sample inlet path
1 Remove the top cover and T&D cover of the cobas b 221 system.
2 Rotate the T&D lock on the T&D module 90 degrees to the right.
e For details, see Figure B-7 on page B-24.
3 Carefully pull the sample inlet path out to the right and remove it.
Use the reverse order for assembly.
Replacing the bypass nipple
1 Remove the cobas b 221 system top cover.
2 Slide the bypass holder down.
e For details, see Figure B-8 on page B-25.
Various components of the cobas b 221 system, such as T&D module, tubes, waste bottle, waste
separator etc., contain liquid biological residues after use that may cause infection.
Handle these components with care and avoid skin contact. To avoid direct contact with biological
materials, always wear appropriate protective equipment such as lab clothing, protective gloves,
safety glasses and, if necessary, a face mask. Additionally a face shield must be worn if there is a
potential of a splashback. Appropriate disinfection and sterilization procedures must be followed.
Always wear gloves when working with the instrument! The tubes may drip a little after being
disconnected. Remove excess fluids with a clean, absorbent cloth.

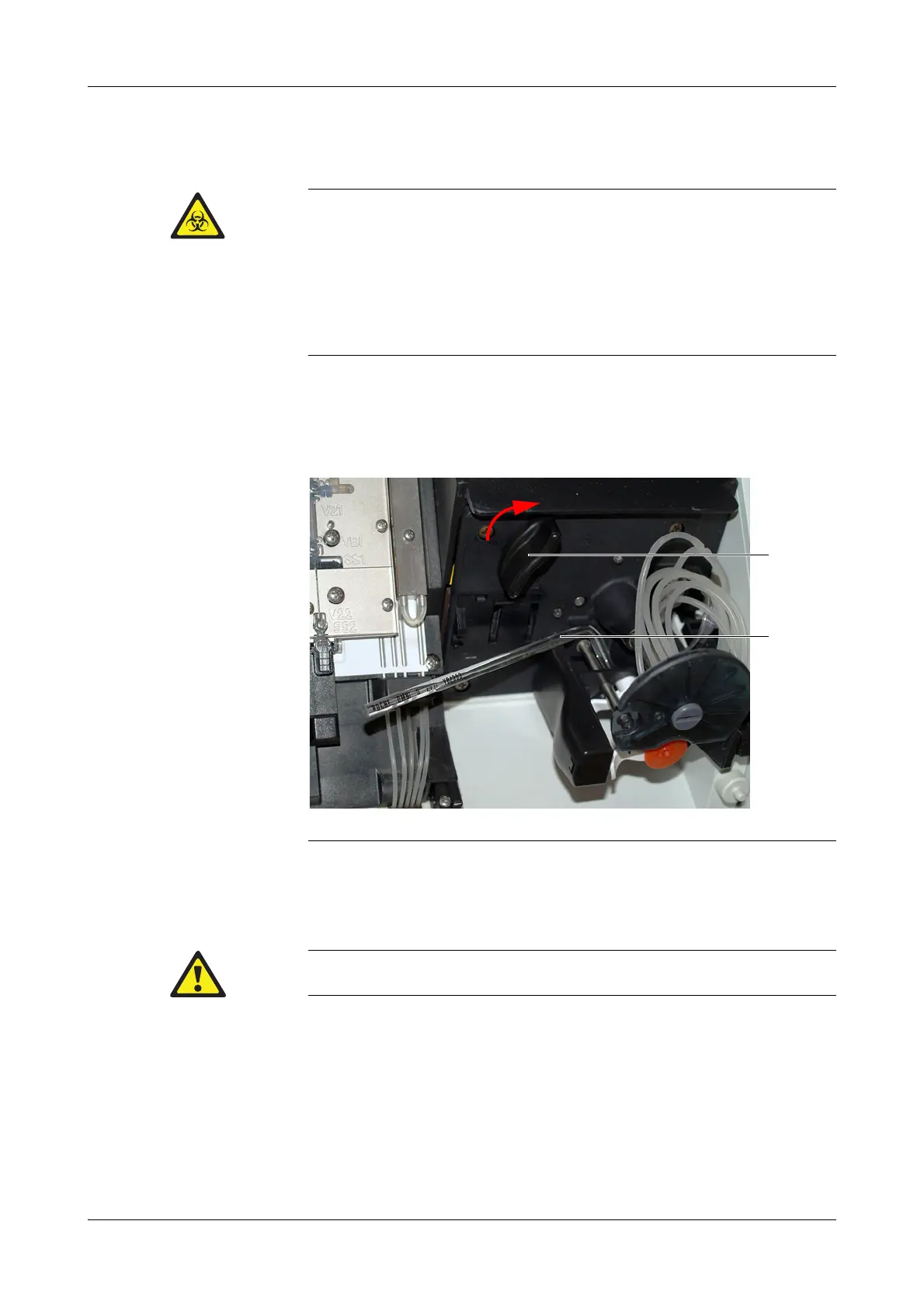

A T&D lock B Sample inlet path
Figure B-7 Replacing the sample inlet path
A
B
After replacing the sample inlet path start a T&D needle calibration (Component test > Aggregates
> T&D module).
