4 Components cobas b 221 system
Bottle compartment
4 Pull micro switch module forward.
5 Disconnect the two plug connectors and remove the micro switch module.
Use the reverse order for assembly.
Replacing the bacteria filter
1 Open the bottle compartment cover.
2 Slide the bacteria filter left or right and pull it forward.
Use the reverse order for assembly.
Replacing the Transponder Control (waste, S1, S2, S3)
1 Remove the rear panel of the instrument.
e For instructions, see Removing the rear panel on page B-20.
2 Pull the AutoQC drawer out and remove the ampoule block.
A Holding screw B Micro switch

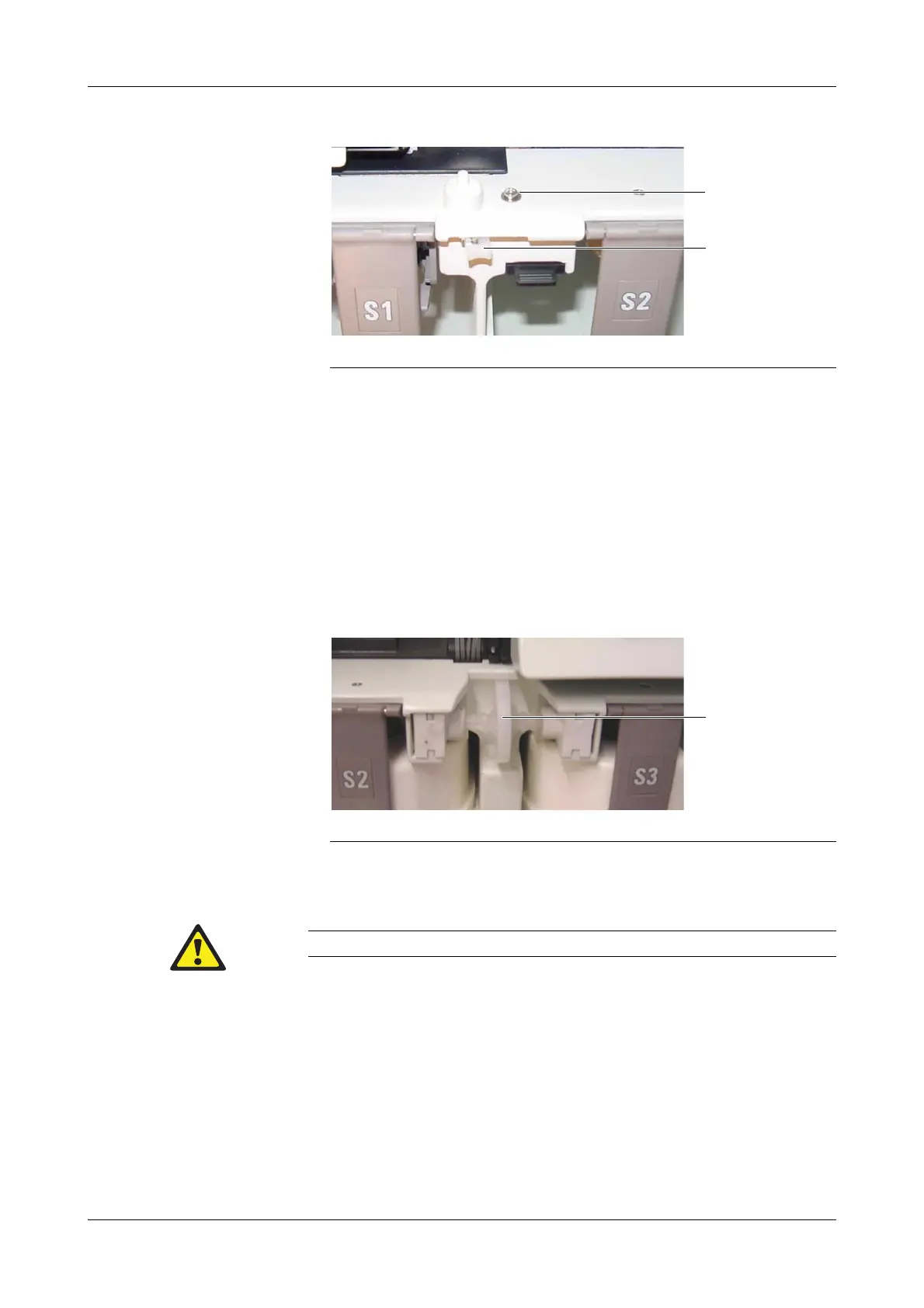

Figure B-53 Micro switch
A
B
A Bacteria filter
Figure B-54 Bacteria filter
A
Install the bacteria filter with the "Inlet" label pointing to the left.
