4 Components cobas b 221 system
Sample distributor (SD)
14 Disconnect the sample sensor board from the mainboard.
15 Pull the liquid connector of the sample distributor down.
e For details, see Figure B-22 on page B-36.
16 Unscrew the four screws holding the sample distributor (see below, A).
17 Pull the sample distributor unit forward and remove it.
Use the reverse order for assembly.

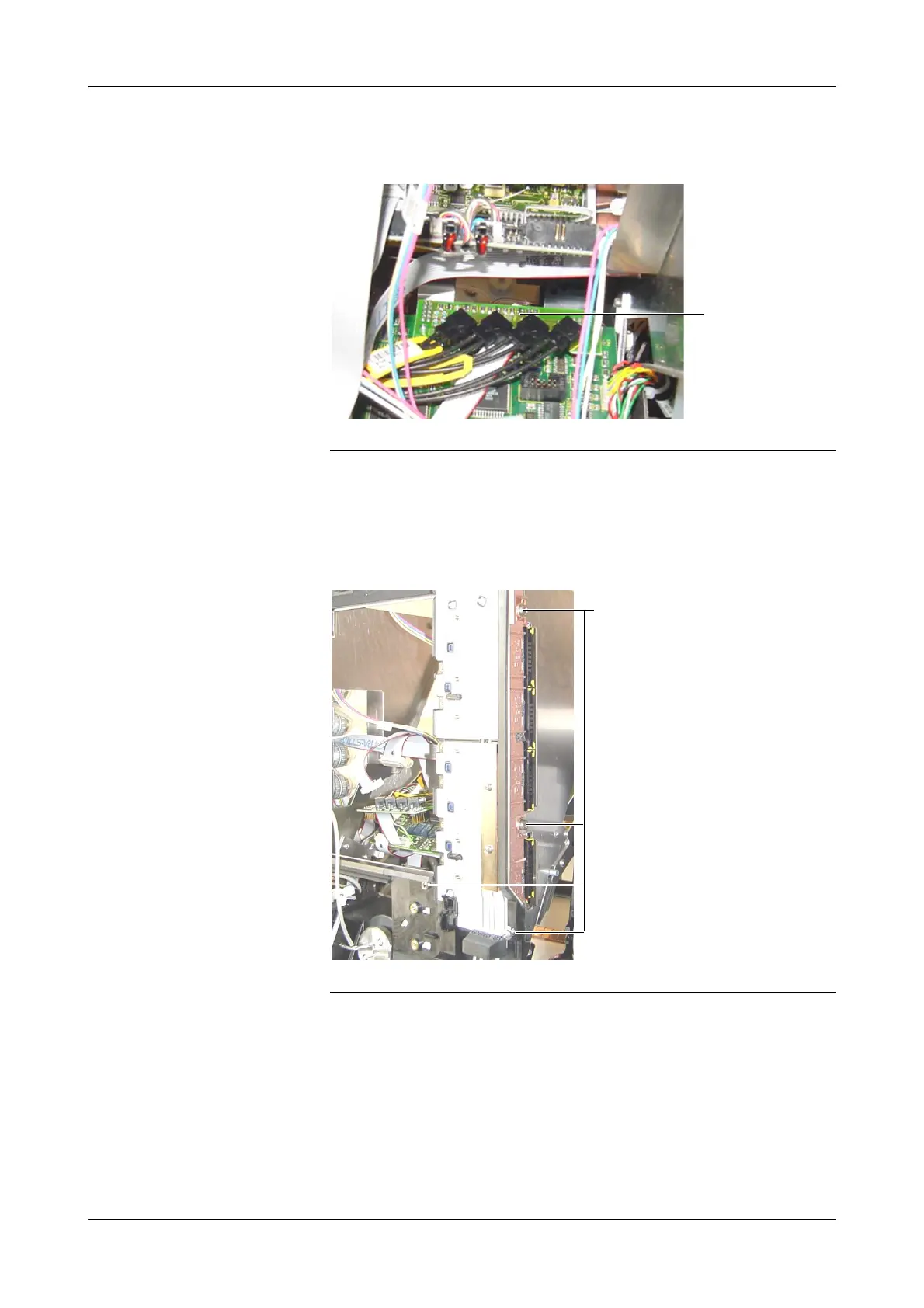

A Sample sensor board
Figure B-23 Sample sensor board
A Four screws
Figure B-24 Fastening screws of the sample distributor
A
A
