Rockwell Automation 1768-L43 User Manual

Publication IASIMP-QS003B-EN-P - October 2009 59
Prepare the Distributed POINT I/O Hardware Chapter 3

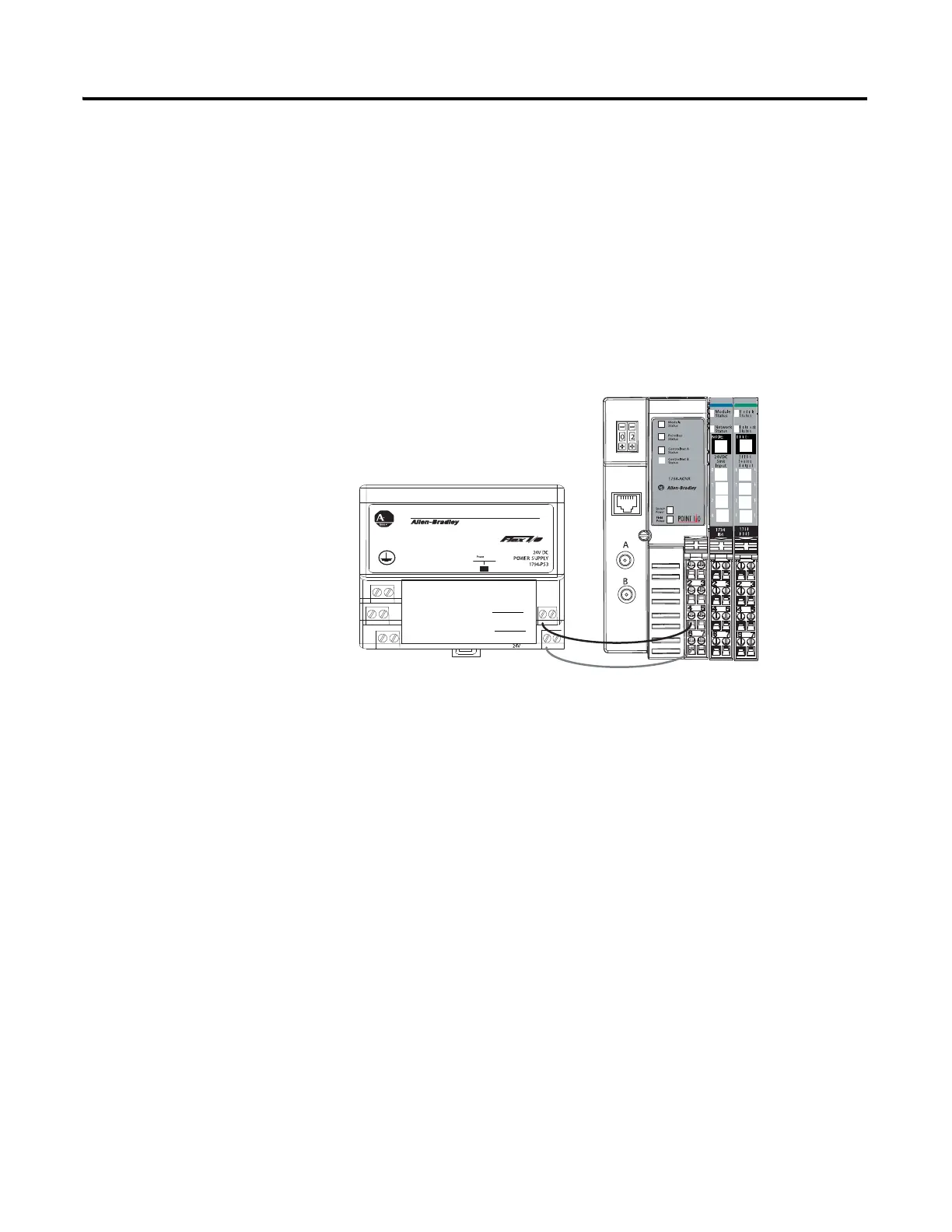

Wire the Adapter and I/O Modules to the Power Supply
Required for EtherNet/IP and DeviceNet Systems
1. Connect the 12/24V dc
common and power wires
from the power supply to
the adapter.
Refer to the installation
instructions for the
1734-AENT or
1734-ADN adapters.
2. Refer to the individual
POINT I/O installation
instructions for wiring
the I/O modules.
3. Turn on incoming power.
COM
24V
