Rockwell Automation Publication 2715P-UM001C-EN-P - March 2019 39
Install the PanelView 5510 Terminal Chapter 2
Star Network Topology
A star network topology is a traditional EtherNet/IP network that includes
multiple devices that are connected to each other via an Ethernet switch.

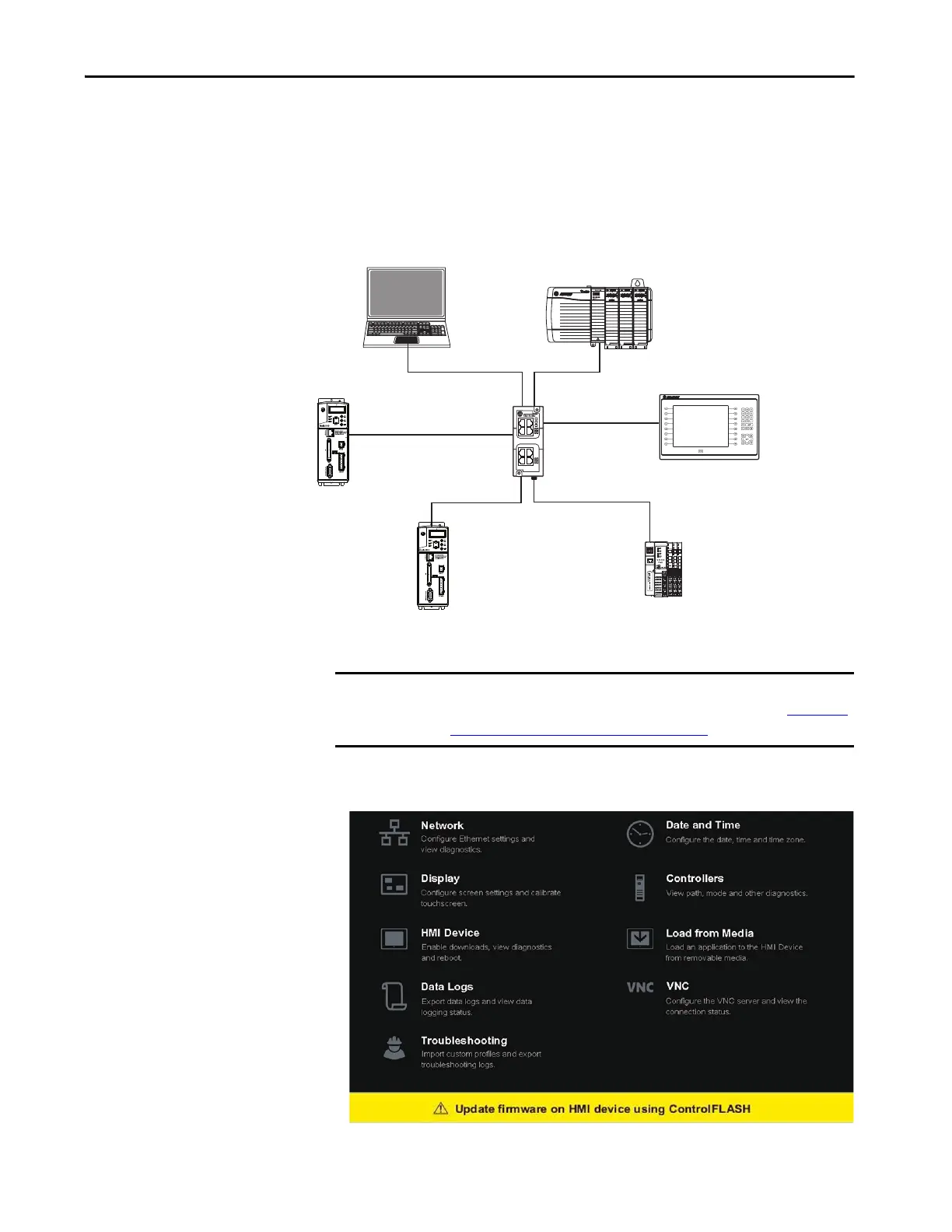

Figure 8 - PanelView 5510 Terminal in a Star Topology Network
Initial Startup
If you attempt to configure the terminal settings without updating the firmware,
the Settings menu shows an update firmware message at the bottom of the screen.
Computer
Stratix 6000™ Switch
1734-AENTR POINT I/O Adapter
with POINT I/O Modules
Kinetix 350 Drive
ControlLogix Controller with
1756-EN2T Module
PanelView 5510 Terminal
Connected Via One Ethernet Port
Kinetix 350 Drive
IMPORTANT You must configure the Ethernet settings and update the firmware before you
can download a View Designer project and use the terminal. See Update the
Firmware Before You Use the Terminal on page 40.
