74 Rockwell Automation Publication 2715P-UM001C-EN-P - March 2019
Chapter 4 Monitor and Manage Control System Alarms

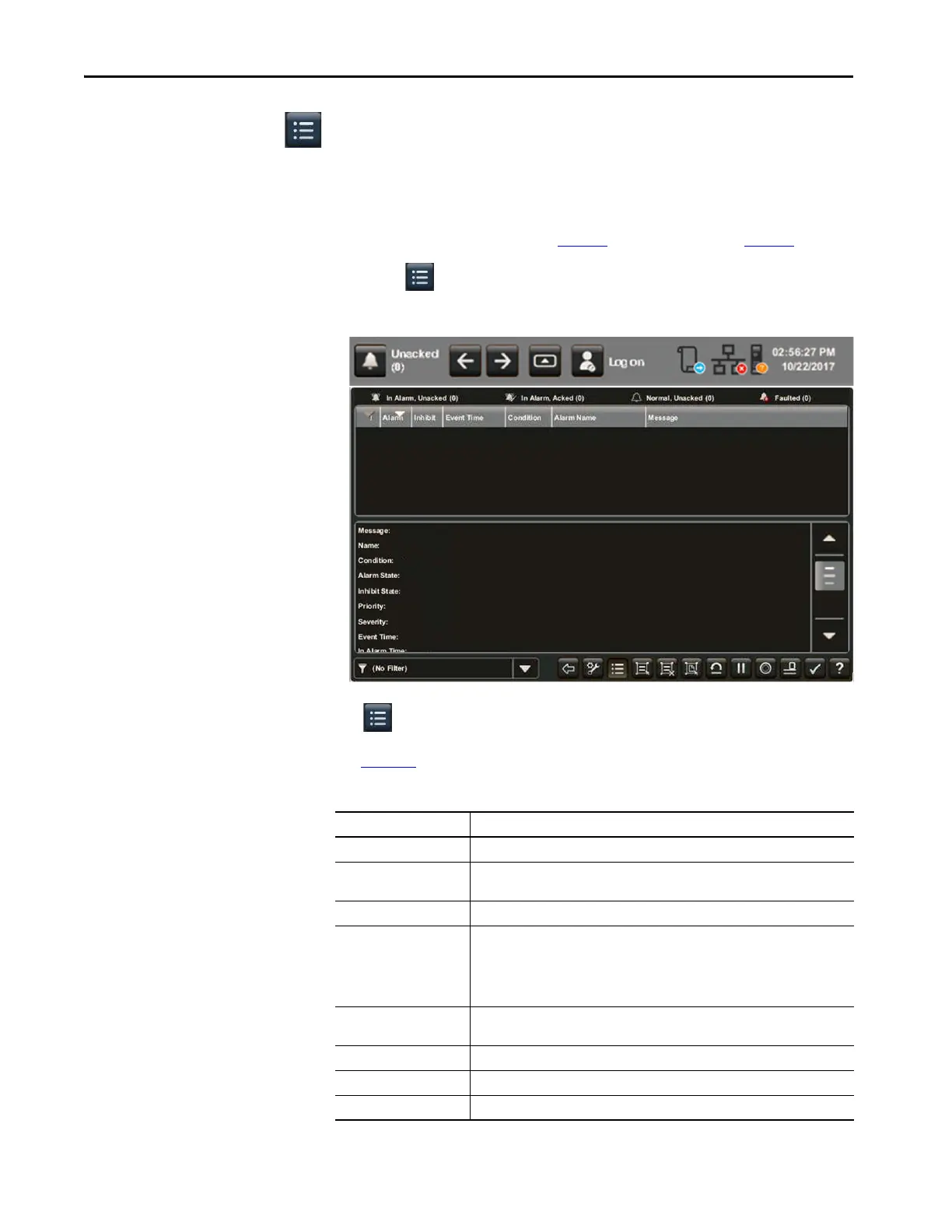

Alarm Detail Pane
Descriptions
The details pane shows details for the selected alarm condition of a selected
alarm. Condition details display the selected alarm condition in the alarm
manager table.
To view the details pane for a selected alarm, follow these steps.
1. Open the Alarm Summary (page 72
) or Alarm Manager (page 73)screen.
2. Tap .
The details pane displays a list of alarm states and conditions.
Tap again to toggle off the details pane.
See Tab l e 20
for a description of the alarm details.
Table 20 - Alarm Detail Descriptions
Alarm Detail Description
Acknowledge Time The time the selected alarm was acknowledged.
Alarm Class The user-defined class that is assigned to the alarm in the Studio 5000 Logix Designer
project.
Alarm Count The number of times the alarm condition has entered the In Alarm state.
Alarm State The state of the alarm condition:
• Normal Unacknowledged (Normal, Unacked)
• In Alarm Acknowledged (In Alarm, Acked)
• In Alarm Unacknowledged (In Alarm, Unacked)
• Normal Acknowledged (Acknowledge)
Condition • Analog conditions include: HIHI, HI, LO, LOLO, ROC_POS, and ROC_NEG
• Discrete conditions include: TRIP and TRIP_L
Current Value The current tag input value that results in the alarm state.
Disable Time The time the selected alarm was disabled.
Enable Time The time the selected alarm was enabled.
