Parameterization example
The output of a LOGO! has to be switched on every year
on March 1 and switched off on April 4, switched on again
on July 7 and switched off on November 19. For this you
require 2 twelve-month time switches each of which is con-
figured for one of the on periods. The outputs are then
linked by an OR block.
B01:No
MM.DD
On=03.01
Off=04.04
B02:No
MM.DD
On=07.07
Off=11.19

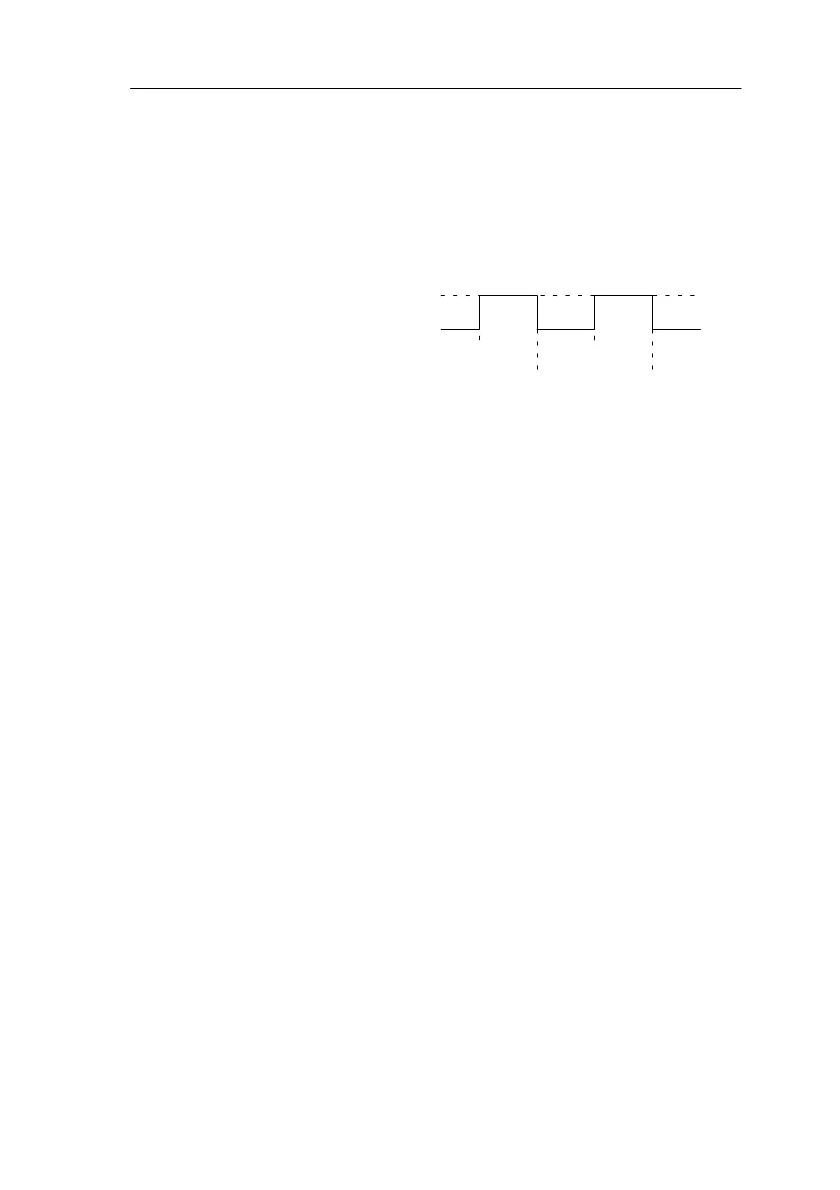

On
Off
1 March
4 April
7 July
19 November
B01
B02
LOGO! Functions

Siemens LOGO! 24 Specifications

General

Dimensions	90 x 72 x 55 mm
Relay Outputs	4
Programming	LOGO! Soft Comfort
Mounting Type	DIN Rail
Protection Class	IP20
Inputs	8 Digital
Outputs	4 Relay
Output Current	10 A per relay output
Operating Temperature	0 ... 55 °C
Display	LCD with backlight
