LOGO! Manual
A5E00067781 01
116

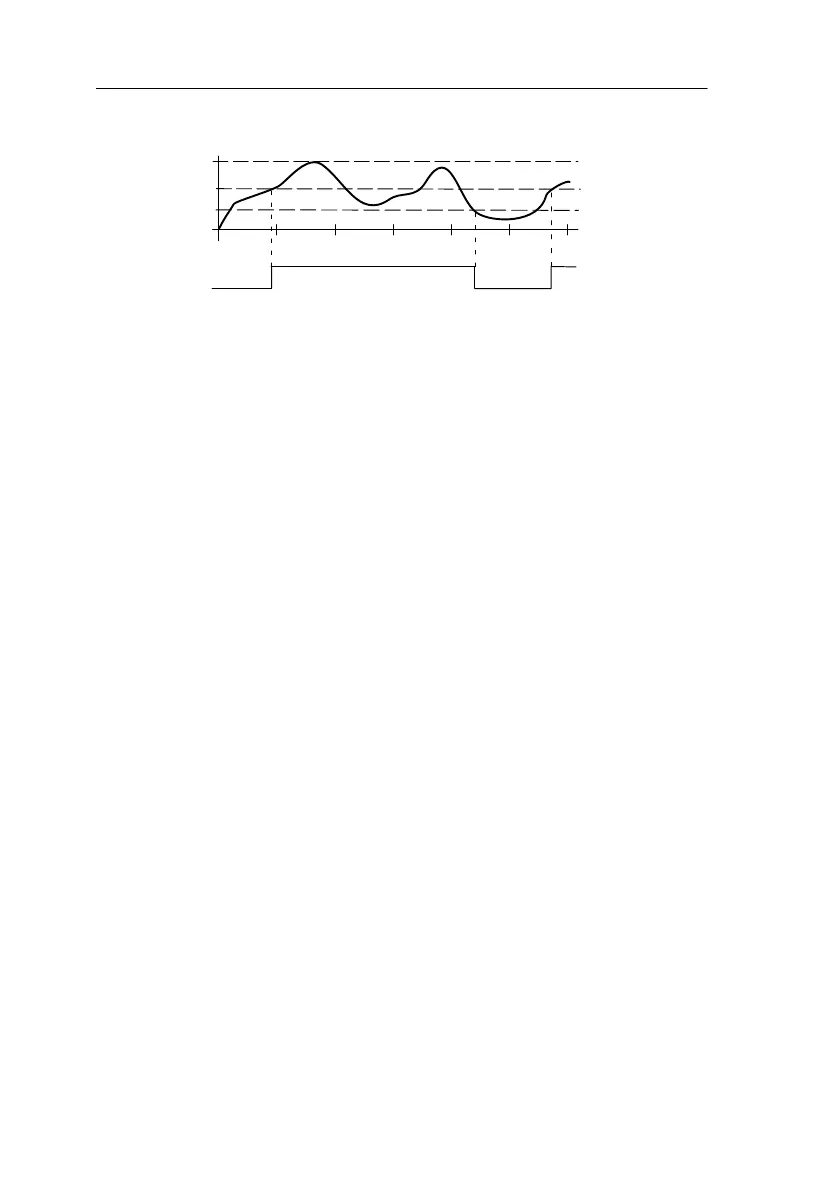

Timing diagram
Q
1000
0Ax
SW
SW
Description of function
The function reads in the analog value AI1 or AI2.
The Offset parameter is then added to the analog value.
This value is then multiplied by the Gain parameter.
If this value exceeds the on threshold (SW), the output Q
is set to 1.
Q is reset to 0 again if the value violates the off threshold
(SW ).
LOGO! Functions

Siemens LOGO! 24 Specifications

General

Dimensions	90 x 72 x 55 mm
Relay Outputs	4
Programming	LOGO! Soft Comfort
Mounting Type	DIN Rail
Protection Class	IP20
Inputs	8 Digital
Outputs	4 Relay
Output Current	10 A per relay output
Operating Temperature	0 ... 55 °C
Display	LCD with backlight
