13
LOGO! Manual
A5E00067781 01

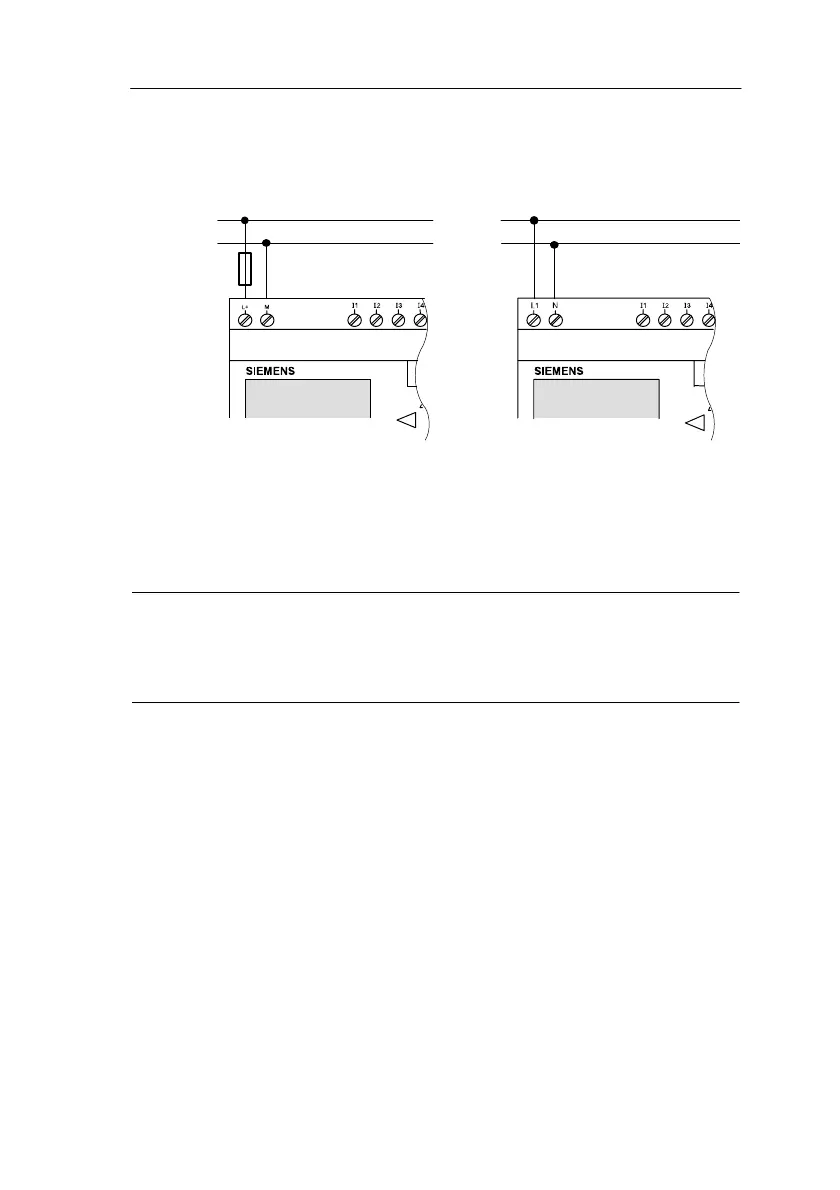

Connecting
To connect LOGO! to the system, proceed as follows:
L1
L+
N
M
LOGO! 12/24...
LOGO! 230...
Protection by fuse
if required (recommended).
12/24 RC...: 0.8 A
24: 2.0 A
24 L: 3.0 A
Note
LOGO! has protective insulation. A ground terminal is not
necessary.
Installin
g
and Wirin
g
LOGO!

Siemens LOGO! 24 Specifications

General

Dimensions	90 x 72 x 55 mm
Relay Outputs	4
Programming	LOGO! Soft Comfort
Mounting Type	DIN Rail
Protection Class	IP20
Inputs	8 Digital
Outputs	4 Relay
Output Current	10 A per relay output
Operating Temperature	0 ... 55 °C
Display	LCD with backlight
