Configuration / diagnostics using remote mechanisms
6.3 Configuration using Web Based Management (WBM) and Command Line Interface (CLI)
SCALANCE X-200
Operating Instructions, 12/2011, A5E00349864-19
159
6.3.2 LED simulation
Display of the operating state
IE Switches X-200 have several LEDs that provide information on the operating state of the
devices. Depending on its location, direct access to the IE Switch X-200 is not always
possible. WBM therefore provides a simulated display of the LEDs.
In the dialog (see below), you can see a schematic representation of an IE Switch X-200 with
the existing modules and the corresponding LEDs. The send display is not displayed
realistically; in other words, the LEDs do not flash.

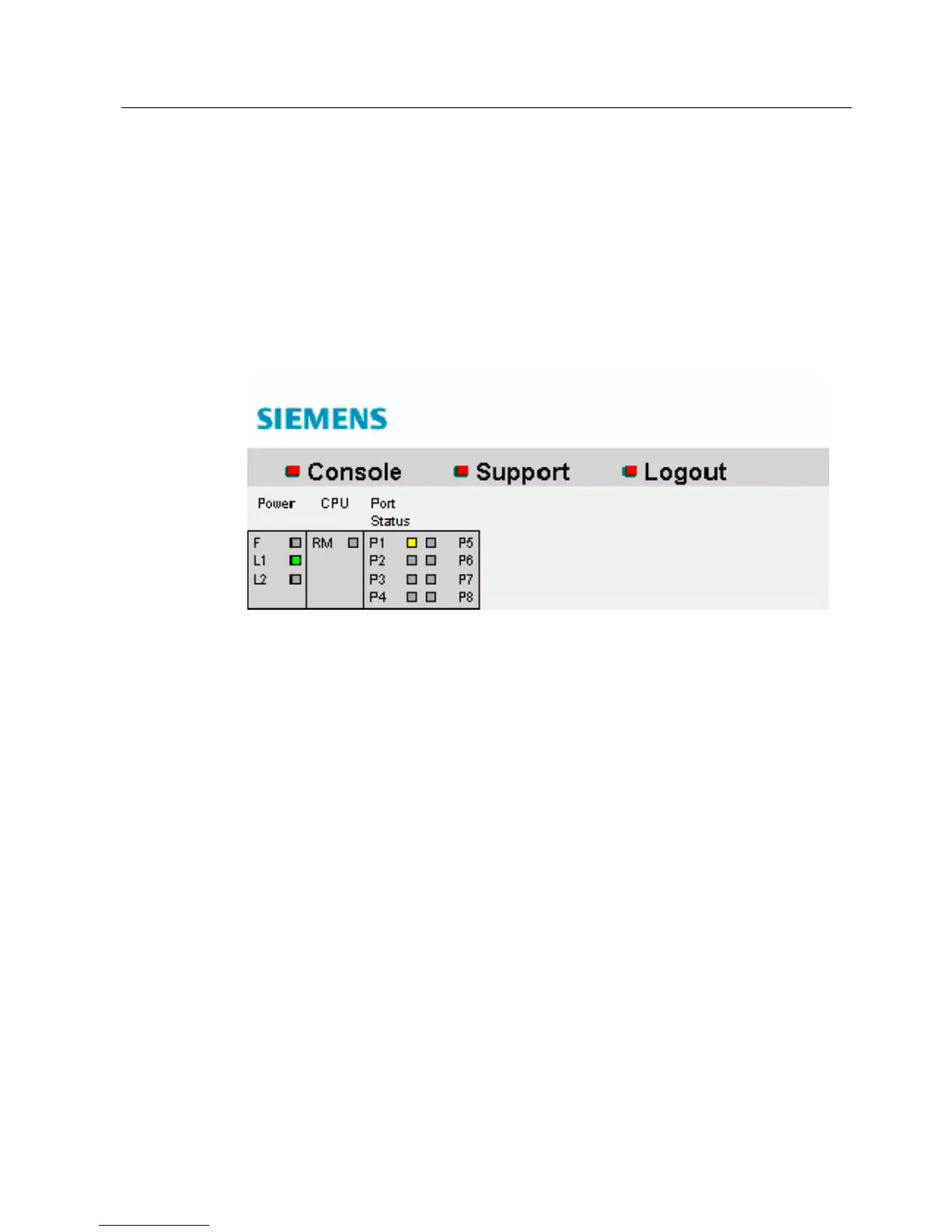

Figure 6-6 "LED Simulation" display
6.3.3 Working with WBM
Navigation bar
The upper menu bar of WBM provides 3 links:
● Console
This link opens a console window. In this window, you can enter CLI commands. You are
then connected to the switch over a TELNET connection.
● Support
This link initiates an Internet connection that takes you directly to the support pages of
SIEMENS AG. This is only possible when the PC supports an Internet connection.
● Log out
Closes the browser window.
