Product properties
3.18 SCALANCE X204IRT
SCALANCE X-200
Operating Instructions, 12/2011, A5E00349864-19
89
3.18 SCALANCE X204IRT
3.18.1 SCALANCE X204IRT product characteristics
Possible attachments
The SCALANCE X204IRT has four RJ-45 jacks for connecting end devices or other network
segments.

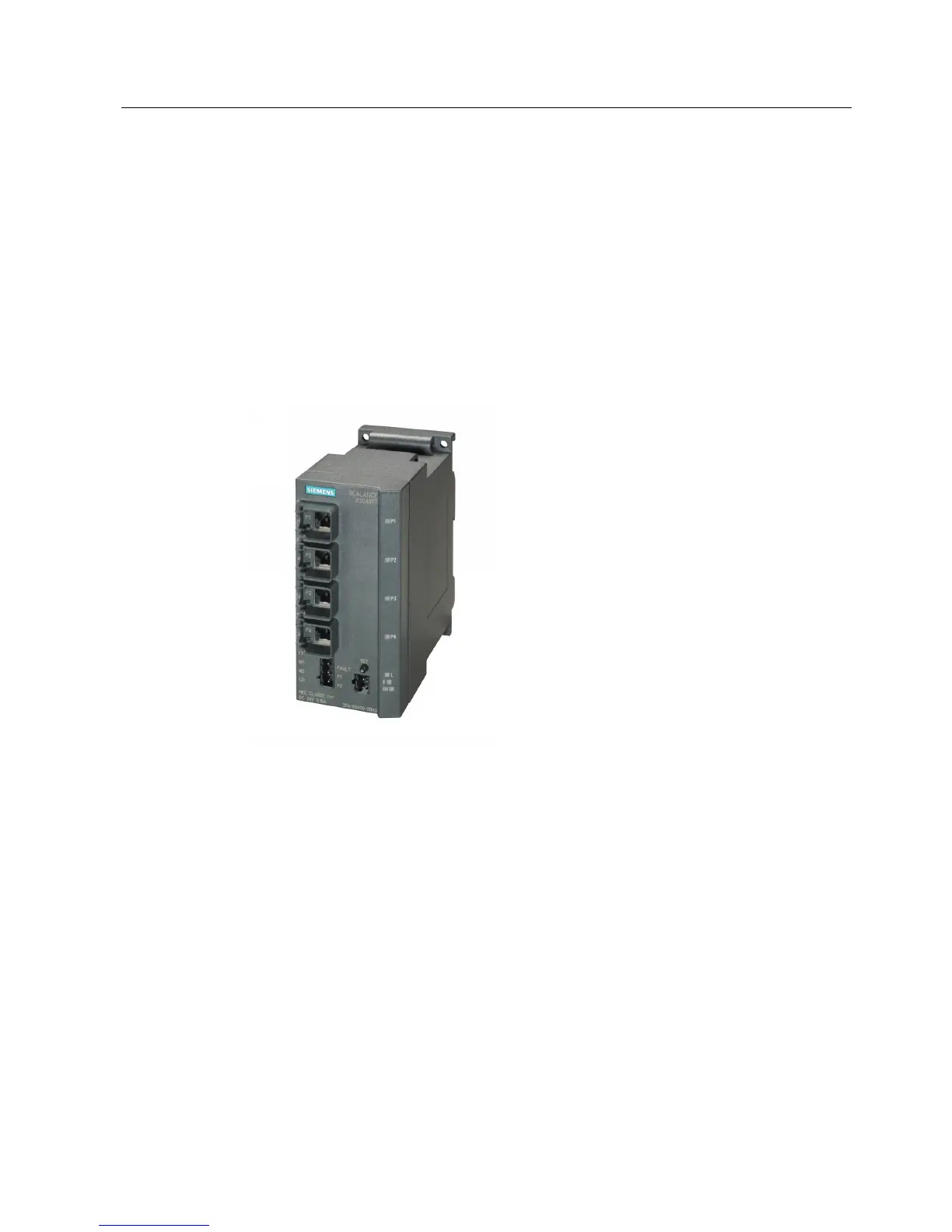

Figure 3-29 SCALANCE X204IRT
