Siemens SCALANCE X-200 User Manual

Configuration / diagnostics using remote mechanisms
6.3 Configuration using Web Based Management (WBM) and Command Line Interface (CLI)
SCALANCE X-200
Operating Instructions, 12/2011, A5E00349864-19
177
6.3.5.8 The "System Version Numbers" WBM menu
System Version Numbers
This dialog informs you about the current versions of the boot software, firmware, and
hardware.

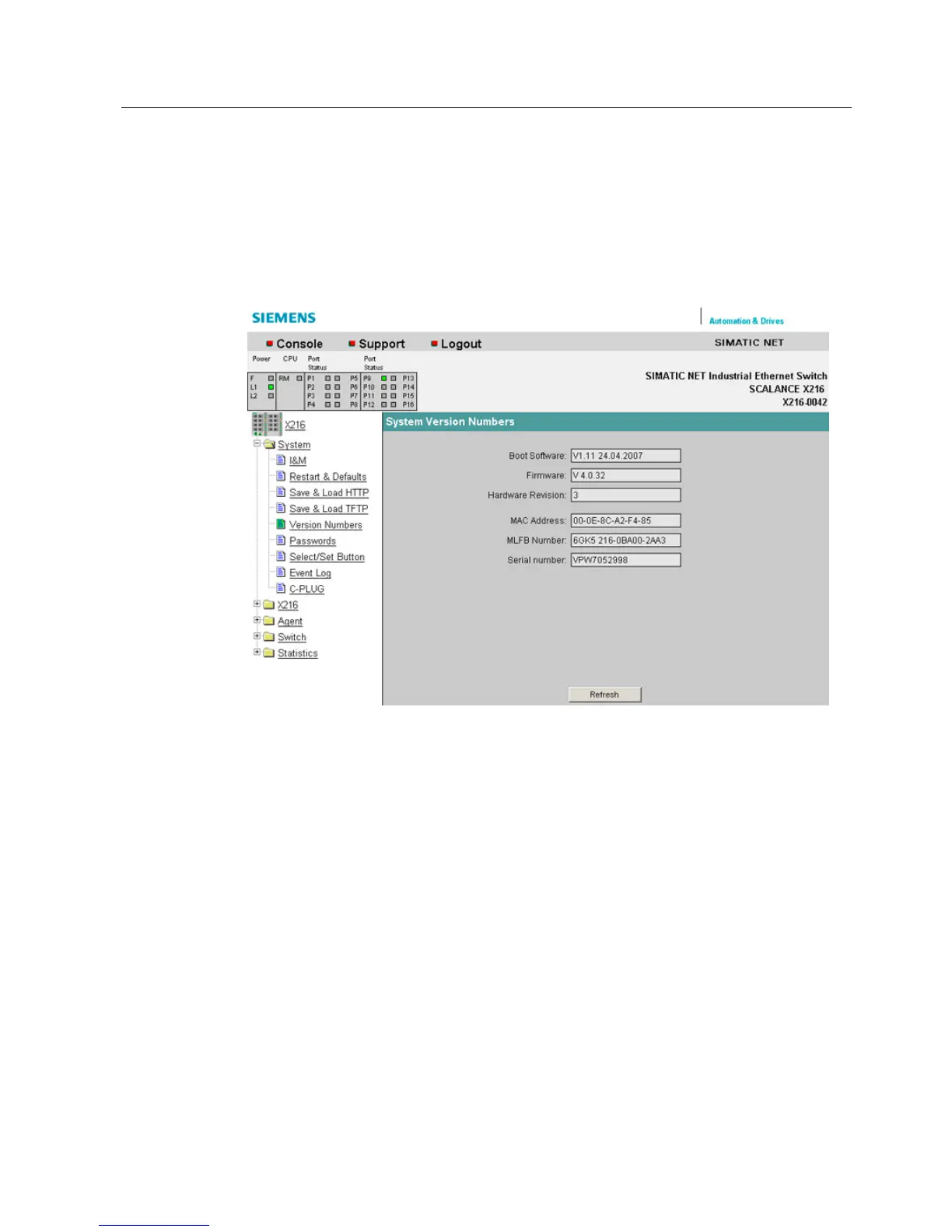

Figure 6-14 "System Version Numbers" dialog
Boot Software
The version of the boot software is displayed here. The boot software is stored permanently
on the IE Switch X-200 and is used to load new firmware.
Firmware
The version of the firmware running on the IE Switch X-200.
Hardware Revision
Displays the version of the device.
MAC Address
Displays the MAC address of the device.
MLFB Number
Displays the order number of the device.
Serial number
Displays the serial number of the device.
