Siemens SCALANCE X-200 User Manual

Configuration / diagnostics using remote mechanisms
6.3 Configuration using Web Based Management (WBM) and Command Line Interface (CLI)
SCALANCE X-200
236 Operating Instructions, 12/2011, A5E00349864-19
6.3.5.39 The "Statistics Packet Error" WBM menu
Statistics Packet Error - Counting and evaluation of transmission errors
This dialog displays information on any errors that may have occurred and allows
diagnostics for the port on which the error occurred. You can reset the error counters with
the "Reset Counters" button.
If you click on an entry in the Port column, the Statistics Packet Error Graphic is displayed for
the selected port. You then see a graphical representation of the counter value.

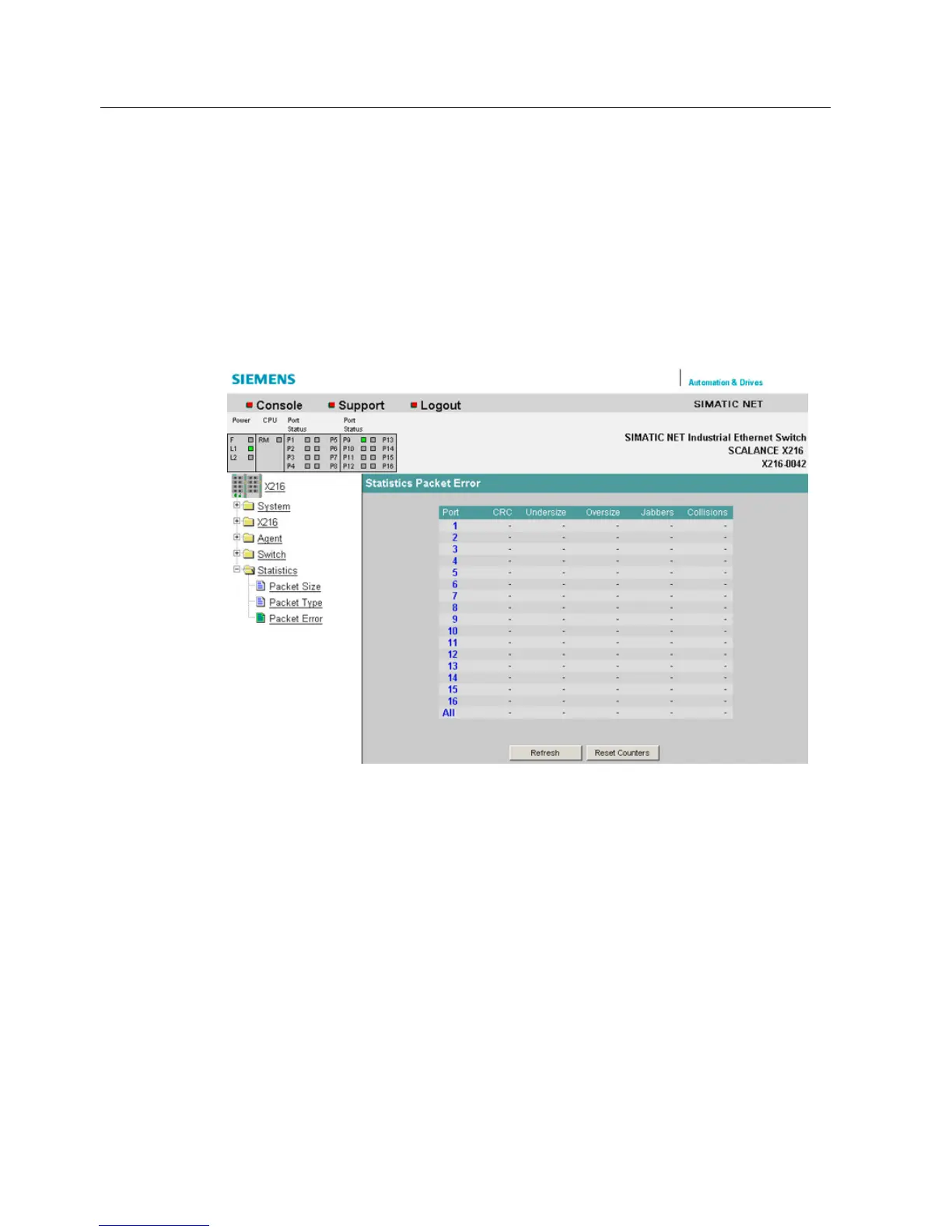

Figure 6-44 "Statistics Packet Error" dialog
The following errors can be detected:
CRC
Packets with a valid length but bad checksum.
Undersize
Packets too short with valid checksum.
Oversize
Packets too long with valid checksum.
Jabbers
Packets too long without valid checksum.
Collisions
